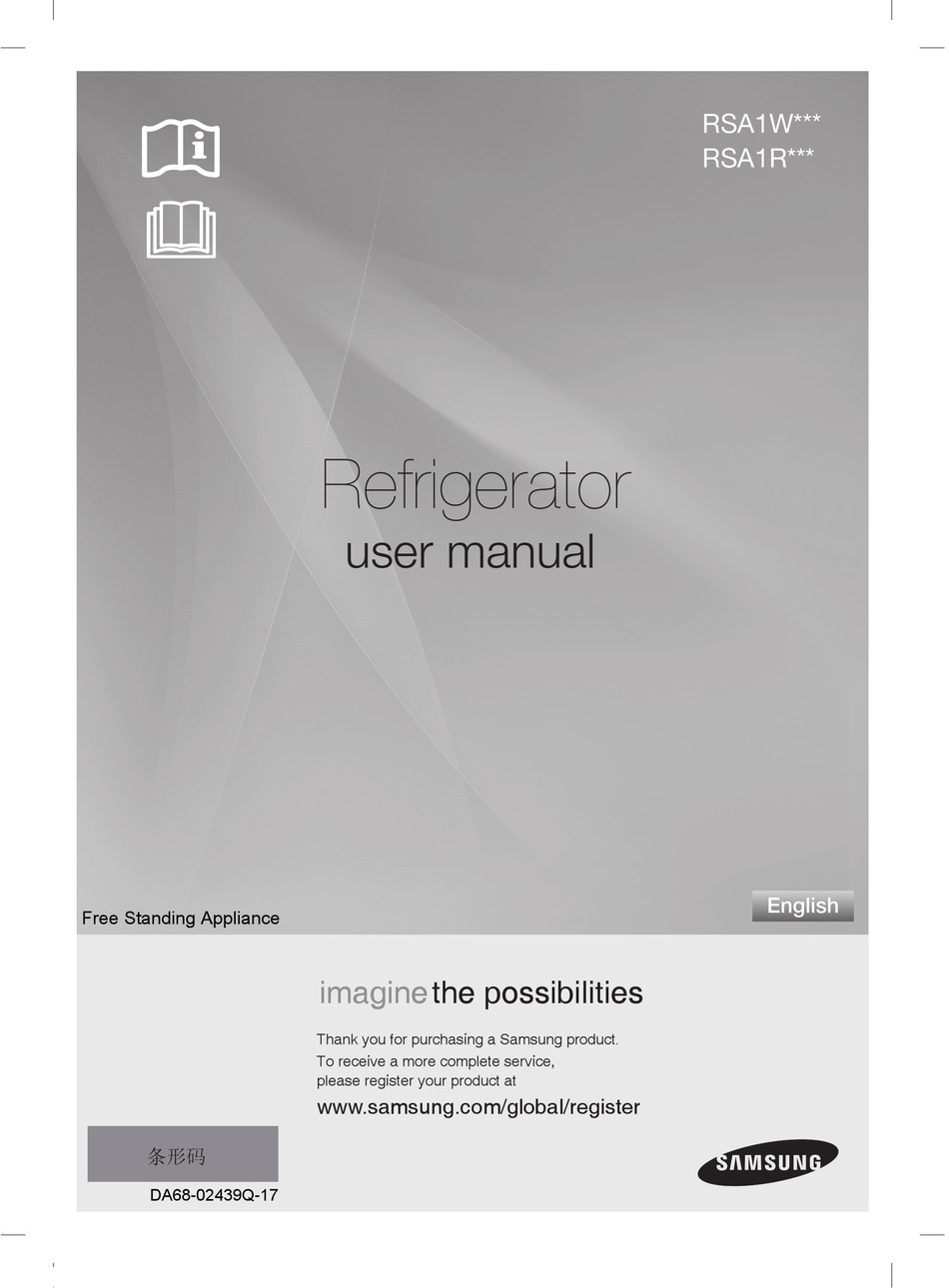

Page 1: User Manual
RSA1W*** RSA1R*** Refrigerator user manual English Free Standing Appliance imagine the possibilities Thank you for purchasing a Samsung product. To receive a more complete service, please register your product at www.samsung.com/global/register 条形码 DA68-02439Q-17... - Page 2 KEY FEATURES OF YOUR NEW REFRIGERATOR Your Samsung Side-By-Side Refrigerator comes equipped with many space-saving, innovative storage and energy-efficient features. • HIDDEN HINGES & DOOR S/W Slick-covered hidden hinges & door s/w helps Neat & Stylish square frontal view.
- Page 3 safety information SAFETY INFORMATION • Before operating the appliance, please read WARNING this manual thoroughly and retain it for your reference. • Because these following operating instructions WARNING cover various models, the characteristics of your refrigerator may differ slightly from those described in this manual.
- Page 4 safety information These warning signs are here to prevent injury to you and others. Please follow them explicitly. After reading this section, keep it in a safe place for future reference. • This refrigerator must be properly installed and located in accordance with the manual before it is used. • Use this appliance only for its intended purpose as described in this instruction manual. • We strongly recommend that any servicing be performed by a qualified individual. • R600a or R134a can be used as a refrigerant. Check the compressor label on the rear of the appliance and the rating label inside the fridge to see which refrigerant is used for the refrigerator.
- Page 5 safety information sited depends on the amount of refrigerant used. • Never start up an appliance showing any signs of damage. If in doubt, consult your dealer. • The room must be 1m in size for every 8g of R600a refrigerant inside the appliance. • The amount of refrigerant in your particular appliance is shown on the identification plate inside the appliance. • Please dispose of the packaging material for this product in an environmentally friendly manner. • Pull the power plug out of the socket before changing the interior light of the refrigerator. - Otherwise, there is a risk of electric shock. SEVERE WARNING SIGNS • Do not install the refrigerator in a damp place or WARNING place where it may come in contact with water. - Deteriorated insulation of electrical parts may cause an electric shock or fire. • Do not place this refrigerator in direct sunlight or expose to the heat from stoves, room heaters or other appliance. • Allow sufficient space to install the refrigerator on a flat surface. - If your refrigerator is not level, the internal cooling system may not work correctly. • Do not plug several appliances into the same multiple power board. The refrigerator should always be plugged into its own individual electrical which has a voltage rating that matched the rating plate. This provides the best performance and also prevents overloading house wiring circuits, which could cause a fire hazard from safety information _5...
- Page 6 safety information overheated wires. • Never unplug your refrigerator by pulling on the power cord. Always grip plug firmly and pull straight out from the outlet. - Damage to the cord may cause a short-circuit, fire and/ or electric shock. • Make sure that the power plug is not squashed or damaged by the back of the refrigerator. • Do not bend the power cord excessively or place heavy articles on it. - This constitutes a fire hazard. • Have the power cord repaired or replaced immediately by the manufacturer or its service agent if power cord has become frayed or damaged. • Do not use a cord that shows cracks or abrasion damage along its length or at either end. • If the power cord is damaged, have it replaced immediately by the manufacturer or its service agent. • When moving the refrigerator, be careful not to roll over or damage the power cord. • Do not insert the power plug with wet hands. • Unplug the refrigerator before cleaning and making repairs. • Do not use a wet or damp cloth when cleaning the plug. • Remove any foreign matter or dust from the power plug pins. - Otherwise there is a risk of fire. • If the refrigerator is disconnected from the power supply, you should wait for at least ten minutes before plugging it back. 6_ safety information...
- Page 7 • If the wall socket is loose, do not insert the power plug. - There is a risk of electric shock or fire. • The appliance must be positioned so that the plug is accessible after installation. • The refrigerator must be grounded. - You must ground the refrigerator to prevent any power leakages or electric shocks caused by current leakage from the refrigerator. • Never use gas pipes, telephone lines or other potential lightening rods as ground. - Improper use of the ground plug can result in electric shock. • Do not dissemble or repair the refrigerator by yourself. - You run risk of causing a fire, malfunction and/or personal injury. • If you smell pharmaceutical or smoke, pull out power plug immediately and contact your Samsung electronics service center. • Keep ventilation opening in the appliance enclosure or mounting structure clear of obstruction. • Do not use mechanical devices or any other means to accelerate the defrosting process, other than those recommended by the manufacturer. • Do not damage the refrigerant circuit. • Do not place or use electrical appliance inside the refrigerator/freezer, unless they are of a type recommended by the manufacturer. • The appliance is not intended for use by persons (including children) with reduced physical, sensory or safety information _7...
- Page 8 safety information mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety. • Children should be supervised to ensure that they do not play with the appliance. • Do not let children hang on the door. If not, a serious injury may occur. • Do not touch the inside walls of the freezer or products stored in the freezer with wet hands. - This may cause frostbite. • If the refrigerator is not to be used for a long period of time, pull out the power plug. - Deterioration in the insulation may cause fire. • Do not store articles on the top of the appliance. - When you open or close the door, the articles may fall and cause personal injury and/or material damage. 8_ safety information...
- Page 9 safety information CAUTION SIGNS • This product is intended only for the storage of food cAutIoN in a domestic environment. • Manufacturer’s recommended storage times should be adhered to. Refer to relevant instructions • Bottle should be stored tightly together so that they do not fall out. • Do not place carbonated or fizzy drinks in the freezer compartment. • Do not overfill the refrigerator with food. - When you open the door, an item may fall out and cause personal injury or material damage. • Do not put bottles or glass containers in the freezer. - When the contents freeze, the glass may break and cause personal injury. • Do not spray inflammable gas near the refrigerator. - There is a risk of explosion or fire. • Do not directly spray water inside or outside the refrigerator. -There is a risk of fire or electric shock. • Do not store volatile or flammable substances in the refrigerator. - The storage of benzene, thinner, alcohol, ether, LP gas and other such products may cause explosions. • If you have a long vacation planned, you must empty the refrigerator and turn it off. • Do not re-freeze frozen foods that have thawed completely. • Do not store pharmaceuticals products, scientific materials or temperature-sensitive products in the safety information _9...
- Page 10 safety information refrigerator. - Products that require strict temperature controls must not be stored in the refrigerator. refrigerator. • Do not put a container filled with water on the refrigerator. - If spilled, there is a risk of fire or electric shock. • Do not apply strong shock or excessive force onto the surface of glass. - Broken glass may result in a personal injury and/or property damage. CAUTION SIGNS FOR CLEANING • Do not insert your hands into the bottom area under the appliance. - Any sharp edges may cause personal injury. • Never put fingers or other objects into the dispenser hole and ice chute. - It may cause personal injury or material damage. • Do not use a wet or damp cloth when cleaning the plug, remove any foreign material or dust from the power plug pins. - Otherwise there is a risk of fire. • If the refrigerator is disconnected from the power supply, you should wait for at least five minutes before plugging it back. 10_ safety information...
- Page 11 safety information WARNING SIGNS FOR DISPOSAL • When disposing of this or other refrigerator/s, remove the door/door seals, door latch so that small children or animals cannot become trapped inside. • Leave the shelves in place so that children may not easily climb inside. • R600a or R134a is used as a refrigerant. Check the compressor label on the rear of the appliance or the rating label inside the fridge to see which refrigerant is used for your refrigerator. When this product contains flammable gas(Refrigerant R600a) contact your local authority in regard to safe disposal of this product. • Cyclopentane is used as a insulation blowing gas. The gases in insulation material require special disposal procedure. Please contact your local authorities in regard to the environmentally safe disposal of this product. Ensure that none of the pipes on the back of the appliances are damaged prior to disposal. The pipes shall be broke in the open space. safety information _11...
- Page 12 safety information In the event of a power failure, call the local office of cAutIoN your Electricity Company and ask how long it is going to last. Most power failures that are corrected in an hour or two will not affect your refrigerator temperatures. However, you should minimize the number of door openings while the power is off. But should the power failure last more than 24hours, remove all frozen food. For doors or lids fitted with locks and keys, the keys be kept out of the reach of children and not in the vicinity of the refrigerating appliance, in order to prevent children from being locked inside. There is protective film on the surface of some refrigerator models, which is used to protect the CAUTION refrigerator from scratches during transport. To avoid static electricity, please peel off the protective film slowly.
- Page 13 safety information ADDITIONAL TIPS FOR PROPER USAGE • Allow the appliance to stand for 2hours after installation. • To get best performance of product, - Do not place foods too closely in front of the vents at the rear of the appliance as it can obstruct free air circulation in the freezer compartment. - Wrap the food up properly or place it in airtight containers before put it into the fridge freezer. - Do not put any newly introduced food for freezing near to already frozen food. • Do not place carbonated or fizzy drinks in the freezer compartment • Please observe maximum storage times and expiry dates of frozen goods. • There is no need to disconnect the refrigerator from the power supply if you will be away for less than three weeks. But, remove all the food if you are going away for the three weeks or more. Unplug the refrigerator and clean it, rinse and dry. • Most power failures that are corrected in an hour or two will not affect your refrigerator temperatures. However, you should minimize the number of door openings while the power is off. But should the power failure last more than 24hours, remove all frozen food. • If the key is provided with refrigerator, the keys should be kept out of the reach of children and not in the vicinity of the appliance. • The appliance might not operate consistently (possibility of defrosting of contents or temperature becoming too safety information _13...
- Page 14 safety information warm in the frozen food compartment) when sited for an extended period of time below the cold end of the range of temperatures for which the refrigerating appliance is designed. • Do not store food which goes bad easily at low temperature, such as bananas, melons. • Place the ice tray at the originally provided posistion by manufacturer in order to achieve optimal ice-freezing. • Your appliance is frost free, which means there is no need to manually defrost your appliance, as this will be carried out automatically. • Temperature rising during the defrost can comply with ISO requirement. But If you want to prevent an undue rise in the temperature of the frozen food while defrosting the appliance, please wrap the frozen food in several layers of paper such as newspaper. • Any increase in temperature of frozen food during defrosting can shorten its storage life. 14_ safety information...
- Page 15 safety information SAVING ENERGY TIPS • Install the appliance in a cool, dry room with adequate ventilation. • Ensure that it is not exposed to direct sunlight and never put it near a direct source of heat (radiator, for example). •...
-
Page 16: Table Of Contents
Removing the refrigerator doors Reattaching the refrigerator doors Leveling the refrigerator SETTING UP YOUR SIDE-BY-SIDE Making minor adjustments to the doors REFRIGERATOR OPERATING THE SAMSUNG Setting up the refrigerato r SIDE-BY-SIDE REFRIGERATOR Operating the refrigerator Using the digital displa y Controlling the temperature... -
Page 17: Setting Up Your Side-By-Side Refrigerator
GETTING READY TO INSTALL THE REFRIGERATOR Congratulations on the purchase of your Samsung Side-By-Side Refrigerator. We hope you will enjoy the many state-of-the-art features and efficiencies that this new appliance has to offer. Selecting the best location for the refrigerator •... -
Page 18: Setting Up Your Side-By-Side Refrigerator
setting up your side-by-side refrigerator REMOVING THE REFRIGERATOR DOORS If your entrance won’t allow the refrigerator to pass easily through it, you can remove the doors. 1. Removing the Front Leg Cover First, open both the freezer and refrigerator doors, and then take off the front leg cover by turning the three screws counter-clockwise. - Page 19 setting up your side-by-side refrigerator 2. Removing the freezer door A few things to mention first. • Make sure that you lift the door straight up so the hinges are not bent or broken. • Place doors on a protected surface to prevent scratching or damage. 1.
- Page 20 Removing the Fridge Door 1. With the door closed, remove the upper hinge cover using a screwdriver. and the ground screw 2. Remove hinge screws by turning counter-clockwise, and take off the upper hinge . Be careful that the door does not fall on you as you are removing it. 3.
-
Page 21: Reattaching The Refrigerator Doors
setting up your side-by-side refrigerator REATTACHING THE REFRIGERATOR DOORS Once you have safely placed your refrigerator where you plan for it to stay, it is time to put the doors back on. Reattaching the Freezer Door 1. Insert the upper hinge shaft into the hole on the corner of the freezer door . - Page 22 REATTACHING THE FRIDGE DOOR 1. Fit the hole in the corner of the fridge door over the lower hinge 2. Insert the upper hinge shaft into the hole on the hinge Make sure the hinge is level between the upper hinge hole and the hole on the top of the cabinet .
- Page 23 setting up your side-by-side refrigerator Reattaching the Front Leg Cover Before attaching the cover, check water connector for leakage. Replace the front leg cover by turning the three screws clockwise, as shown in the figure. Front Leg Cover Screw setting up _...
-
Page 24: Leveling The Refrigerator
setting up your side-by-side refrigerator LEVELING THE REFRIGERATOR Now that the doors are back on the refrigerator, you will want to make sure the refrigerator is level so you can then make final adjustments. If the refrigerator is not level, it will not be possible to get the doors perfectly even. -
Page 25: Making Minor Adjustments To The Doors
setting up your side-by-side refrigerator MAKING MINOR ADJUSTMENTS TO THE DOORS Remembe , a leveling r efrigerator is necessary for getting the doors perfectly eve n. If you need help, review the previous section on leveling the refrigerator. When the door of the freezer is higher than the fridge Adjustment part In the case of the process to correct the imbalance is the same. -
Page 26: Operating The Samsung Side-By-Side Refrigerator
If you have any further questions, contact your Samsung Electronics service center. 1. Place the refrigerator in an appropriate location with reasonable clearance between the wall and the refrigerator. -
Page 27: Operating The Refrigerator
OPERATING THE REFRIGERATOR USING THE CONTROL PANEL (Vacation) (Power Cool) When not in use the temperature, Dual Flow and Filter (green) display will turn off, and press the key or door open will turn on again,this is normal. Speeds up the time needed to freeze products in the freezer. This can POWER FREEZER be helpful if you need to quickly freeze items that spoil easily or if the BUTTON... -
Page 28: Using The Digital Display
Operating the SAMSUNG side-by-side refrigerator USING THE DIGITAL DISPLAY “88” segment on Freezer part indicates the current Freezer temperature. “88” segment on Fridge part indicates the current Fridge temperature. (Vacation) (Power Cool) Power Freeze This icon will light up when you activate the “Power Freeze” feature. -
Page 29: Controlling The Temperature
CONTROLLING THE TEMPERATURE Controlling the Freezer temperature The freezer temperature can be set between -14°C (8°F) and -25ºC (-14°F) to suit your particular needs. Press the Freezer button repeatedly until the desired temperature is shown in the temperature display. Keep in mind that foods like ice cream may melt at -16ºC (4°F). The temperature display will move sequentially from -14°C (8°F) and -25ºC (-14°F). -
Page 30: Using The Ice Box And Cold Water Dispenser
SAMSUNG side-by-side refrigerator USING THE ICE BOX AND THE COLD WATER DISPENSER Using the Ice Box 1. When the freeze temperature get zero degre below, you can use Ice Box to make ice. 2. Taking out Ice Box ① from shelf ② first, putting clean water (water temperature not warm) into it, and not take too much water into the box, pushing the Ice Box into the shelf along rails. -
Page 31: Shelves And Bins
SHELVES AND BINS Freezer Lamp Cover Ice Maker Box Ice Maker Box ptional ptional Glass Shelves Door Bins Drawers Front Leg Cover Fridge Lamp Cover Dairy Bin Water Tank Tray Utility Glass Shelves Door Bins Vegetable &Fruit Drawers operating _... -
Page 32: Storing Food
STORING FOOD Storing Food in the Freezer The Samsung Side-By-Side Refrigerator has been designed to provide you with maximum spacesaving features and functions. Here are some of the customized compartments we have created to keep your food fresher, longer. Remember, in order to prevent odor penetration to the ice, stored food should be wrapped securely and as airtight as possible. -
Page 33: Storing Food In The Freezer
Storing Food in the Freezer Can be used to store all types of frozen SHELVES food. Can be used for small packages of frozen DOOR BINS food. Best used to store meats or dry foods. Stored food should be wrapped securely DRAWERS using foil or other suitable wrapping materials or containers. -
Page 34: Removing The Freezer Accessories
SAMSUNG side-by-side refrigerator REMOVING THE FREEZER ACCESSORIES Cleaning and rearranging the interior of the freezer is a snap. 1. Remove the Glass Shelf by pulling the shelf out as far as it will go. Then, gently lift it up and remove it. -
Page 35: Removing The Fridge Accessories
SAMSUNG side-by-side refrigerator REMOVING THE FRIDGE ACCESSORIES 1. Remove the Spill Proof Glass Shelf by pulling the shelf out as far as it will go. Then, gently lift it up and gently remove it. In case it does not have hooks itself in the back... -
Page 36: Cleaning The Refrigerator
SAMSUNG side-by-side refrigerator CLEANING THE REFRIGERATOR Caring for your Samsung Side-By-Side Refrigerator prolongs the life of your appliance and helps keep it odor and germ-free. Cleaning the Interior Clean the inside walls and accessories with a mild detergent and then wipe dry with a soft cloth. -
Page 37: Changing The Interior Lights
SAMSUNG side-by-side refrigerator CHANGING THE INTERIOR LIGHTS Do not replace LED lamp privately and please contact the specialized repair staff if necessary. W ARNING And make it sure that the new LED lamp is the same as the old one. -
Page 38: Trouble Shooting
trouble shooting PROBLEM SOLUTION The refrigerator does not • Check that the power plug is properly connected. work at all or it does not • Is the temperature control on the display panel set to the correct chill sufficiently. temperature? Try setting it to a lower temperature. •... - Page 39 Correct Disposal of This Product (Waste Electrical & Electronic Equipment) (Applicable in countries with separate collection systems) English This marking on the product, accessories or literature indicates that the product and its electronic accessories (e.g. charger, headset, USB cable) should not be disposed of with other household waste at the end of their working life.
- Page 40 Contact SAMSUNG WORLD WIDE If you have any questions or comments relating to Samsung products, please contact the SAMSUNG customer care center. COUNTRY CALL Web site AUSTRALIA 1300 362 603 www.samsung.com/au/support Bogotá en el 600 12 72 COLOMBIA Sin costo en todo el pais 01 8000 112 112 www.samsung.com/co...
