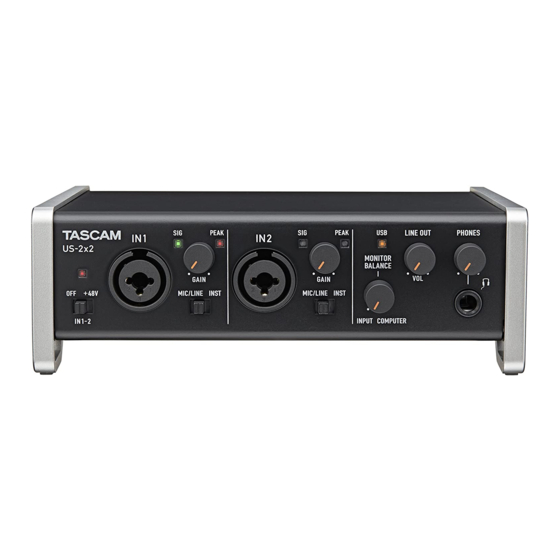

Tascam US-2x2 Owner's Manual
Hide thumbs
Also See for US-2x2:
- Owner's manual (88 pages) ,
- Reference manual (26 pages) ,
- Owner's manual (88 pages)
Subscribe to Our Youtube Channel
Related Manuals for Tascam US-2x2
Summary of Contents for Tascam US-2x2
- Page 1 D01236100C US-2x2 US-4x4 USB Audio/MIDI Interface OWNER'S MANUAL ENGLISH MODE D’EMPLOI FRANÇAIS MANUAL DEL USUARIO ESPAÑOL BEDIENUNGSANLEITUNG DEUTSCH MANUALE DI ISTRUZIONI ITALIANO 取扱説明書 日本語...
- Page 2 • TASCAM is a trademark of TEAC CORPORATION, registered in the U.S. and other countries. http://tascam.jp/ • Microsoft, Windows, Windows 7, Windows 8 and 〒206-8530 東京都多摩市落合1-47 Windows Media are either registered trademarks or trademarks of Microsoft Corporation in the TEAC AMERICA, INC.
-
Page 3: Declaration Of Conformity
14 Refer all servicing to qualified service personnel. Servicing is required when the apparatus has been damaged in any way, such as power-supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus has TASCAM US-2x2/US-4x4... -
Page 4: Table Of Contents
Apple iOS devices ...............15 Supported audio drivers ............15 (d) The crossed out wheeled dust bin General................... 16 symbol indicates that electrical and electronic equipment must be collected Dimensional drawings ............. 16 and disposed of separately from household waste. TASCAM US-2x2/US-4x4... -
Page 5: Introduction
Introduction Precautions for placement and use Thank you for your purchase of the TASCAM US-2x2/ • The operating temperature range of this unit is US-4x4 USB Audio/MIDI Interface. 5–35 °C. Before connecting and using this unit, please take • Do not install this unit in the following types time to read this manual thoroughly to ensure you of locations. -
Page 6: Cleaning The Unit
The SIG indicators light green when signals (of These input jacks are XLR/TRS combo jacks on at least −32 dBFS) are input through the IN1/IN2 the US-2x2 and separate XLR and standard TRS jacks (and US-4x4 IN3/IN4 jacks). jacks on the US-4x4. -
Page 7: Rear Panel
Panel. For details, see “5 Line Output items” in 2.0.) “6 – Settings Panel settings” of the Reference u DC IN 5V connector (US-2x2 only) Manual. To use this unit when connected to an iOS device, r MIDI OUT connector... -
Page 8: Installing The Settings Panel For Mac Os X
Depending on the computer’s settings, the downloaded zip file might not have been uncompressed automatically. In this case, uncompress the zip file first and then double- click the disk image file. When the installer starts, click the “Continue” button. TASCAM US-2x2/US-4x4... -
Page 9: Uninstalling The Dedicated Software
Delete “US-2x2_US-4x4_Settings Panel” from the NOTE Applications folder to complete uninstallation. Normally, there is no need to uninstall the dedicated software. Follow these procedures if a problem occurs or you no longer intend to use the unit with the computer. TASCAM US-2x2/US-4x4... -
Page 10: Connecting The Power
US-2x2 Connecting the power Normally, when a US-2x2 is connected to a computer, it will operate using USB bus power, so a separate US-4x4 power supply is not necessary. However, when Use the included 12V AC adapter (GPE248-120200-Z) using the unit connected to an iOS device or when... -
Page 11: Making Settings On The Settings Panel Screen
USB are output. 8 Windows For details about other settings, see “Settings Panel screen” in “6 – Using the Settings Panel” of the From “All Apps” (All Programs), select “TASCAM US-2x2 Reference Manual. & US-4x4 Settings Panel” under TASCAM. Connecting other equipment 8 Mac OS X Select “TASCAM US-2x2 &... -
Page 12: Connecting With Ios Devices
Connecting with iOS devices about the operating environment and details about the trouble. US-2x2: You will need a Lightning to USB Camera Adapter and an AC adapter (sold separately). Operating environment US-4x4: You will need a Lightning to USB Camera •... - Page 13 Apple menu. Right-click “Computer” and select Open “Sound”. “Properties”. On the Output tab, select “US-2x2” or “US-4x4”. Click “Advanced system settings”. After completing the setting, restart the Click “Settings” in the “Performance” section computer and check the sound of playback.
-
Page 14: Specifications
Connector: 6.3mm (1/4") standard stereo jack US-2x2: IN 1-2 Maximum output US-4x4: IN 1-4 US-2x2: 18 mW + 18 mW or higher (THD+N Connectors: XLR-3-31 equivalent (1: GND, 2: HOT, 0.1% or less, into 32 Ω load) 3: COLD) US-4x4: 45 mW + 45 mW or higher (THD+N Input impedance: 2.2 kΩ... -
Page 15: Computer System Requirements
This does not guarantee operation with all computers that meet the above requirements. Even computers that meet the same system requirements might have processing capabilities that differ according to their settings and other operating conditions TASCAM US-2x2/US-4x4... -
Page 16: General
US-2x2: Supplied by computer over USB* US-4x4: Dedicated AC adapter (GPE248- 120200-Z), DC12V *When using with an iOS device, a separate AC adapter designed for use with this unit (TASCAM PS-P520, DC5V) is necessary. Power consumption US-2x2: 2.5 W US-4x4: 5 W External dimensions (width ×... - Page 17 Payment adquirido. En caso de garantía, debe dirigirse al of shipping charges is discussed in the next If you require repair services for your TASCAM establecimiento donde adquirió el aparato. section of this warranty.
- Page 18 保証書 WARRANTY / Model / 型名 Owner’s name / お名前 Serial No. / 機番 Address / ご住所 Date of purchase / お買い上げ日 Dealer’s name / 販売店 Dealer’s address / 住所 http://teac-global.com/ Memo / 修理メモ Printed in China...
- Page 19 D01236020C US-2x2 US-4x4 USB Audio/MIDI Interface REFERENCE MANUAL Before connecting this unit to a computer, you must download and install dedicated software on the computer.
- Page 20 6 – Using the Settings Panel ......13 Opening the Settings Panel ..........13 Settings Panel screen ...............13 7 – Standalone Mode ........15 Overview ..................15 Settings in standalone mode ..........15 Settings Panel settings ..........15 8 – Application Guide ........16 DAW software ................16 TASCAM US-2x2/US-4x4...
-
Page 21: Introduction
Failure to follow these instructions could result in injury, damage to equipment or lost recording data, for example. CAUTION When using a US-2x2 that is connected to a computer, it will operate using USB bus power. Using the TEAC Global Site... -
Page 22: Names And Functions Of Parts
GAIN knobs IN1/IN2 (BALANCED/UNBALANCED) jacks Use to adjust the input levels of the IN1/IN2 jacks (and These input jacks are XLR/TRS combo jacks on the US-2x2 US-4x4 IN3/IN4 jacks). and separate XLR and standard TRS jacks on the US-4x4. Adjust these so that the PEAK indicators do not light red. -
Page 23: Rear Panel
(Supports USB 2.0.) CAUTION • When using a US-2x2 that is connected to a computer, it will receive power from the computer's USB port. Depending on the computer, the USB port might not be able to supply enough power to operate the unit. -
Page 24: Installation
“Run” or “Yes” button. Apple iOS devices 5. Next, select the desired language and click the “OK” button. Supported operating systems iOS 7 or later Supported audio drivers Windows: ASIO2.0, WDM, MIDI Mac: Core Audio, Core MIDI TASCAM US-2x2/US-4x4... -
Page 25: Installing The Mac Os X Settings Panel
Click “Skip obtaining driver software from Windows Update.” to stop the search. TASCAM US-2x2/US-4x4... -
Page 26: Working With Gatekeeper
When the Gatekeeper setting is not “Allow applications downloaded from: the Mac App Store” ‘“US-2x2_US-4x4 Installer.dmg” is an application downloaded from the Internet. Are you sure you want to open it?” might appear as a security warning message. In this case, click the “Open” button. TASCAM US-2x2/US-4x4... -
Page 27: Uninstalling The Dedicated Software
When a “Security Warning” or “User Account Control” screen appears, click the “Run” or “Yes” button. 2. Next, the Installshield Wizard will launch. Click the “Next” button. 3. When the “Program Maintenance” screen opens, select “Remove” and click the “Next” button. TASCAM US-2x2/US-4x4... -
Page 28: Preparation
US-2x2 Do not use the adapter if there is anything abnormal about Normally, when a US-2x2 is connected to a computer, it will the plug after changing it. Use when the plug is abnormal operate using USB bus power, so a separate power supply is could cause fire or electric shock. -
Page 29: Connections
• The phantom power switch changes the setting for both Examples of connections to a US-4x4 (front) US-2x2 input channels (all four US-4x4 input channels) simultaneously. Do not turn phantom power +48V when connecting a mic that does not require phantom power. -
Page 30: Monitor Speakers
You will need to prepare an Apple genuine Lightning to the front of the unit. USB Camera Adapter (sold separately. NOTE DC5V TASCAM PS-P520 AC adapter (sold separately) The same signals are output from both the 1 and 2 jacks of the US-4x4. CAUTION Before connecting headphones, minimize the volume with the PHONES knob. -
Page 31: Using The Settings Panel
â at the bottom left of the Start screen) to open the Apps screen. On this screen, click the “TASCAM US-2x2 & US-4x4 Settings Panel” item under “TASCAM” to open the Settings Panel. • In Windows 8, select “TASCAM US-2x2 & US-4x4 Settings Mac Settings Panel screen Panel”... - Page 32 (above −60 dBFS) has been detected for 30 minutes, the unit will turn itself off (start standby) automat- ically. Options “ON” (default) : The automatic power saving function is on. “OFF” : The automatic power saving function is off. TASCAM US-2x2/US-4x4...
-
Page 33: Standalone Mode
This function is convenient when you want to practice an instrument without recording, for example. However, when using US-2x2 in standalone mode, a TASCAM PS-P520 DC5V AC adapter (sold separately), which is designed for use with this unit, is necessary. -
Page 34: Application Guide
When using any other DAW software, consult its operation manual. 9. On the “Playback” page, right-click “Speakers TASCAM US-2x2” (or “Speakers TASCAM US-4x4”), and click “Set as Default Device” in the pop-up menu that appears. Windows Media Player When you do this, the green check mark (“4”) appears next to “Speakers TASCAM US-2x2”... -
Page 35: Mac Os X And Itunes
“Audio MIDI Setup”. Then open the “Audio Devices” window. 2. Click “TASCAM US-2x2 Audio Device” (or “TASCAM US-4x4 Audio Device”) to select it and right-click or control-click it. Then, click “Use this device for sound output” in the pop-up menu. -
Page 36: Midi Implementation Chart
All notes off — — Other Thru Active sense — — Reset — — Notes Mode 1: OMNI ON, POLY Mode 2: OMNI ON, MONO –: YES Mode 3: OMNI OFF, POLY Mode 4: OMNI OFF, MONO —: NO TASCAM US-2x2/US-4x4... -
Page 37: Troubleshooting
The operating system being used might not be compatible 2. Open “Sound”. with the software that you are trying to install. Check the 3. On the “Output” tab, select “US-2x2” or “US-4x4”. compatible operating system of the software you are trying to install again. - Page 38 Please refer to the SONAR LE help menu for instructions about using the application. Ableton Live Lite support Our company does not provide support for Ableton Live Lite. Please refer to the Ableton Live Lite help menu for instructions about using the application. TASCAM US-2x2/US-4x4...
-
Page 39: Specifications
MIN, JEITA) Distortion 0.003% or less ( MIC/LINE input to LINE OUT, 1kHz sine wave, at nominal input level and maximum output level, JEITA) Crosstalk 95 dB or more ( MIC/LINE input to LINE OUT, 1 kHz, JEITA) TASCAM US-2x2/US-4x4... -
Page 40: Computer System Requirements
(Windows Vista and Windows XP are not supported) External dimensions Computer hardware requirements US-2x2 : 186 × 65 × 160 mm (width × height × depth) Windows computer with a USB 2.0 port US-4x4 : 296 × 65 × 160 mm (width × height × depth) - Page 41 TASCAM US-2x2/US-4x4...
- Page 42 TEAC CORPORATION http://tascam.jp/ Phone: +81-42-356-9143 1-47 Ochiai, Tama-shi, Tokyo 206-8530 Japan TEAC AMERICA, INC. http://tascam.com/ Phone: +1-323-726-0303 1834 Gage Road, Montebello, California 90640 USA TEAC MEXICO, S.A. de C.V. http://teacmexico.net/ Phone: +52-55-5010-6000 Río Churubusco 364, Colonia Del Carmen, Delegación Coyoacán, CP 04100, México DF, México TEAC UK LIMITED http://tascam.eu/...
