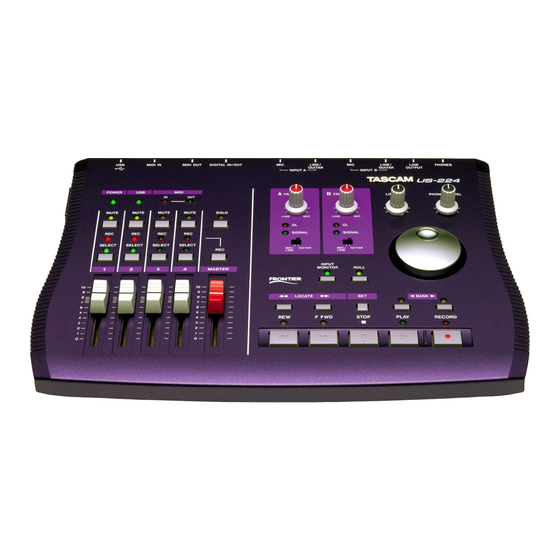

Tascam US-224 Installation Notes

I
NSTALLATION
The US-224 drivers are available on the CD as executable installers. You'll find two executable
installer files on the disk, labeled as "Win 9x" (for Windows 98 Second Edition and Millennium
Edition) and "Win2K" (for Windows 2000 and Windows XP).
Note that we have also included the individual driver files as a ZIP file, for users wishing to install
via Windows Hardware Manager. However, we recommend using the installers, as they will also
locate and uninstall any files pertaining to older versions of the US-428 drivers.

To install under Win98SE or ME:

Note: The US-224 will run under Win98 SE (Second Edition) or ME (Millennium Edition). Due to
its limited USB capabilities, First Edition Win98 is not recommended.
Note: Run the Installer with US-224 turned OFF.
Double click on the executable file US224_Win9x_Install_3_08.exe. (The purple US-224
icon). The installer will run.
Click the "Setup" button. The Welcome dialog box will appear.
Click the "Next" button. The driver files will be installed to your hard drive.
In some cases, Add Hardware Wizard may ask for the file "US224WDM.SYS". Should
this occur, click Browse and direct it to the path Windows/System32/Drivers.
In some cases, Add Hardware Wizard may ask for your Win98 CD-ROM if it is unable to
find all the needed system files. We suggest you have it handy.
The Setup Complete dialog will appear. Click "Yes, I want to restart my computer",
followed by the Finish button. The computer will reboot.
Connect the US-224 to the computer, plug it in, and turn it on. The Windows plug-n-play
will notice a new USB device and start the Add New Hardware wizard, which will find the
needed files on its own. This will take about 30-60 seconds.
The drivers are now installed and the US-224 is ready to operate.
N F US-224 W
OTES OR
D
INDOWS RIVERS
