OWNER'S MANUAL:
Single Side Burner
Models: JGSB-LP (Propane)
JGSB-NG (Natural Gas)
Important Notice
Please read ALL safety notices on PP.3 before
assembling or operating this Side Burner.
Version: AUG15
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the JGSB-LP and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Jackson Grills JGSB-LP

Summary of Contents for Jackson Grills JGSB-LP

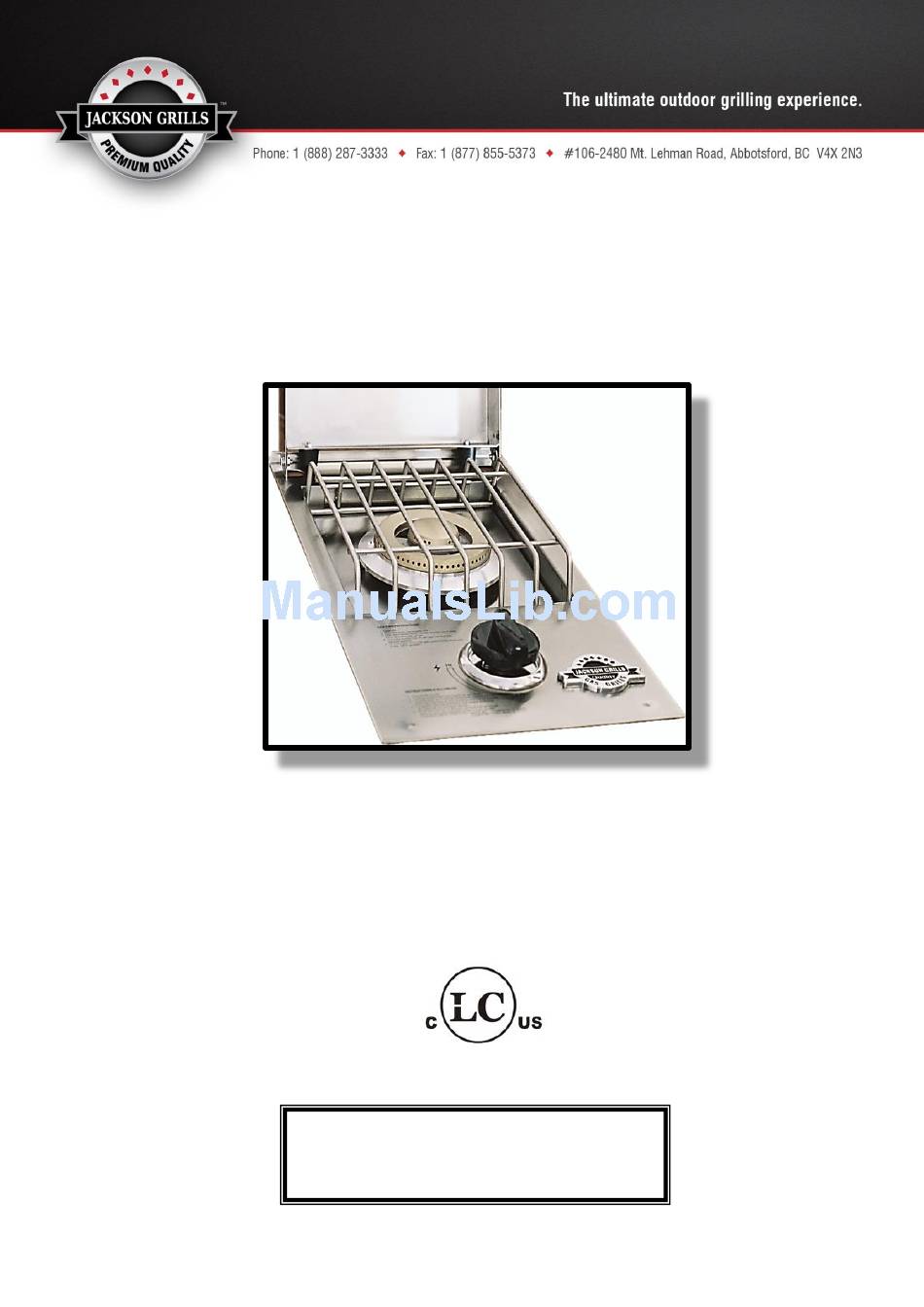

  • Page 1 OWNER’S MANUAL: Single Side Burner Models: JGSB-LP (Propane) JGSB-NG (Natural Gas) Important Notice Please read ALL safety notices on PP.3 before assembling or operating this Side Burner. Version: AUG15...

  • Page 2: Table Of Contents

    TABLE OF CONTENTS Certification & Testing: Safety Warnings: Package Contents Checklist: Exploded Diagram & Parts List: Installation Instructions: (Cart Version) Leak Testing: Lighting Instructions: Gas Conversion: Warranty: CERTIFICATION & TESTING This side burner has been tested by Labtest Certification (LC) and has been tested to ANSI Z21.58a-1198 & CGA 16a-M98, and Certified for Canada and the USA.

  • Page 3: Safety Warnings

    !SAFETY WARNINGS! IMPORTANT: Please read and understand all warnings and precautions before using your gas grill. !DANGER! !WARNING! If you smell gas: 1. Do not store or use gasoline or 1. Shut off gas to the appliance. other Flammable liquids in the 2.

  • Page 4: Package Contents Checklist

    Inspect fuel supply hose for damage before each use. If excessive wear, abrasion, or cracks are present, the hose MUST be replaced with a genuine Jackson Grills replacement part, prior to using this outdoor cooking gas appliance (Contact your nearest dealer for assistance).

  • Page 5: Exploded Diagram & Parts List

    EXPLODED DIAGRAM & PARTS LIST: Lid with Handle: JH-000 Shoulder Bolt: JH-001 Electrode: JE-14 Cook Grid: JG-19 Natural Gas Regulator: JF-99 (NG units ONLY) Burner: JB-22 Venturi & Orifice: JF-85 Burner Support Plate: JB-23 Gas Valve: JF-02 Control Knob: JK-14 Burner Fuel Line: JF-84 Chrome Bezel: JK-17 Manifold: JF-80...
  • Page 6 STEP 2 Drop the Side Burner assembly onto the rails that formerly supported the cutting board. This may be a tight fit; if so, please bend the rails down slightly using a pair of pliers (Fig. 1). This adjustment will allow the side burner to drop into place. Figure 1 Bend formed rails down STEP 3...

  • Page 7: Leak Testing

    LEAK TESTING: STEP 1 Figure 7 Mix a solution of liquid dish soap and water (or obtain profession leak detector liquid). Turn on Gas. STEP 2 Spray or brush detector liquid thoroughly on all fuel line connections (Fig. 7). If soap bubbles are generated at any connection, tighten the fitting and re-test.

  • Page 8: Limited Warranty

    Limited Warranty: MODELS: JGSB-LP & JGSB-NG Side Burner Jackson Grills warrants the materials and workmanship in this accessory to be free of defects for two (2) year from the date of purchase, to the original purchaser only. Two (2) Year Limited Warranty Subject to the following Conditions & Limitations: NOTE1: Shipping and Labor Charges are NOT covered under this warranty.
