Panel Description; Front Panel - Icom IC-F5020 Series Instruction Manual

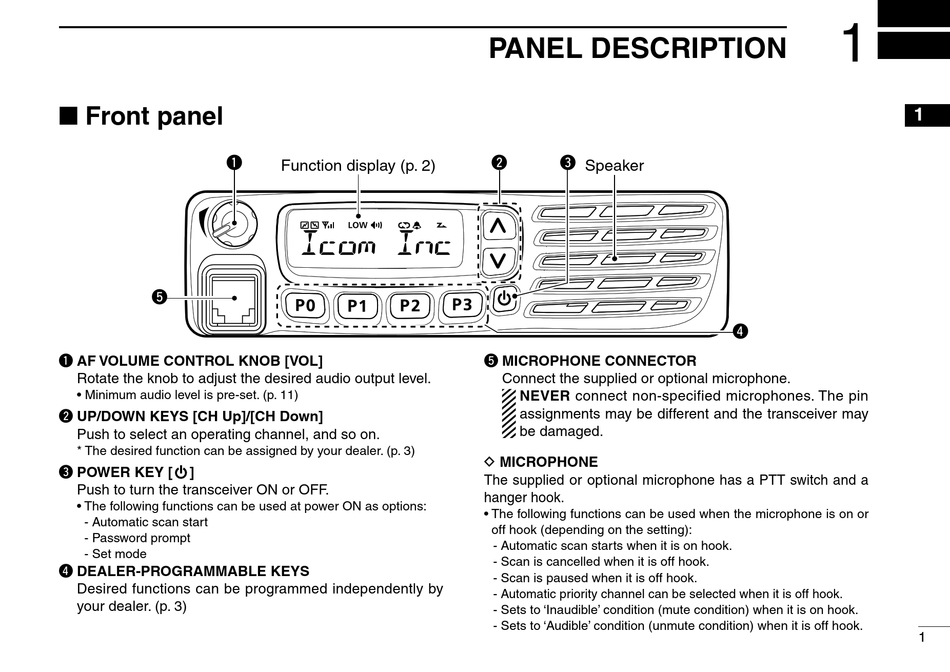

■ Front panel

q
t
q AF VOLUME CONTROL KNOB [VOL]
Rotate the knob to adjust the desired audio output level.
• Minimum audio level is pre-set. (p. 11)
w UP/DOWN KEYS [CH Up]/[CH Down]
Push to select an operating channel, and so on.
* The desired function can be assigned by your dealer. (p. 3)
e POWER KEY [ ]
Push to turn the transceiver ON or OFF.
• The following functions can be used at power ON as options:
- Automatic scan start
- Password prompt
- Set mode
r DEALER-PROGRAMMABLE KEYS
Desired functions can be programmed independently by
your dealer. (p. 3)
Function display (p. 2)

PANEL DESCRIPTION

w e
Speaker
t MICROPHONE CONNECTOR
Connect the supplied or optional microphone.
NEVER connect non-specified microphones. The pin
assignments may be different and the transceiver may
be damaged.
D MICROPHONE
The supplied or optional microphone has a PTT switch and a
hanger hook.
• The following functions can be used when the microphone is on or
off hook (depending on the setting):
- Automatic scan starts when it is on hook.
- Scan is cancelled when it is off hook.
- Scan is paused when it is off hook.
- Automatic priority channel can be selected when it is off hook.
- Sets to 'Inaudible' condition (mute condition) when it is on hook.
- Sets to 'Audible' condition (unmute condition) when it is off hook.
1
r
1
1
