Lighting System - RIEJU MRT 50 Chassis Workshop Manual

60
Electrical system

5. LIGHTING SYSTEM

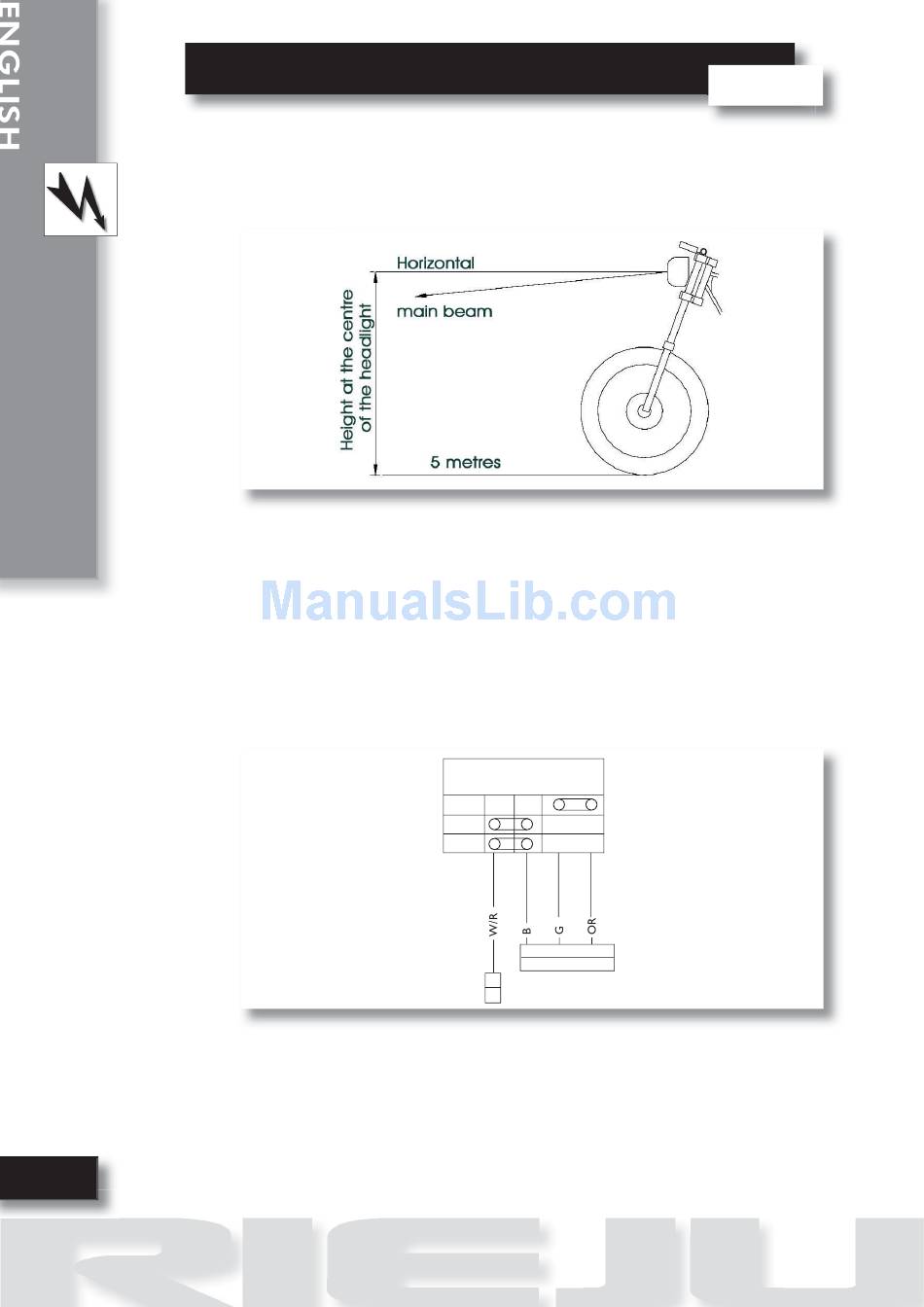

Adjusting the height of the front headlight beam
With the rider seated on the machines, the headlight beam should be adjusted in such a way
that the main beam is situated below the headlight horizontal.
In case of having to change a bulb, avoid touching the inside of the headlight with the hands.
In addition, the new bulb should be handled with a clean cloth.
Checking the switches:
Checking the ignition switch
Use a meter to check that there is a circuit between the ignition switch connector cables.
ON position – circuit between cables
Colour: GREEN and ORANGE
OFF position – circuit between cables.
Colour: WHITE/RED and BLUE
IGNITION
SWITCH
ON
OFF
LOCK
Chassis
