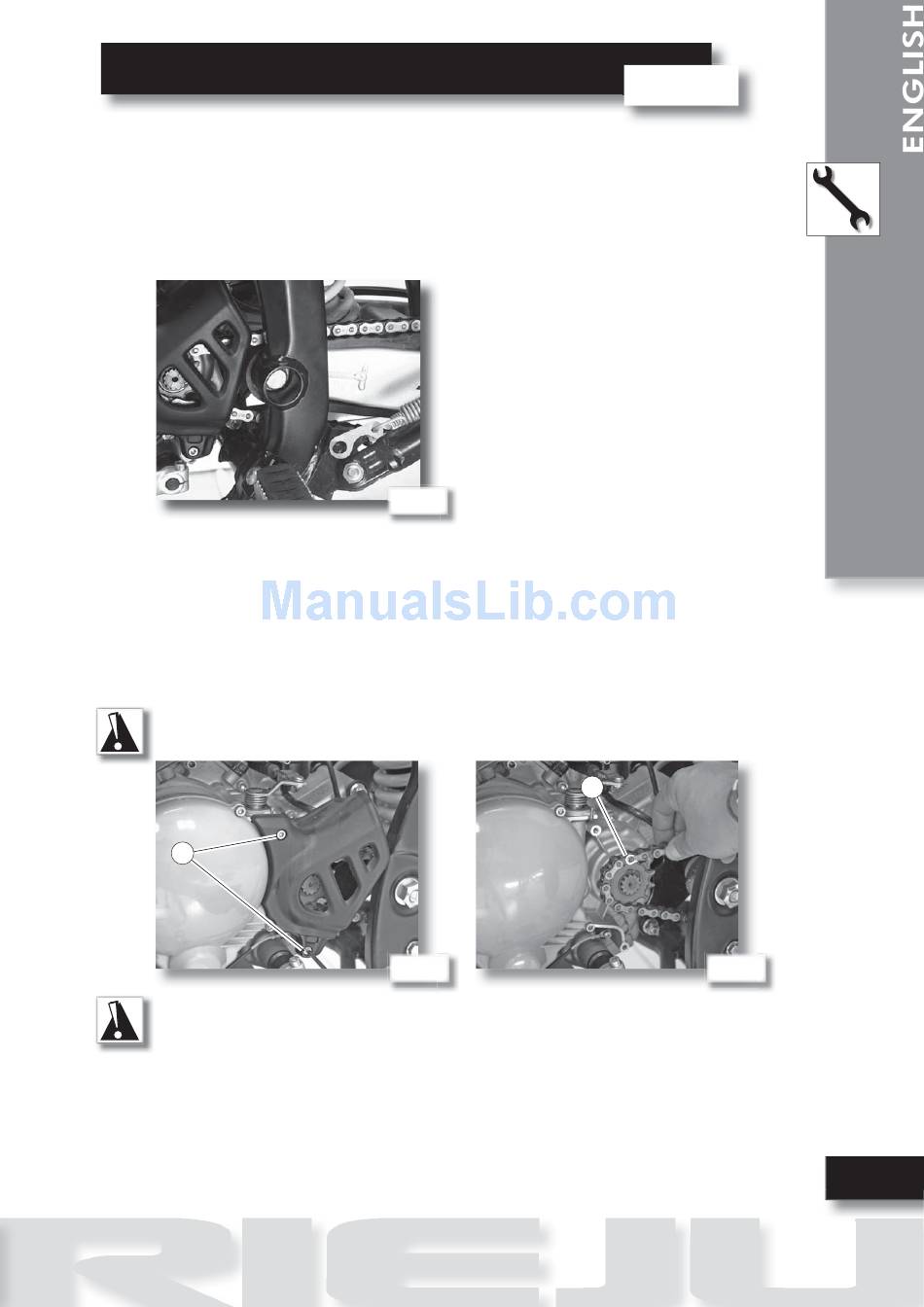

46. SWINGING ARM
* Remove the chain, the rear brake calliper, the rear wheel and the shock absorber.
Unscrew the nut (A/F-96) and withdraw the shaft from the right-hand side.
F-96
47. TRANSMISSION CHAIN
Remove the 2 bolts (A/F-97) securing the protector and remove it.
Extract the clip (B/F-98) securing the connector link and remove the chain.
ATTENTION: When refitting, consult the Adjusting the transmission chain tension
section.
B
A
F-97
F-98
ATTENTION: Make a note of the position of the chain, to ensure it is refitted correctly.
