Removal

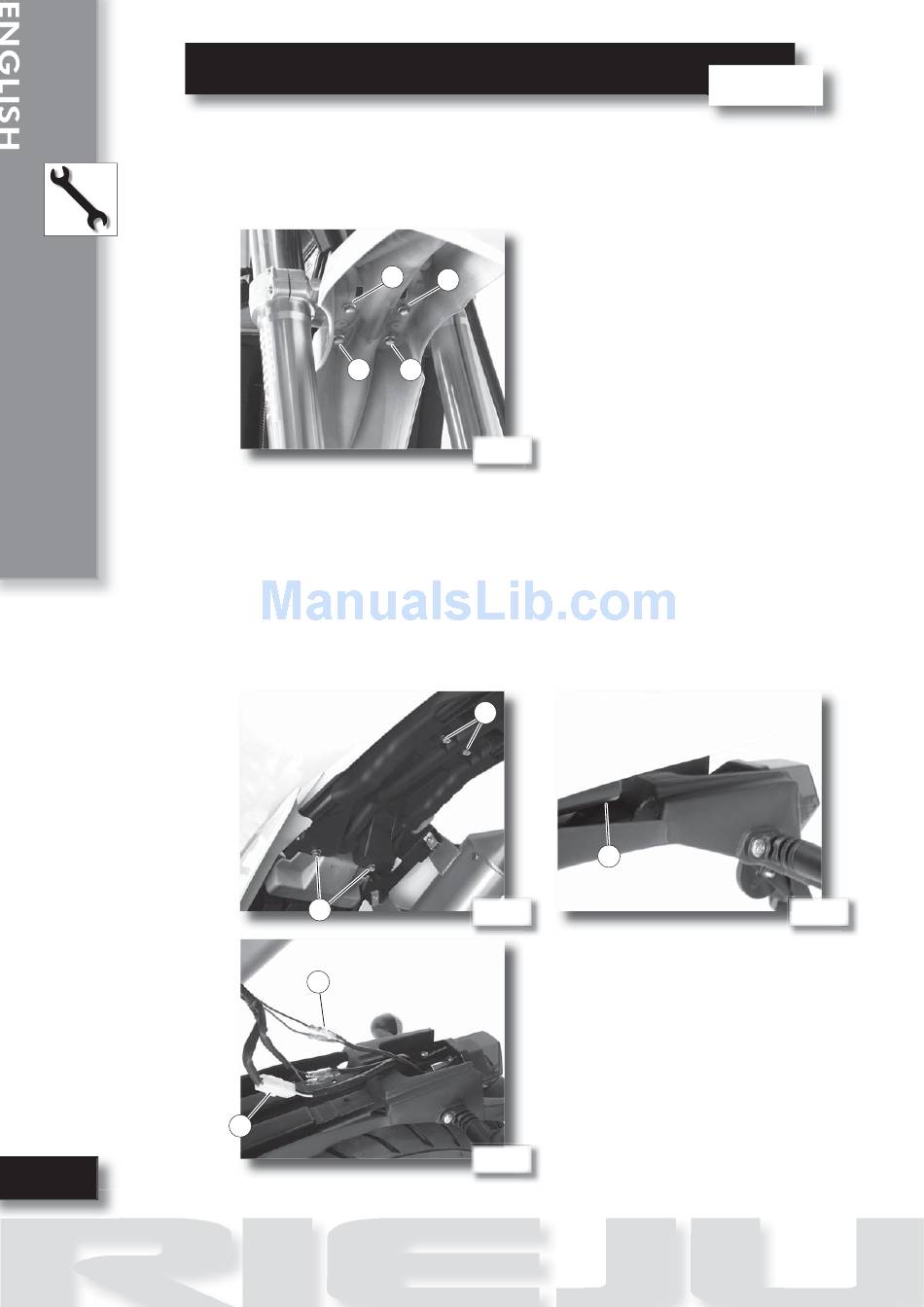

6. FRONT MUDGUARD
Unscrew the 4 bolts (A/F-9) located underneath the mudguard.
A
A A

7. REAR MUDGUARD

Unscrew the 4 bolts (A/F-10) located inside the rear wheel arch.
Then pull the cowling backwards to free it from the chassis (B/F-11).
Disconnect the rear turn indicators (C/F-12) and remove them (see section
A
C
C
A
F-9
A
B
F-10
F-12
Chassis
F-11
