QUANTUM

1650

32 Wedgwood Road

Bicester, Oxon OX26 4UL

Table of Contents

Summary of Contents for Pride QUANTUM 1650

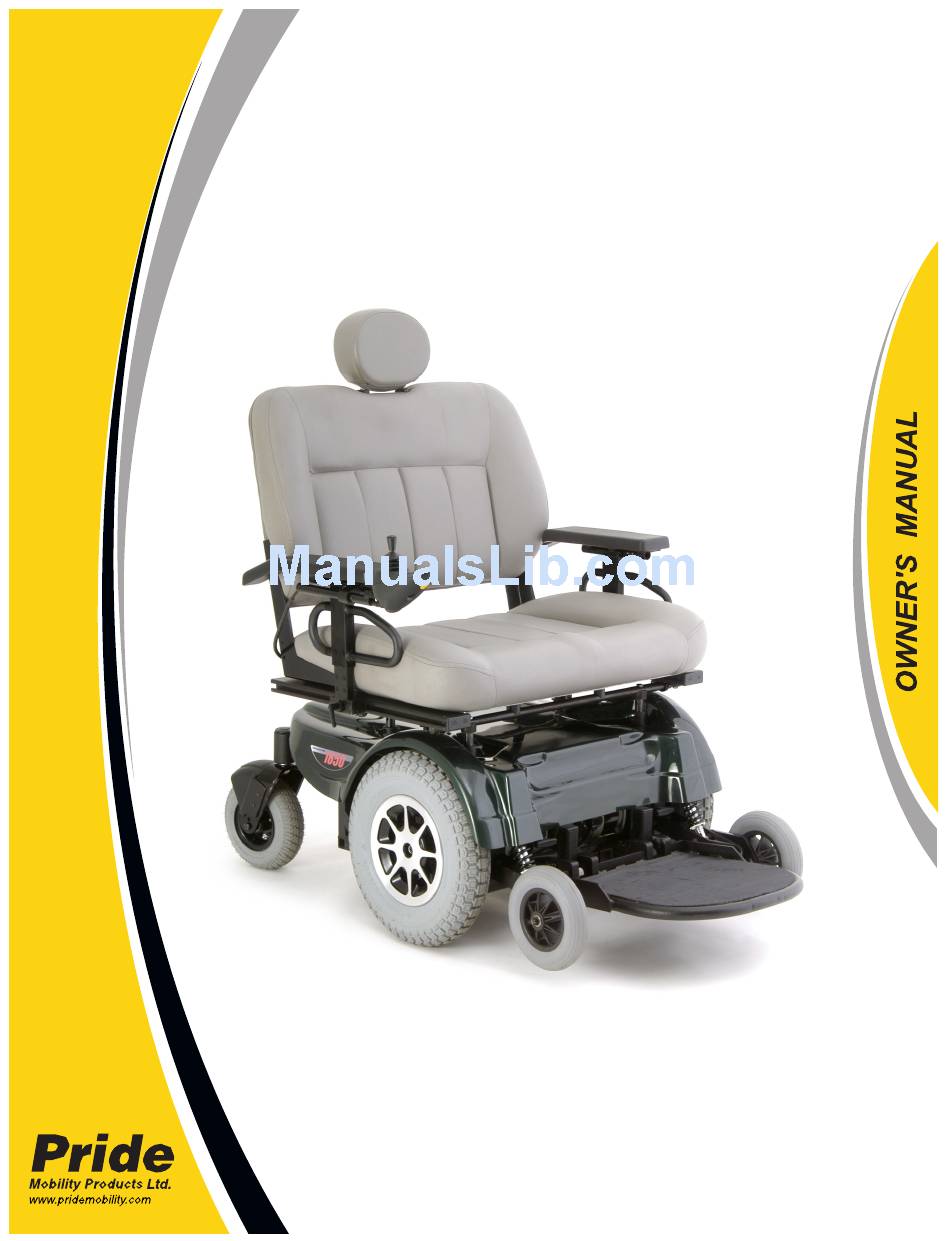

Page 1 QUANTUM 1650 32 Wedgwood Road Bicester, Oxon OX26 4UL...
Page 3: Table Of Contents
SAFETY ..............................5 III. YOUR POWER CHAIR ........................18 IV. ASSEMBLY ............................22 COMFORT ADJUSTMENTS ......................24 VI. BATTERIES AND CHARGING ....................29 VII. CARE AND MAINTENANCE ......................33 VIII. WARRANTY ............................39 APPENDIX I - SPECIFICATIONS ....................... 40 Quantum 1650 www.pridemobility.com...
Page 4: Introduction
Pride to enhance or preserve the safe use of this product.
Page 5 Avoid exposure to rain, snow, ice, salt or standing water whenever possible. Maintain and store in a clean and dry condition. Quantum 1650 www.pridemobility.com...
Page 6: Ii. Safety
Failure to heed could result in personal injury and/or property damage. Wear safety goggles. Corrosive chemicals contained in battery. Do not remove anti-tip wheels. EMI-RFI — This product has been tested and passed at an immunity level of 20 V/m. www.pridemobility.com Quantum 1650...
Page 7 Connect Red wire to positive terminal (+). Connect Black wire to negative terminal (-). Two (2) Battery Configuration: + = Positive Terminal - = Negative Terminal Connect Red wire to positive terminal (+). Connect Black wire to negative terminal (-). Quantum 1650 www.pridemobility.com...
Page 8 Battery charger for indoor use only. Disposal and recycling — Contact your Quantum Rehab Dealer for information on proper disposal and recycling of your Pride product and its packaging. Unlocked and in freewheel mode. Place unit on level ground and stand to one side when changing from drive mode to freewheel mode or freewheel mode to drive mode.
Page 9 I I . S A F E T Y Do not place power chair in freewheel mode on a decline. Do not place power chair in freewheel mode on an incline. Contains Lead. Quantum 1650 www.pridemobility.com...
Page 10 WARNING! Do not modify your power chair in any way not authorised by Pride. Pre-Ride Safety Check Get to know the feel of your power chair and its capabilities. Pride recommends that you perform a safety check before each use to make sure your power chair operates smoothly and safely.
Page 11: Weight Limitations
Your power chair is rated for a maximum weight capacity. Please refer to the specifications table for this limit. WARNING! Stay within the specified weight capacity of your power chair. Exceeding the weight capacity voids your warranty. Pride will not be held responsible for injuries and/or property damage resulting from failure to observe weight limitations.
Page 12 Doing so could cause instability in your power chair. Pride recommends that the maximum slope of an incline you attempt to safely ascend or descend on your power chair does not exceed 8.7% (5°). See figure 1.
Page 13 Your power chair is designed to provide optimum stability under normal driving conditions — dry, level surfaces composed of concrete, blacktop or tarmac. However, Pride recognises that there will be times when you will encounter other surface types. For this reason, your power chair is designed to perform admirably on packed soil, grass and gravel.
Page 14: Stairs And Escalators
Motor Vehicle Transport Pride recommends that you do not remain seated in your power chair while traveling in a motor vehicle. The power chair should be stowed in the boot of a car or in the back of a truck or van with batteries removed and properly secured.
Page 15: Positioning Belts
WARNING! If you anticipate being seated in a stationary position for an extended period of time, turn off the power. This will prevent unexpected motion from inadvertent joystick contact. This will also eliminate the possibility of unintended chair movement from electromagnetic (EM) sources. Quantum 1650 www.pridemobility.com...
Page 16: Reaching And Bending
Pride recommends that the power chair user determine his/her personal limitations and practice bending and reaching in the presence of a qualified healthcare professional.
Page 17 WARNING! Pride strongly recommends that you do not smoke cigarettes while seated in your power chair, although the power chair has passed necessary testing requirements for cigarette smoking.
Page 18 I I I . Y O U R P O W E R C H A I R THE QUANTUM 1650 The Quantum 1650 has two main assemblies: the seat and the power base. See figures 5 and 6. Typically, the seat assembly includes the armrests, seatback and seat base. The power base assembly includes two motor/brake assemblies, two drive wheels, two anti-tip wheels, two castor wheels, two batteries and the electrical components.
Page 19: Iii. Your Power Chair
I I I . Y O U R P O W E R C H A I R SEAT RECEIVERS SEAT RECEIVERS MANUAL FREEWHEEL LEVERS Figure 6. The Quantum 1650 Power Base Quantum 1650 www.pridemobility.com...
Page 20 Circuit Breaker (not shown): The circuit breaker is self-resetting and nonserviceable. Contact your Quantum Rehab Dealer if the circuit breaker resets itself repeatedly. THERMAL FUSE BATTERY CONNECTORS POWER MODULE BATTERY CONNECTORS POWER BASE FRAME MOTORS Figure 7. Quantum 1650 Electrical Components (4-Battery Configuration Shown) www.pridemobility.com Quantum 1650...
Page 21 I I I . Y O U R P O W E R C H A I R Manual Freewheel Levers The Quantum 1650 has a manual freewheel lever on each motor. Manual freewheel levers enable you to disengage the drive motors from the gearboxes and manoeuvre the chair manually.
Page 22: Initial Assembly
Replacement nylon insert lock nuts are available at local hardware stores or through your Quantum Rehab Dealer. SEAT INSTALLATION ARMREST ADJUSTMENT CONTROLLER POSITION FOOT PLATFORM ADJUSTMENT ANTI-TIP WHEEL ADJUSTMENT Figure 9. Quantum 1650 Assembly View www.pridemobility.com Quantum 1650...
Page 23: Iv. Assembly
Seat Installation The Quantum 1650 seat is attached to the power base by four safety snap pins. Each pin is inserted into a receiver on the power base frame. The seat towers have holes that enable you to adjust the seat height. Safety snap pins are inserted through the receiver and through the seat towers to secure the seat.
Page 24: Comfort Adjustments
Your Quantum Rehab Dealer has evaluated your power chair and made any necessary adjustments to suit your specific requirements. Do not change your seating configuration without first contacting Pride Mobility Products or your Quantum Rehab Dealer.
Page 25: V. Comfort Adjustments
4. Reinstall the button head cap screws to the side of the armrest. 5. Install the armrest in the armrest lock and rotate the armrest lock lever forward. 6. If necessary, repeat for the other armrest. Figure 13. Armrest Height Adjustment Quantum 1650 www.pridemobility.com...
Page 26 You can adjust the angle of the foot platform with a hex key. See figure 15. To adjust the foot platform angle: 1. Flip up the foot platform and locate the setscrews. 2. Turn the setscrews to raise or lower the front of the foot platform. www.pridemobility.com Quantum 1650...
Page 27 NOTE: Each drive tyre must be inflated to the psi/bar/kPa rating indicated on the tyre in order for the anti-tip wheels to be properly adjusted. The user must also be seated in the power chair in order to properly adjust the anti-tip wheels. Quantum 1650 www.pridemobility.com...
Page 28: Positioning Belt
MANDATORY! Inspect the positioning belt for loose or damaged parts before each use of the power chair. If you discover problem, contact your Quantum Rehab Dealer for maintenance and repair. www.pridemobility.com Quantum 1650...
Page 29: Batteries And Charging
PROHIBITED! Do not allow unsupervised children to play near the power chair while the batteries are charging. Pride recommends that you do not charge the batteries while the power chair is occupied.
Page 30: Vi. Batteries And Charging
We do not recommend using other types of chargers (e.g., an automotive battery charger). NOTE: Your power chair’s charger will not operate after the batteries have been discharged to nearly zero voltage. If this happens, contact your Quantum Rehab Dealer for assistance. www.pridemobility.com Quantum 1650...
Page 31 We work closely with our battery manufacturer to provide a battery that best suits your power chair’s specific demands. Fresh batteries arrive regularly at Pride and are promptly shipped with a full charge. During shipping, the batteries encounter temperature extremes that may influence initial performance. Heat robs the charge from the battery, and cold slows the power available and extends the time needed to recharge the battery (just as with a car battery).
Page 32 What about shipping? If you wish to use a freight company to ship your power chair to your final destination, repack your power chair in the original shipping container and ship the batteries in separate boxes. www.pridemobility.com Quantum 1650...
Page 33: Care And Maintenance
V I I . C A R E A N D M A I N T E N A N C E CARE AND MAINTENANCE Your Quantum 1650 is a sophisticated power chair. Like any motorised vehicle, it requires routine maintenance checks. You can perform some of these checks, but others require assistance from your Quantum Rehab Dealer.
Page 34: Vii. Care And Maintenance
Check the castor forks for damage or fluttering which indicates that they may need to be adjusted or have the bearings replaced. See your Quantum Rehab Dealer for repair. Keep your power chair clean and free of foreign material, such as mud, dirt, hair, food, drink, etc. www.pridemobility.com Quantum 1650...
Page 35: Cleaning And Disinfection
WARNING! When changing a tyre, remove only the centre lug nut and washer, then remove the wheel. If any further disassembly is required, deflate the tyre completely or it may explode. Quantum 1650 www.pridemobility.com...
Page 36: Battery Replacement
Use proper lifting techniques and avoid lifting beyond your capacity. WARNING! Do not mix old and new batteries. Always replace both batteries at the same time. www.pridemobility.com Quantum 1650...
Page 37 V I I . C A R E A N D M A I N T E N A N C E BATTERY CONNECTORS BATTERY CONNECTORS Figure 22. Quantum 1650 Battery Connections (4-Battery Configuration) Figure 23. Battery Wiring Diagram (4 Batteries) Figure 24. Battery Wiring Diagram (2 Batteries) To replace the batteries: 1.
Page 38: Corrective Maintenance
Disconnect both batteries before load testing and follow the directions that come with the load tester. If either one of the batteries fails the load test, replace both of them. If your power chair still does not power up, contact your Quantum Rehab Dealer. www.pridemobility.com Quantum 1650...
Page 39: Warranty
Pride Mobility Products Ltd. cannot be deemed responsible. NOTE: Pride Mobility Products Ltd. provides parts only under warranty. Your Quantum Rehab Dealer is responsible for labour and service. Please contact your Quantum Rehab Dealer for information about these services and for any applicable charges.
Page 40: Appendix I - Specifications
Test conducted at maximum weight capacity. NOTE: This product conforms to all applicable ANSI-RESNA testing requirements and ISO 7176 EN12184 stan- dards. All specifications subject to change without notice. www.pridemobility.com Quantum 1650...
Page 41 131.45 cm (51.75 in. with foot platform) 118.75 cm (46.75 in. without foot platform) TURNING RADIUS WIDTH 77.4 cm (30.5 in.) 66.67 cm (26.25 in.) GROUND CLEARANCE 6.9 cm (2.75 in.) Figure 25. Quantum 1650 Series Dimensions and Ground Clearance Quantum 1650 www.pridemobility.com...
Page 42 N O T E S www.pridemobility.com Quantum 1650...
Page 43 Quality Control – Quantum 1650 Inclusion of all Parts Joystick Serial Number Controller Serial Number Left Motor Serial Number Right Motor Serial Number Fit and Finish Performance Pride keeps a more detailed report on file at the factory. Date Inspected Inspector *INFMANU2542* Serial Number...
