Intel SE7520AF2 Operating Manual

Hide thumbs Also See for SE7520AF2:
Table of Contents

Advertisement

Quick Links

Download this manual See also: Technical Product Specification, User Manual
®
Intel

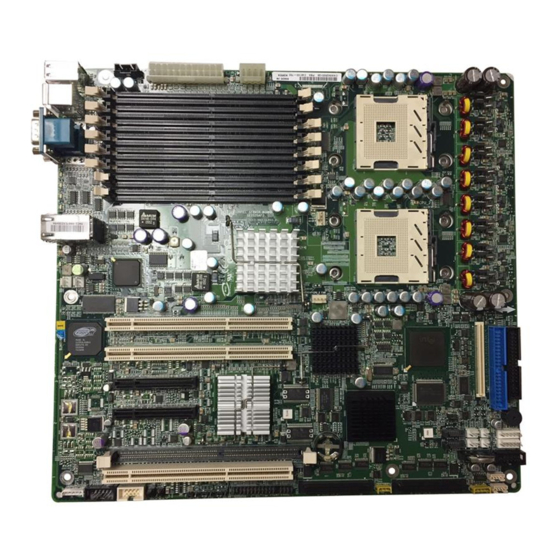

Server Board SE7520AF2
Tested Hardware and Operating System List
Revision 2.1
December 2006
Enterprise Platforms and Services Marketing

Advertisement

Table of Contents
loading

Related Manuals for Intel SE7520AF2

Summary of Contents for Intel SE7520AF2

  • Page 1 ® Intel Server Board SE7520AF2 Tested Hardware and Operating System List Revision 2.1 December 2006 Enterprise Platforms and Services Marketing...
  • Page 2 No license, express or implied, by estoppel or otherwise, to any intellectual property rights is granted by this document. Except as provided in Intel's Terms and Conditions of Sale for such products, Intel assumes no liability whatsoever, and Intel disclaims any express or implied warranty, relating to sale and/or use of Intel products including liability or warranties relating to fitness for a particular purpose, merchantability, or infringement of any patent, copyright or other intellectual property right.

  • Page 3: Table Of Contents

    Linux 9.1 Professional Operating System ........................32 Tape drive shown as if 8 tapes are installed............32 Novell NetWare* 6.5 Emulex* LP9802DC driver fails to load ........ 33 Sony* Tape Drives fully supportive with SE7520AF2 BIOS P07 ......33 Revision 2.1...
  • Page 4 Table of Contents Intel® Server Board SE7520AF2 Seagate* SCSI Hard Disks Drives supportive with SE7520AF2 BIOS P07... 33 Netware* 6.5 Service Pack 4 not bootable with certain LAN adapters present in PCI slot #5..........................34 Revision 2.1...
  • Page 5 Intel® Server Board SE7520AF2 Table of Contents < This page left intentionally blank> Revision 2.1...

  • Page 7: Introduction

    Intel® Server Board SE7520AF2 Introduction Introduction This document is intended to provide users of the Intel® server board SE7520AF2 with a guide to the different operating systems, adapter cards, and peripherals tested by Intel on this platform. This document will continue to be updated as new add-in cards, peripherals, and operating systems are tested until the Intel server board SE7520AF2 is no longer in production.

  • Page 8: Adapter / Peripheral Compatibility And Stress Testing

    Intel will enable vendors to provide driver support for add-in adapters using these operating systems. • Intel will go through some of the steps to achieve certification to ensure its customers do not run across any problems, but the actual certification is the responsibility of the individual customer.

  • Page 9: Pass/Fail Test Criteria

    Files copied from client to server and back compare to the original with zero errors reported. Clients remain connected to the server system. Industry standard test suites run to completion with zero errors reported. All Intel server board SE7520AF2 testing was performed using the Intel Server Chassis SC5300. Revision 2.1...

  • Page 10: Intel Server Board Se7520Af2 Base System Configurations

    Intel server board SE7520AF2 are released and/or new system BIOS and BMC firmware are introduced onto the board in Intel’s factory. Each base configuration is assigned an identifier number that is referenced in the tables throughout this document. New base configurations are added with each new release of this document.

  • Page 11: Supported Operating Systems

    The following table provides a list of supported operating systems for the Intel server board SE7520AF2. Each of the listed operating systems was tested for compatibility with a base Intel server board SE7520AF2 configuration. Operating system compatibility testing verifies that the operating system will install and function with all on-board devices.

  • Page 12: Operating System Certifications

    Intel® Server Board SE7520AF2 Operating System Certifications Listed below are the operating systems that Intel will certify on the SE7520AF2 Server board. However, the customer is responsible for their own certification from the individual operating system vendors. In many cases, the customer may leverage their operating system certifications from Intel’s testing.

  • Page 13: Adapters And Peripherals

    Note that not all adapter cards were tested under all operating systems. The following notation is used in the tested adapters and peripherals table below to indicate the support level that Intel provides for a particular adapter under a particular operating system: This adapter or peripheral has been tested and is supported under the specific Number (i.e.
  • Page 14 Adapters and Peripherals Intel® Server Board SE7520AF2 <This page left intentionally blank> Revision 2.1...

  • Page 15: Pci Scsi

    Intel® Server Board SE7520AF2 Adapters and Peripherals Comments Manufacturer Model Name Model Number PCI SCSI † Adaptec ASC-29160 ASC-29160 PCI 64/66 † Adaptec ASC-29160LP ASC-29160LP PCI 64/66 † Adaptec ASC-29160N ASC-29160N PCI 64/66 Adaptec ASC29320ALP ASC29320ALP PCI-X/133 Adaptec ASC29320A ASC29320A...

  • Page 16: Raid

    Intel® Server Board SE7520AF2 Adapters and Peripherals Comments Manufacturer Model Name Model Number RAID † 3Ware 8506-8 8506-8 PCI 64/66 3Ware 8506-12 8506-12 PCI 64/66 3Ware 8506-4LP 8506-4LP PCI 64/66 † Adaptec ASR-2110S ASR-2110S PCI 64/66 † Adaptec ASR-2200S ASR-2200S PCI 64/66 †...

  • Page 17: Pci Fibre Channel

    Intel® Server Board SE7520AF2 Adapters and Peripherals Comments Manufacturer Model Name Model Number Elite 1600 † LSI Logic 4932010232A PCI 64/66 (MegaRAID 493) LSI Logic MegaRAID 320-1 MegaRAID 320-1 PCI 64/66 LSI Logic MegaRAID 320-2 MegaRAID 320-2 PCI 64/66 MegaRAID 320-...

  • Page 18: Pci Nic

    Intel® Server Board SE7520AF2 Adapters and Peripherals Comments Manufacturer Model Name Model Number Emulex LP10000 PCI-X133 Emulex LP1050 PCI-X133 Emulex LP1050DC PCI-X133 Emulex LP10000ExDC ExpressX4 Emulex LP1050Ex ExpressX4 Intel® SRCFC22C PCI-64/66 LSI Logic® LSI7202XP-LC PCI-X133 † Qlogic QLA2200L PCI-64/66 †...
  • Page 19 Intel® Server Board SE7520AF2 Adapters and Peripherals Comments Manufacturer Model Name Model Number PRO/100+ S Intel PILA8470C3 PCI 32/33 Server PRO/100+ Dual Intel PILA8472C3 PCI 64/66 Port Intel PRO/1000XT PWLA8490XT PCI-X/133 Intel PRO/1000XF PWLA8490XF PCI-X/133 Intel PRO/1000XFL PWLA8490XFL PCI-X/133 Intel...

  • Page 20: Modems

    Intel® Server Board SE7520AF2 Adapters and Peripherals Comments Manufacturer Model Name Model Number † Dlink DFE-530/TX+ PCI 32/33 PCI- Syskonnect SK-9E21D SK-9E21D ExpressX1 PCI- Syskonnect SK-9E22 SK-9E22 ExpressX4 Modems 56K V.92 † 3COM USR5610B PCI 32/33 Performance Pro 56K V.Everything...

  • Page 21: Cdrom Drives

    Intel® Server Board SE7520AF2 Adapters and Peripherals Comments Manufacturer Model Name Model Number CDROM Drives CD-RW † IOMEGA 32721 USB 2.0 48x24x48 † Mitsumi CRMC-FX5401W CRMC-FX5401W ATA33 Mitsumi SR244W1 SR244W1 ATA33 PlexWriter/ PlexWriter/ Plextor Premium-U Premium- USB 2.0 U52/32/52 †...

  • Page 22: Tape Drives

    Intel® Server Board SE7520AF2 Adapters and Peripherals Comments Manufacturer Model Name Model Number Tape Drives † Quantum BHHAA-YF DLT, VS80 SCSI-U2 Quantum BH2AA-YF DLT, VS160 SCSI-U2 Refer to Installation Guideline 6.3 TRS23BA-YF Super DLT Quantum SCSI-U2 SDLT320 SCORPION 40 †...

  • Page 23: 4.10 Removable Drives

    Intel® Server Board SE7520AF2 Adapters and Peripherals Comments Manufacturer Model Name Model Number Sony SAITe1300SS ** SAIT1 SCSI-U2 4.10 Removable Drives 22P9025 256MB Memory † USB 2.0 Lexar JD1GB-80-231 1GB USB Flash USB 2.0 † IOMEGA 32324 ZIP 750 MB USB 2.0...

  • Page 24: 4.11 Kvm

    Intel® Server Board SE7520AF2 Adapters and Peripherals Comments Manufacturer Model Name Model Number 4.11 KVM † Avocent 1160ES 1160ES PS/2 † Belkin Omniview PRO2 F1DA108T PS/2 4.12 Graphic † RADEON 7000 RADEON 7000 PCI 32/33 † Matrox G45FMDVP32DB G45FMDVP32DB PCI 32/33 †...
  • Page 25 Intel® Server Board SE7520AF2 Adapters and Peripherals Comments Manufacturer Model Name Model Number Revision 2.1...

  • Page 26: Hard Disk Drives

    Note that not all hard drives were tested under all operating systems. The following notation is used in the tested hard drives table below to indicate the support level that Intel provides for a particular hard drive with a particular operating system: This hard drive has been tested and is supported under the operating system identified Number (i.e.

  • Page 27: Usb Hard Disks Drives

    Intel provides the same level of support for all hard drives listed in this document, regardless of whether the drive was tested in an Intel lab or not. IHV test reports remain the property of the IHV (Intel cannot provide copies of these reports).
  • Page 28 Intel® Server Board SE7520AF2 Hard Disk Drives Maxtor† 6Y080M0 DiamondMax Plus 9 SATA/150 7200 Maxtor† 6Y160M0 DiamondMax Plus 9 SATA/150 7200 Maxtor† 6Y200M0 DiamondMax Plus 9 SATA/150 7200 Maxtor† 6Y250P0 Maxline II SATA/150 7200 Hitachi† HDS722525VLST80 Deskstar 7K250 SATA/150 7200 1,2,4,5,6,7,8 Hitachi†...

  • Page 29: Scsi Hard Disks Drives

    Intel® Server Board SE7520AF2 Hard Disk Drives SCSI Hard Disks Drives Fujitsu† MAP3147NC SCSI-U320-SCA 1,3,4,6 Fujitsu† MAP3367NC SCSI-U320-SCA Fujitsu† MAP3735NC SCSI-U320-SCA Fujitsu† MAS3735NC SCSI-U320-SCA 1,3,4,6 Fujitsu† MAS3184NC SCSI-U320-SCA Fujitsu† MAS3367NC SCSI-U320-SCA Fujitsu† MAU3147NC SCSI-U320-SCA 1,3,4,6 Fujitsu† MAU3073NC SCSI-U320-SCA 1,3,4,6 Fujitsu†...
  • Page 30 Intel® Server Board SE7520AF2 Hard Disk Drives Hitachi† HUS103014FL3600 Ultrastar 10K300 SCSI-U320-SCA Hitachi† HUS103073FL3800 Ultrastar 10K300 SCSI-U320-SCA 1,3,4,6 Hitachi† HUS103073FL3600 Ultrastar 10K300 SCSI-U320-SCA Hitachi† HUS151414VL3800 Ultrastar 15K147 SCSI-U320-SCA 1,3,4,6 Hitachi† HUS151436VL3800 Ultrastar 15K147 SCSI-U320-SCA Hitachi† HUS151473VL3800 Ultrastar 15K147 SCSI-U320-SCA 1,3,4,6 Hitachi†...
  • Page 31 Intel® Server Board SE7520AF2 Hard Disk Drives Seagate† ST3146707LC*** Cheetah 10K.7 SCSI-U320-SCA Seagate† ST373207LC*** Cheetah 10K.7 SCSI-U320-SCA Seagate† ST3146854LC*** Cheetah 15K.4 SCSI-U320-SCA 1,3,4,6 Seagate† ST373454LC*** Cheetah 15K.4 SCSI-U320-SCA 1,2,4,5,6,7,8 Seagate† ST336754LC*** Cheetah 15K.4 SCSI-U320-SCA Revision 2.1...

  • Page 32: Installation Guidelines

    Professional Operating System Problem Intel found through OS stress testing that the IA32 and the IA32e versions of the SuSE Linux 9.1 Professional operating system (kernel 2.6.4-52-smp) can exhibit silent data corruption on server boards based on the Intel(R) E7520 chipset.

  • Page 33: Novell Netware* 6.5 Emulex* Lp9802Dc Driver Fails To Load

    Sony* tape drives with certain PNs (part numbers) may not be fully supportive with previous SE7520AF2 BIOS versions. Implication: Sony* tape drives with below PNs may not be fully supportive on SE7520AF2 until systems are upgraded to include BIOS P07 or later versions. Workaround: None.

  • Page 34: Netware* 6.5 Service Pack 4 Not Bootable With Certain Lan Adapters Present In Pci Slot #5

    Installation Guidelines Intel® Server Board SE7520AF2 Workaround: None. Status: No fix. Netware* 6.5 Service Pack 4 not bootable with certain LAN adapters present in PCI slot #5. ® ® Issue: When the LAN adapter, Intel PRO/100+ S Server, or 3COM 3C980C-TXM, is present in PCI slot #5, Netware* 6.5 Service Pack 4 might not be bootable.
