Genelec 7360A Operating Manual page 3

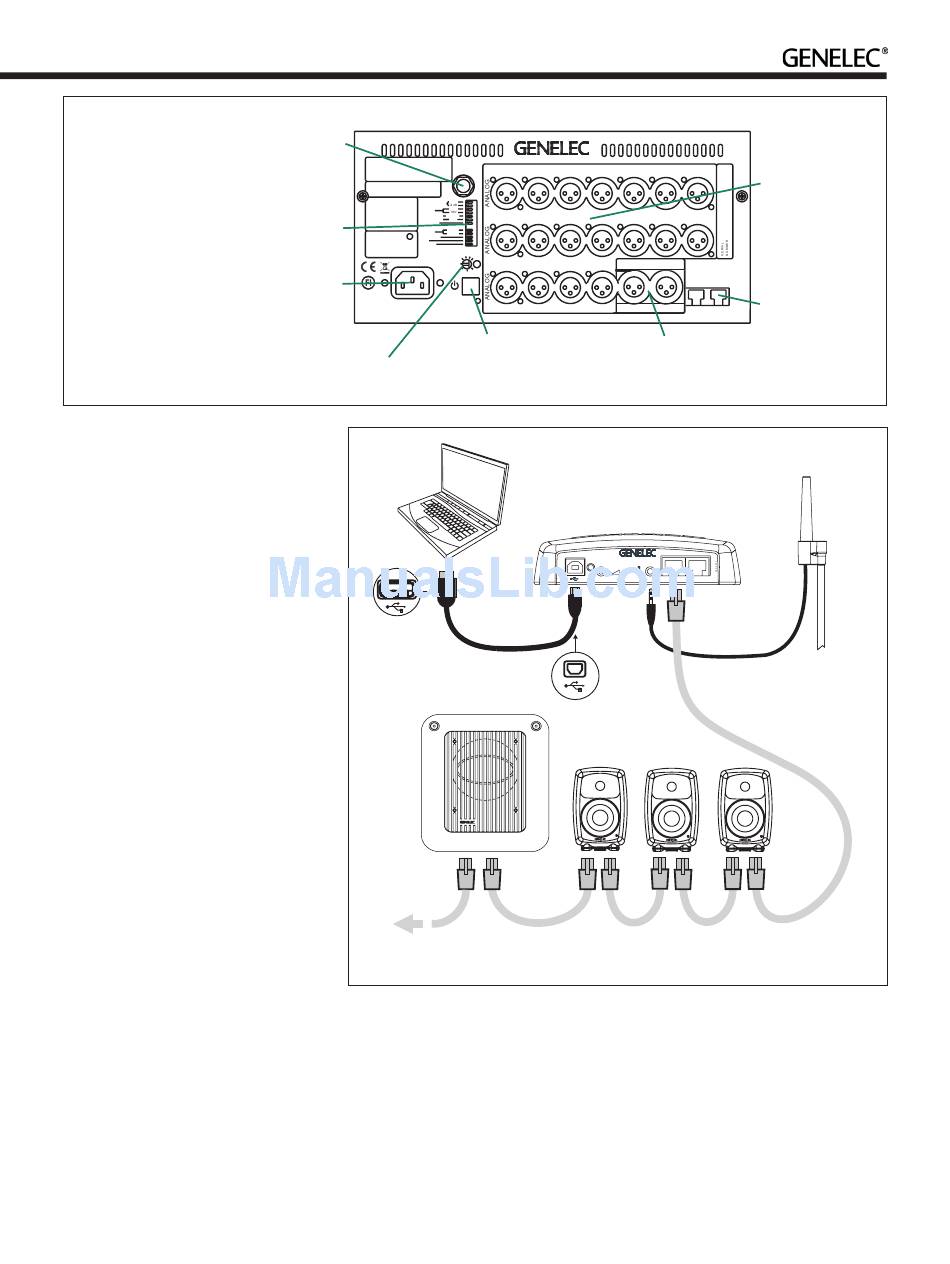

Figure 1. Connector panel
of the 7360A. The 7370A
is similar.
The setup is fast and consists of the
following steps:
• Connect a CAT5 (RJ45) cable between
each monitor (and subwoofer) and finally
to the control network input of the GLM
Adapter device (see Figure 1).
• Connect the GLM Adapter device to
computer USB connector.
• Using a microphone stand, place the
Genelec measurement microphone at the
listening location with the microphone
pointing upwards and the microphone
top at the height of the engineer's ear.
The microphone is a part of the GLM
User Kit.
• Connect the microphone cable to the
microphone input in the GLM Adapter
device.
• Download the GLM software at the
Genelec web site (www.genelec.com).
• Install the GLM software and follow the
instructions in the software to measure
and set up your system.
• If you plan to not use a computer for
controlling the monitors, use the GLM
software to write the setting into the
monitors (use menu item "Store | Store
the Current Group Settings...").
While the GLM network is disconnected
the settings stored using the Genelec
Loudspeaker Manager software can be
selected in use by setting the STORED
switch ON.
BYPASS
SWITCH
CONNECTOR
AVERTISSEMENT
RISQUE DE CHOC ÉLECTRIQUE. NE PAS OUVRIR. NE PAS
EXPOSER À L'EAU OU L'HUMIDITÉ. AUCUN COMPOSANT À
L'INTÉRIEUR REMPLAÇABLE PAR L'UTILISATEUR. ADRESSER
TOUTE RÉPARATION À UN PERSONNEL QUALIFIÉ.
CET APPAREIL DOIT ÊTRE RACCORDÉ À LA TERRE.
LAITE ON LIITETTÄVÄ SUOJAKOSKETTIMILLA
VARUSTETTUUN PISTORASIAAN.
APPARATET MÅ TILKOPLES JORDET STIKKONTAKT.
APPARATEN SKALL ANSLUTAS TILL JORDAT UTTAG.
WARNING
BASS ROLL-OFF
ELECTRIC SHOCK HAZARD. DO
NOT OPEN. DO NOT SUBJECT
TO WATER OR MOISTURE. NO PHASE
USER SERVICEABLE PARTS
DIGITAL LFE
INSIDE. REFER SERVICING TO
CONTROL
LFE CHANNEL
QUALIFIED PERSONNEL. USE
LFE +10 dB
EARTHED MAINS CONNECTION
ONLY.
LEVEL
SWITCHES
THIS DEVICE COMPLIES
TEST TONE
WITH FCC PART 15 AND
ISS
CANADIAN ICES-003 RADIO
FREQUENCY CLASS B EMISSION STORED
REQUIREMENTS. REFER TO
INPUT dBu
OPERATING MANUAL FOR FULL
INFORMATION. PRODUCING
100 dB SPL (1 m)
MAINS
INPUT
www.genelec.com RESET TO FACTORY
MADE IN FINLAND MAINS INPUT SETTINGS: PUSH
50 / 60 Hz 300 W BUTTON FOR 10 SEC
100 - 240 V~
ROTARY
LEVEL
ADJUSTMENT
Figure 2. GLM Network cabling. Audio cabling not shown.
Using Without GLM
The 7300 series subwoofers can be easily set
up using the fixed 85 Hz analogue crossover
filter. This fixed crossover filter is on as
a factory setting and highpass filters the
analogue outputs on the subwoofer. When
7360A SMART ACTIVE SUBWOOFER
IN 6 OUT 6 IN 7 OUT 7
BYPASS
-4 dB
-90°
IN 3 OUT 3 IN 4 OUT 4
ON/OFF
A/B
-10 dB
-20 dB
ON OFF
-2 -4
0 -6
IN 1 OUT 1 IN 2 OUT 2
+2
TEST 1 TEST 2
+4 +12
+8
POWER
AES/EBU IN/OUT
SWITCH CONNECTORS
COMPUTER
RUNNING
GLM SOFTWARE
GLM ADAPTER
USB CABLE
SUBWOOFER
Cabling
LFE IN LFE OUT LINK IN
ANALOG IN/OUT
CONNECTORS
IN 5 OUT 5 LINK OUT
OUT IN
GLM NETWORK
GLM NETWORK
CONNECTORS
DIGITAL
MICROPHONE
PLACED IN
THE LISTENING
POSITION
GLM TERMINATOR
GLM NETWORK
CABLE
MONITORS
using this method, run each signal cable first
to the subwoofer. Then, run the respective
output to the monitor. This monitor feed
signal is highpass filtered at 85 Hz.
When using the LFE signal, run the LFE
signal to the subwoofer LFE in connector.
W h e n d a i s y - c h a i n i n g
subwoofers, run a cable from the Link Out
connector the next subwoofer's Link In
m u l t i p l e
