Chapter 6 – Flash Upgrade
Introduction
The MultiConnect Adapter contains a 2 MB flash wherein the boot image, the firmware and configuration files are
stored in a compressed format.
Serial Flash Upgrade Scenario

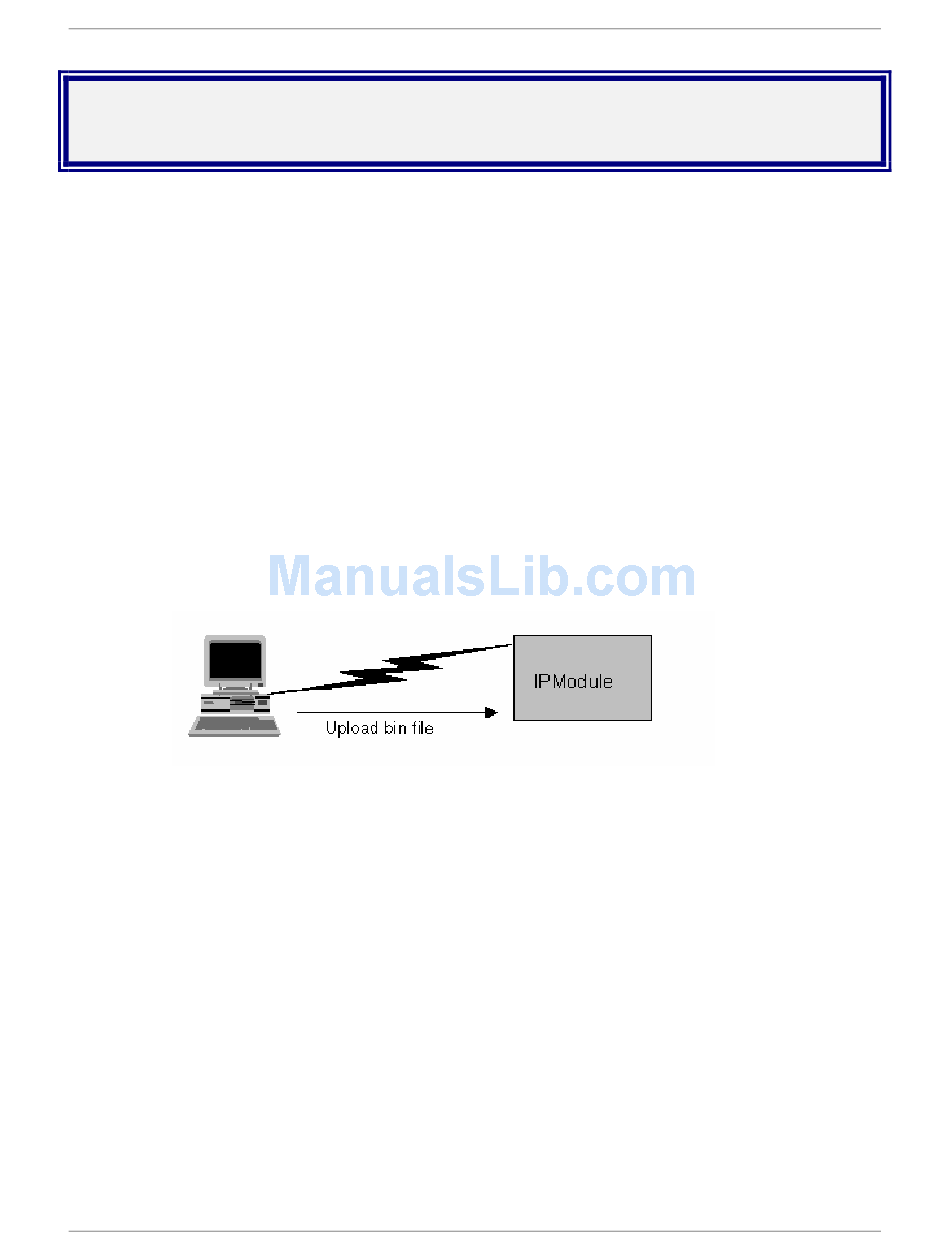

Following steps explain the procedure to upgrade a flash using the serial COM port (serial flash upgrade).
Connect the MultiConnect Adapter to a PC COM Port.
•
Open an application through which we can access the serial device(e.g., Meterm, zoc, hyperterm).
•
Reboot the MultiConnect Adapter.
•
Wait for the boot message and prompt "press d to download" to appear.
•
Press d when prompted.
•
Select the XMODEM Protocol from the Terminal application.
•
Choose a file (MTXCSEM-TFTP-...) file to be uploaded.
•
Perform a file upload.
The MultiConnect Adapter reboots and will be up after a few seconds (10-15 secs).
The MultiConnect Adapter reboots after it has been successfully upgraded.
Multi-Tech Systems, Inc. MultiConnect Serial-to-Serial Adapter User Guide (S000354B)
