Chapter 4 – Peripheral Devices

Antenna Requirements

Frequency Range
Impedance
VSWR
Gain
Radiation
Polarization
Wave
Connector
An antenna that meets the requirements for use with the SocketWireless product can be ordered, for
example, from Nearson.
www.nearson.com
Part number: S131AH – 2450S

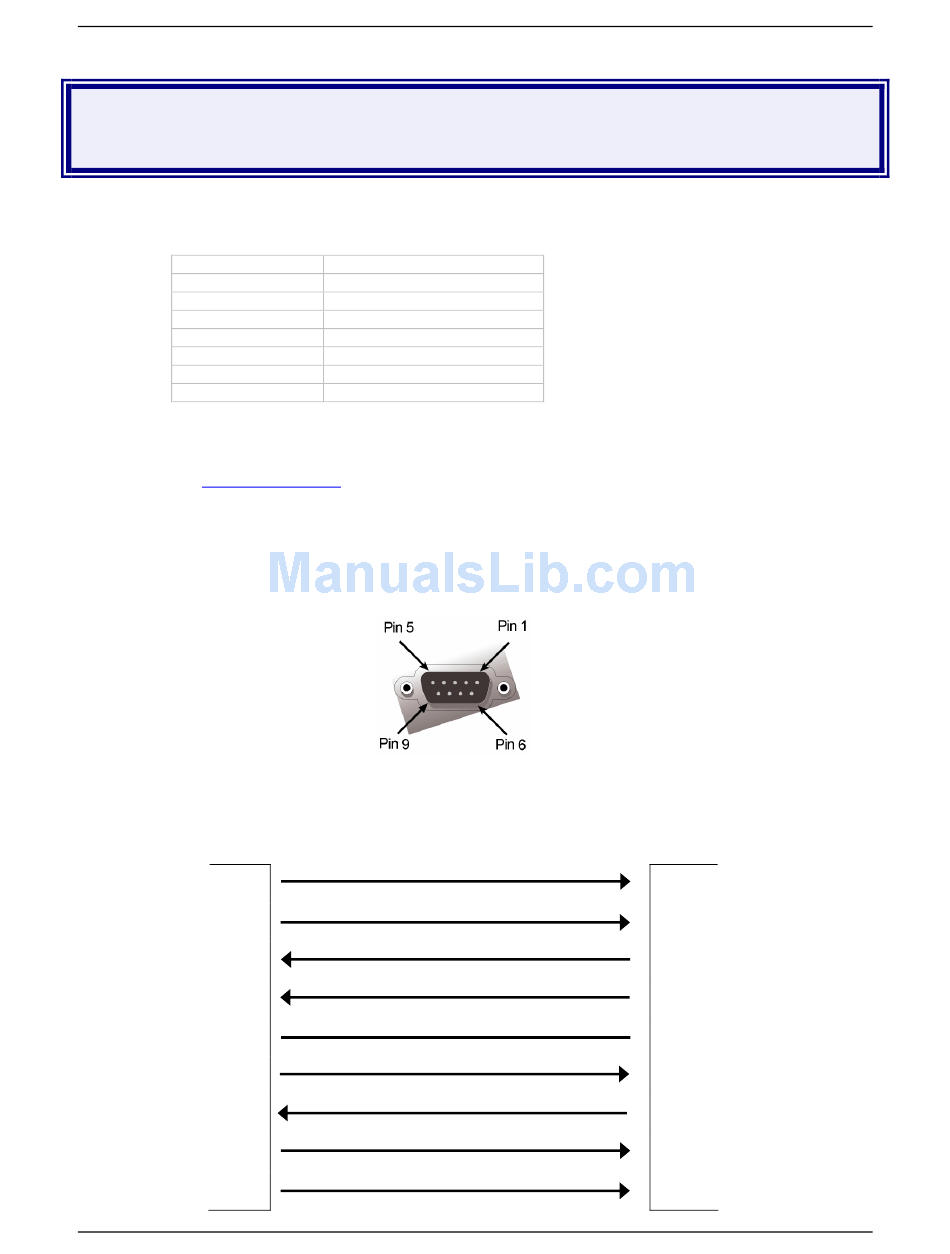

Pin Assignments for the Serial Port

MultiConnect Adapter Side
Multi-Tech Systems, Inc. Serial-to-Bluetooth Adapter User Guide (S000370A)
2.4-2.5 Ghz
50 ohm nominal
<2.0:1
2 dBi
Omni
Vertical
Half Wave Dipole
Reverse Polarity SMA Plug
Female DB9
Carrier Detect
Receive Data
Transmit Data
Data Terminal Ready
Signal Ground
Data Set Ready
Request to Send
Clear to Send
Ring Indicator
Chapter 4 – Peripheral Devices
PC Side
1
2
3
4
5
6
7
8
9
15
