NOTE 1
A 15amp, 120 volt circuit is required. A dedicated circuit is preferred but not essential in all cases. A
dedicated circuit will be required if, after installation, the circuit breaker trips or fuse blows on a regular
basis when the heater is operating. Additional appliances on the same circuit may exceed the current
rating of the circuit breaker.
WARNING
Ensure the power cord is not installed so that it is pinched or against a sharp edge and ensure that the
power cord is stored or secured to avoid tripping or snagging to reduce the risk of fi re, electric shock or
injury to persons.
Construction and electrical outlet wiring must comply with local building codes and other applicable
regulations to reduce the risk of fi re, electric shock and injury to persons.
Do not attempt to wire your own new outlets or circuits. To reduce the risk of fi re, electric shock or injury
to persons, always use a licensed electrician.

SITE SELECTION AND PREPARATION

This section provides instructions for selecting a location and preparing the site to install the fi replace into
your Dimplex mantel surround.
1. Select a suitable location that is not susceptible to moisture and is away from drapes, furniture
and high traffi c.
2. For ease of electrical hook up you may wish to locate the fi replace near an existing outlet. (refer
to NOTE 1)
3. Store the fi replace in a safe dry and dust free location.
NOTE
The dimensions of the fi replace are 31 1/2"wide X 22 3/8" high X 9 1/8" deep. The fi replace does not
require any additional venting.

FIREPLACE INSTALLATION

1. Install the fi replace assembly into the mantel. (refer to mantel assembly instructions)
NOTE 1
A 15 AMP, 120 VOLT circuit is required. A dedicated circuit is preferred but not essential in all cases.
A dedicated circuit will be required if, after installation, the circuit breaker trips or fuse blows on a
regular basis when the heater is operating. Additional appliances on the same circuit may exceed the
current rating of the circuit breaker.
IMPORTANT
If not using a Dimplex mantel, the fi replace must be
installed in an enclosure with the following
MINIMUM internal/opening dimensions.

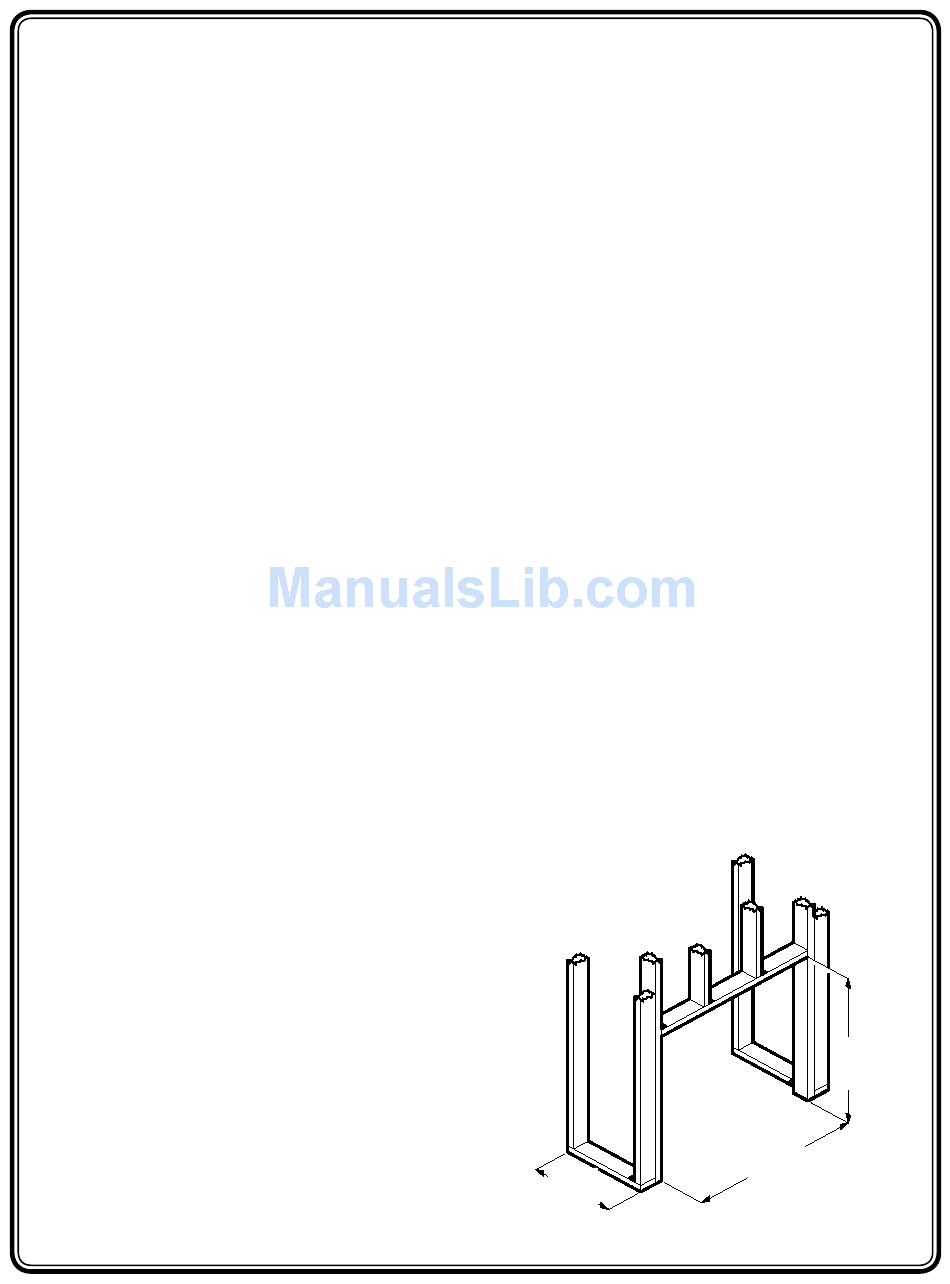

FIGURE 2
9 3/8"
22 5/8"
30 3/4"
