IMPORTANT: Save these instructions for Local Electrical Inspector's use.
INSTALLER: Please leave these Installation Instructions with this unit for the owner.
Before beginning, please read these instruction completely and carefully.
WARNING – TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK, OR INJURY TO
PERSONS, OBSERVE THE FOLLOWING:
1.
Use This Unit Only In The Manner Intended By The Manufacturer. If You Have Any Questions, Contact
The Manufacturer.
2.
Before Installing Or Servicing Unit, Switch Power Off At Service Panel And Lock Service Disconnecting
Means To Prevent Power From Being Switched On Accidentally. When The Service Disconnecting Means
Cannot Be Locked, Securely Fasten a Prominent Warning Device, Such As A Tag, To The Service Panel.
POWER SUPPLY – Power supply is dual rated: 240 VAC or 208 VAC, 3-wire, 60 Hz, 50Amp circuit breaker
JUNCTION BOX – Plan the installation of the unit so that the location of the junction box is within three (3)
CABNET PREPARATION AND CLEARANCE – Be sure your appliance is properly installed and
To eliminate the risk of burns or fire by reaching over heated surface units, cabinet storage space located above
the surface units should be avoided. If cabinet storage is to be provided, the risk can be reduced by installing a
range hood that projects horizontally a minimum of 5 inches beyond the bottom of the cabinets.
Page 1 of 6
(714) 482-2320  Fax (714) 482-2337

INSTALLATION INSTRUCTIONS

ELECTRIC COOKTOP MODELS: CTE36P, CTE48P
OWNER: Please retain these instructions for future reference.
READ AND SAVE THESE INSTRUCTIONS

IMPORTANT SAFETY INSTRUCTIONS

required for all models.
feet of the right-rear bottom corner of the cooktop. The junction box must be accessible
from the front of the unit. See FIG – 5.
351 Thor Place
Brea, Ca 92821
grounded by a qualified technician.
Instal Instr Electric Cooktop CTE P Rev B.doc

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CTE36P and is the answer not in the manual?

Questions and answers

Related Manuals for Wind Crest CTE36P

Summary of Contents for Wind Crest CTE36P

  • Page 1: Installation Instructions

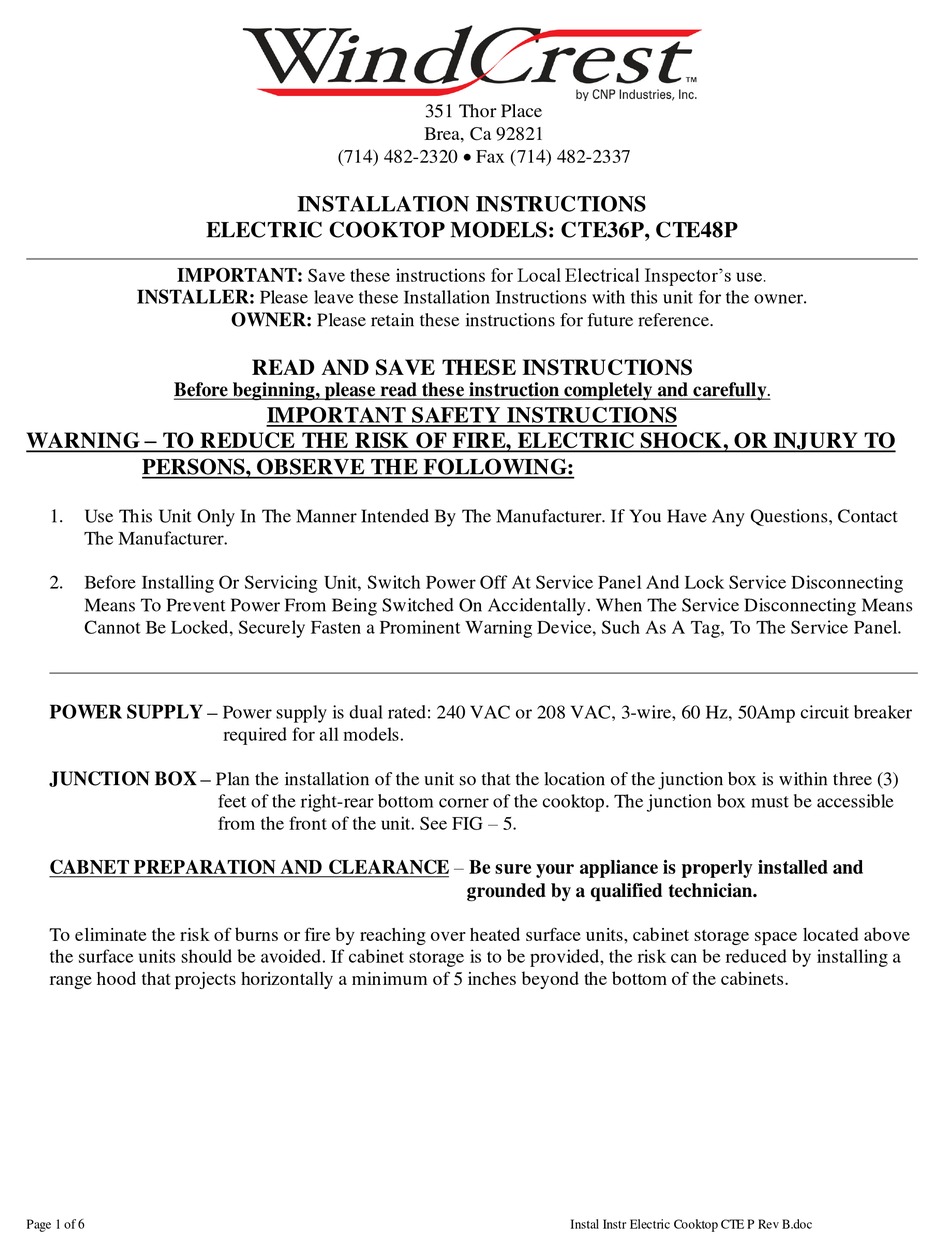

    Brea, Ca 92821 (714) 482-2320  Fax (714) 482-2337 INSTALLATION INSTRUCTIONS ELECTRIC COOKTOP MODELS: CTE36P, CTE48P IMPORTANT: Save these instructions for Local Electrical Inspector’s use. INSTALLER: Please leave these Installation Instructions with this unit for the owner. OWNER: Please retain these instructions for future reference.

  • Page 2: Cooktop Installation

    – Consult counter manufacturer for requirements. SOLID SURFACE COUNTERTOPS Countertops made from natural (i.e. granite) or Solid Surface Materials (i.e. Surell™) require special cutout preparation and installation procedures. Follow all guidelines in preparing the cutout.  Round the cutout corners according to instructions from the countertop manufacturer. ...
  • Page 3 TOP CABINET SIDE WALL BACK WALL COOKING SURFACE A = 30 inches minimum clearance between the top of the cooking surface and the bottom of an unprotected wood or metal cabinet or A = 24 inches minimum when the bottom of wood or metal cabinet is protected by not less than 1/4 inch thick flame retardant Millboard covered with not less than No.
  • Page 4 CAUTION: IF END PLATES ARE USED THE FOLLOWING CUT-OUT DIMENSIONS CHANGE - SEE ATTACHED END PLATE INSTALLATION INSTRUCTION (Notching the Countertop). Dimensional Specifications (inches) MODEL CTE36P 25-9/16 4-1/4 5-1/16 33-7/8 4-1/2 24-3/4 CTE48P 25-9/16 4-1/4 5-1/16 45-3/8 4-1/2 24-3/4 FIG - 2...
  • Page 5 Disconnecting Means Cannot Be Locked, Securely Fasten A Prominent Warning Device, Such As A Tag, To The Service Panel. The Wind Crest cooktop is uniquely designed to have a suspended appearance. The End Plate Kit allows the control panel ends to be covered, achieving a more conventional appearance.
  • Page 6 FIG - 6 CUTOUT FOR COOKTOP USING END PLATES Dimensional Specifications (inches) MODEL CTE36P 25-9/16 4-1/4 5-1/16 33-7/8 4-1/2 24-3/4 36-1/8 DIM "K" SEE NOTCHING THE COUNTERTOP NOTE 2 CTE48P 25-9/16 4-1/4 5-1/16 45-3/8 4-1/2 24-3/4 48-1/8 PAGE 5 FIG - 7...
