INSTALLATION
INSTRUCTIONS

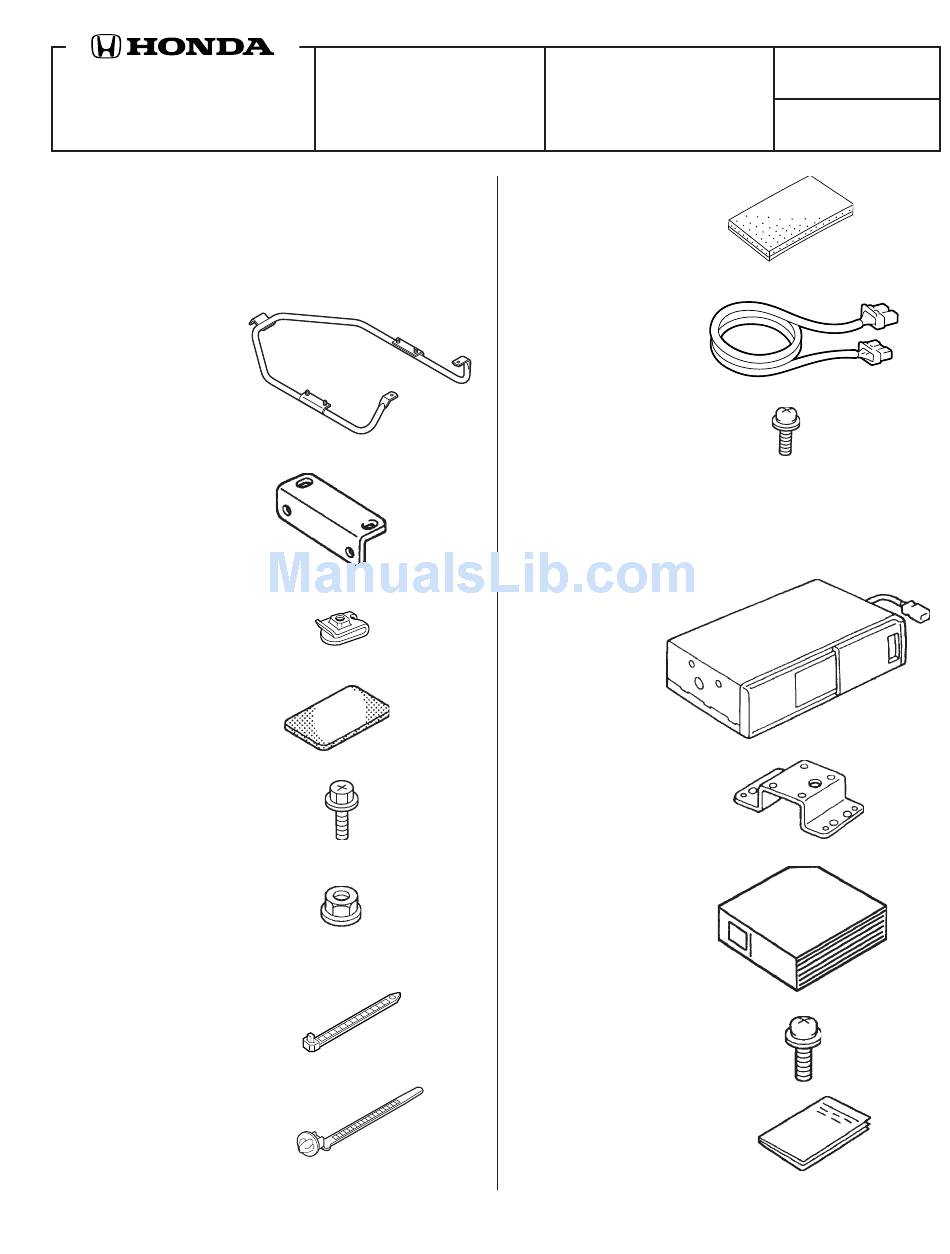

PARTS LIST
CD Changer Attachment (Sold Separately)
P/N 08B26-SNA-101
CD changer bracket
2 Side brackets
3 Clip nuts
3 EPT seals
3 Washer-bolts
4 Flange nuts
15 Wire ties
2 Wire ties with clip
© 2009 American Honda Motor Co., Inc. - All Rights Reserved.
Accessory
CD CHANGER
(TRUNK MOUNT)
8 Cushion tapes
Bus cable
4 Washer-screws
CD Changer Kit (Sold Separately)
P/N 08A26-5E1-101
CD changer
Bracket (Not Used)
8-Disc CD magazine
8 Washer-screws, 4 x 6 mm
Accessory User's
Information Manual
AII 42446 (0908)
Application
2010 CIVIC
4-DOOR
(VP, LX, LX-S, EX, EX-L)
Publications No.
AII 42446
Issue Date
AUG 2009
1 of 11
08V31-SDN-1010-91

Advertisement

   Related Manuals for Honda 08A26-5E1-101

   Summary of Contents for Honda 08A26-5E1-101

  • Page 1

    8-Disc CD magazine 4 Flange nuts 15 Wire ties 8 Washer-screws, 4 x 6 mm 2 Wire ties with clip Accessory User's Information Manual 1 of 11 © 2009 American Honda Motor Co., Inc. - All Rights Reserved. AII 42446 (0908) 08V31-SDN-1010-91...

  • Page 2

    Make sure you have the anti-theft code for the audio unit, then write down the frequencies for the preset buttons. Disconnect the negative cable from the battery. 2 of 11 AII 42446 (0908) © 2009 American Honda Motor Co., Inc. - All Rights Reserved.

  • Page 3

    (Turn the center pin in a counterclockwise 2 HOOKS direction to remove.) RIGHT TRUNK SIDE REAR TRIM 4 CLIPS TRIM PANEL PANEL TRUNK WEATHERSTRIP 3 of 11 © 2009 American Honda Motor Co., Inc. - All Rights Reserved. AII 42446 (0908)

  • Page 4

    CENTER 3 CLIPS CONSOLE SELF-TAPPING COVER SCREWS 2 SCREWS 2 CLIPS CENTER CONSOLE PARKING BRAKE LEVER (Pull up completely.) CENTER CONSOLE 4 of 11 AII 42446 (0908) © 2009 American Honda Motor Co., Inc. - All Rights Reserved.

  • Page 5

    Take care not to damage the clips. FRONT CONSOLE POCKET 2 HOOKS DASHBOARD LOWER COVER 8 CLIPS 5 of 11 © 2009 American Honda Motor Co., Inc. - All Rights Reserved. AII 42446 (0908)

  • Page 6

    Turn over the floor carpet. 22. Route the bus cable connector as shown. FLOOR CARPET Route under the floor carpet. CABLE 6 of 11 AII 42446 (0908) © 2009 American Honda Motor Co., Inc. - All Rights Reserved.

  • Page 7

    VEHICLE CUSHION BRACKET BUS CABLE TAPE CONNECTOR 300 mm WIRE TIES ATTACHMENT LOCATION BUS CABLE 7 of 11 © 2009 American Honda Motor Co., Inc. - All Rights Reserved. AII 42446 (0908)

  • Page 8

    CD changer, then install the four 4 x 8 mm washer-screws. 2 WASHER-SCREWS 4 x 8 mm CHANGER SIDE BRACKETS 2 WASHER-SCREWS 4 x 8 mm 8 of 11 AII 42446 (0908) © 2009 American Honda Motor Co., Inc. - All Rights Reserved.

  • Page 9

    CLIP NUT CHANGER (Place the end of the bracket between the seat panel and clip nut you just installed.) WIRE TIES CD CHANGER BRACKET 9 of 11 © 2009 American Honda Motor Co., Inc. - All Rights Reserved. AII 42446 (0908)

  • Page 10

    38. Connect the bus cable connector to the CD changer connector from the CD changer. CD CHANGER BUS CABLE CD CHANGER CONNECTOR CONNECTOR BUS CABLE 10 of 11 AII 42446 (0908) © 2009 American Honda Motor Co., Inc. - All Rights Reserved.

  • Page 11

    48. Initialize and test the front window auto up/down function. VEHICLE 20-PIN CONNECTOR ANTENNA BUS CABLE LEAD 11 of 11 © 2009 American Honda Motor Co., Inc. - All Rights Reserved. AII 42446 (0908)
