COLORpalette™ User Manual Rev. 4
The COLORpalette™ has an auto-ranging power supply and it can work with an input
voltage range of 100 to 240 VAC, 50/60 Hz. To determine the product's power
requirements (circuit breaker, power outlet, and wiring), use the current value listed on the
label affixed to the product's back panel, or refer to the product's specifications chart. The
listed current rating indicates the product's average current draw under normal conditions.
·
Always connect the product to a protected circuit (circuit breaker or fuse).
Make sure the product has an appropriate electrical ground to avoid the risk
of electrocution or fire.
·
To eliminate unnecessary wear and improve its lifespan, during periods of
non-use completely disconnect the product from power via breaker or by
unplugging it.
Never connect the product to a rheostat (variable resistor) or dimmer circuit, even if
the rheostat or dimmer channel serves only as a 0 to 100% switch.
1.
Wedge the tip of a flat-head screwdriver into the slot of the fuse holder.
2.
Pry the fuse holder out of the housing.
3.
Remove the blown fuse from the holder and replace with a fuse of the exact same
type and rating.
4.
Insert the fuse holder back in place and reconnect power.
Spare fuse holder
(inside safety cap)
Disconnect the product from the power outlet before replacing the fuse.
The product provides power linking via the Edison outlet located in the back of the product.

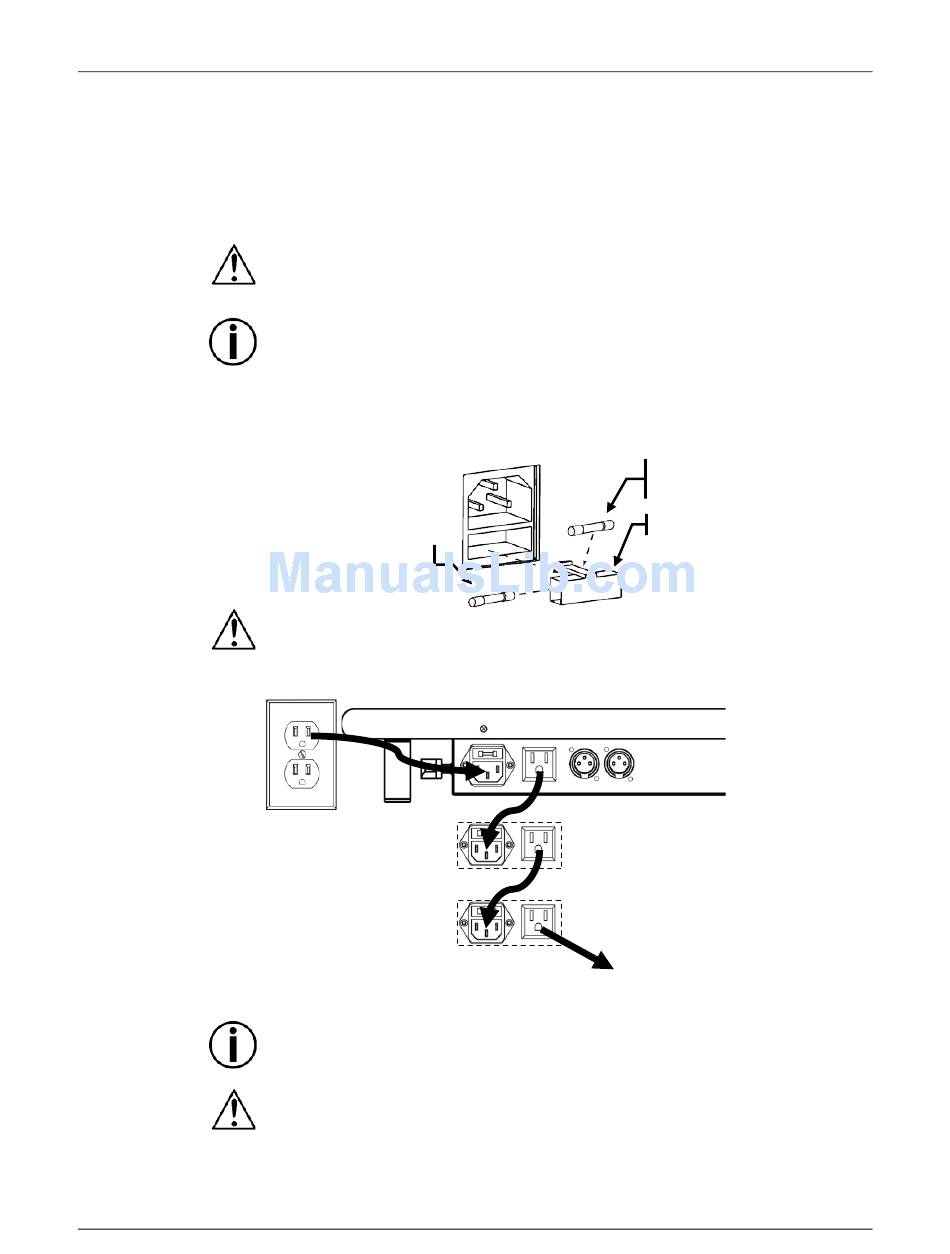

Please see the diagram below for further explanation.
You can power link up to 16 COLORpalette™ products on 120 VAC or up to
31 COLORpalette™ products on 230 VAC.
The power linking diagram corresponds to the North American version of the
product ONLY! If using the product in other markets, you must consult with the
local Chauvet distributor as power linking connectors and requirements may differ
in your country or region.
Installed fuse
(held by plastic clip)
Safety cap
st
1
Product
nd
2
Product
rd
3
Product
Additional
Products
