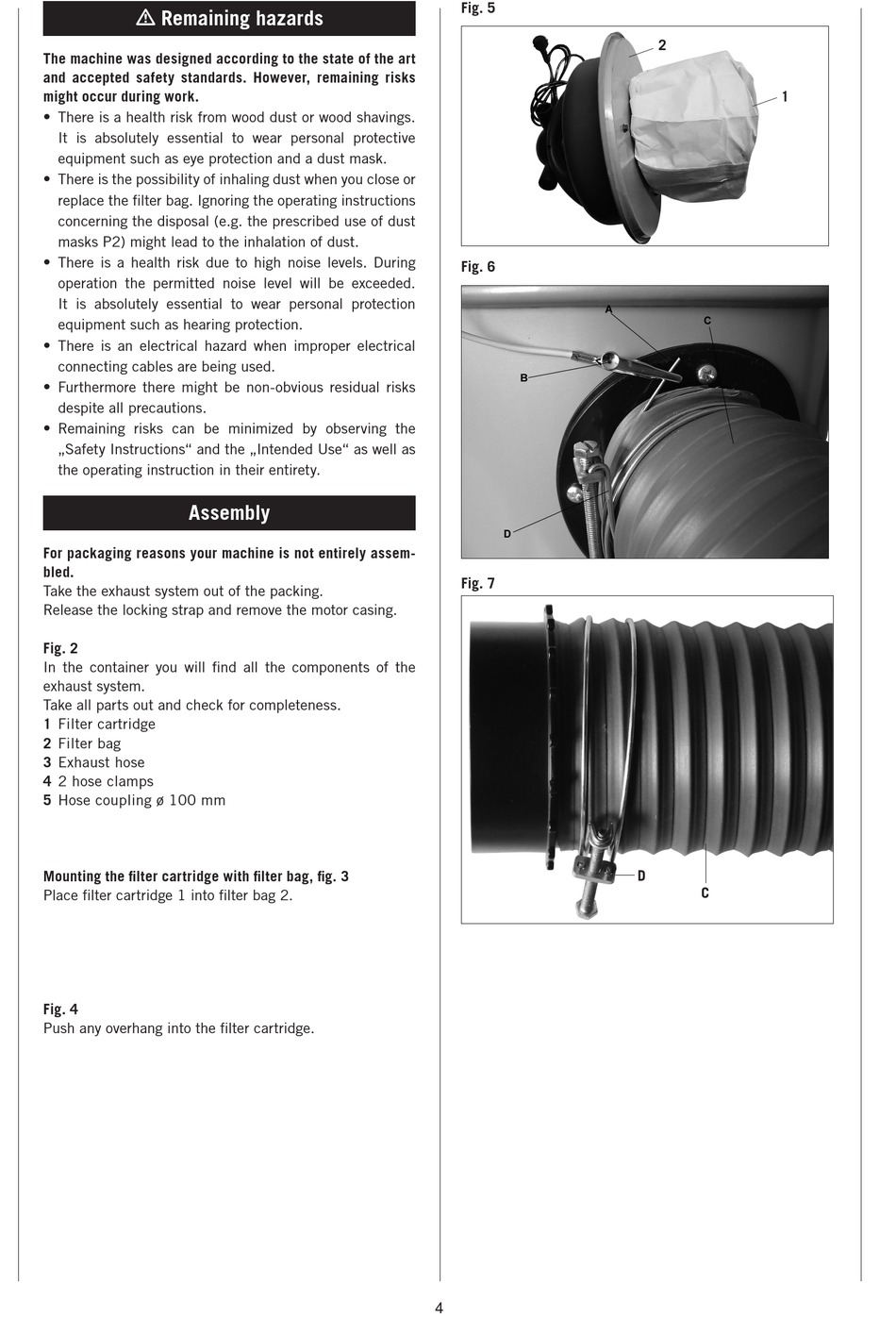

Scheppach ha 1000 Instruction Manual page 5

m Remaining hazards
The machine was designed according to the state of the art
and accepted safety standards. However, remaining risks
might occur during work.
• There is a health risk from wood dust or wood shavings.
It is absolutely essential to wear personal protective
equipment such as eye protection and a dust mask.
• There is the possibility of inhaling dust when you close or
replace the filter bag. Ignoring the operating instructions
concerning the disposal (e.g. the prescribed use of dust
masks P2) might lead to the inhalation of dust.
• There is a health risk due to high noise levels. During
operation the permitted noise level will be exceeded.
It is absolutely essential to wear personal protection
equipment such as hearing protection.
• There is an electrical hazard when improper electrical
connecting cables are being used.
• Furthermore there might be non­obvious residual risks
despite all precautions.
• Remaining risks can be minimized by observing the
„Safety Instructions" and the „Intended Use" as well as
the operating instruction in their entirety.
Assembly
For packaging reasons your machine is not entirely assem-
bled.
Take the exhaust system out of the packing.
Release the locking strap and remove the motor casing.
Fig. 2
In the container you will find all the components of the
exhaust system.
Take all parts out and check for completeness.
1 Filter cartridge
2 Filter bag
3 Exhaust hose
4 2 hose clamps
5 Hose coupling ø 100 mm
Mounting the filter cartridge with filter bag, fig. 3
Place filter cartridge 1 into filter bag 2.
Fig. 4
Push any overhang into the filter cartridge.
Fig. 5
Fig. 6
Fig. 7
