installation instructions

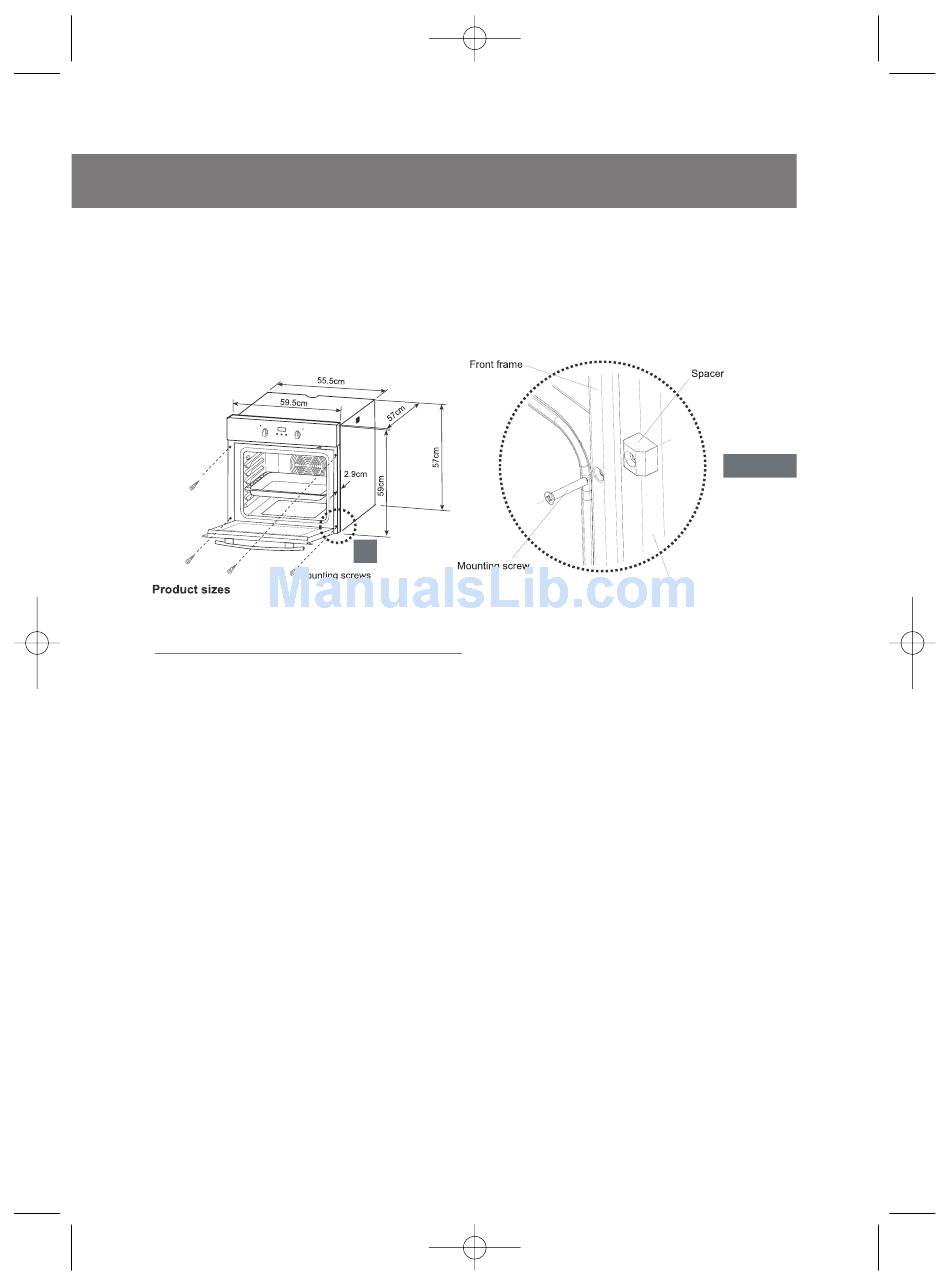

2 Once the oven has been positioned into the gap, the front frame of the oven can
be fixed to the surrounding kitchen unit using the mounting screws and secured into
place with the spacers. (refer to detail B).
Making an electrical connection
An approved suitable cable must be connected from the Consumer Unit (main fuse box)
and be protected by its own 30amp fuse or Micro Circuit Breaker (MCB).
The electrician must provide a fused double-pole isolation switch, which disconnects
both the line (live) and neutral conductors. The fused switch should be fitted to the
kitchen wall, above the worksurface and to the side of the oven, not above it, in
accordance with IEE regulations. Connect the fused switch to a junction box which
should be fitted on the wall about 61cm (24'') above floor level and behind the oven.
The ovens power supply cable can then be connected. Connect one end to the junction
box and connect the other end to the ovens power connection box which is located at
the back of the oven. Remove the cover of the power connection box and install the
cable, in accordance with the connection diagram. The power supply cable must be
postioned away from direct heat sources. It should not be subjected to a temperature
rise of more than 50ºC above room temperature.
14
23/5/06 17:26
B
Page 14
Kitchen unit
DETAIL B
