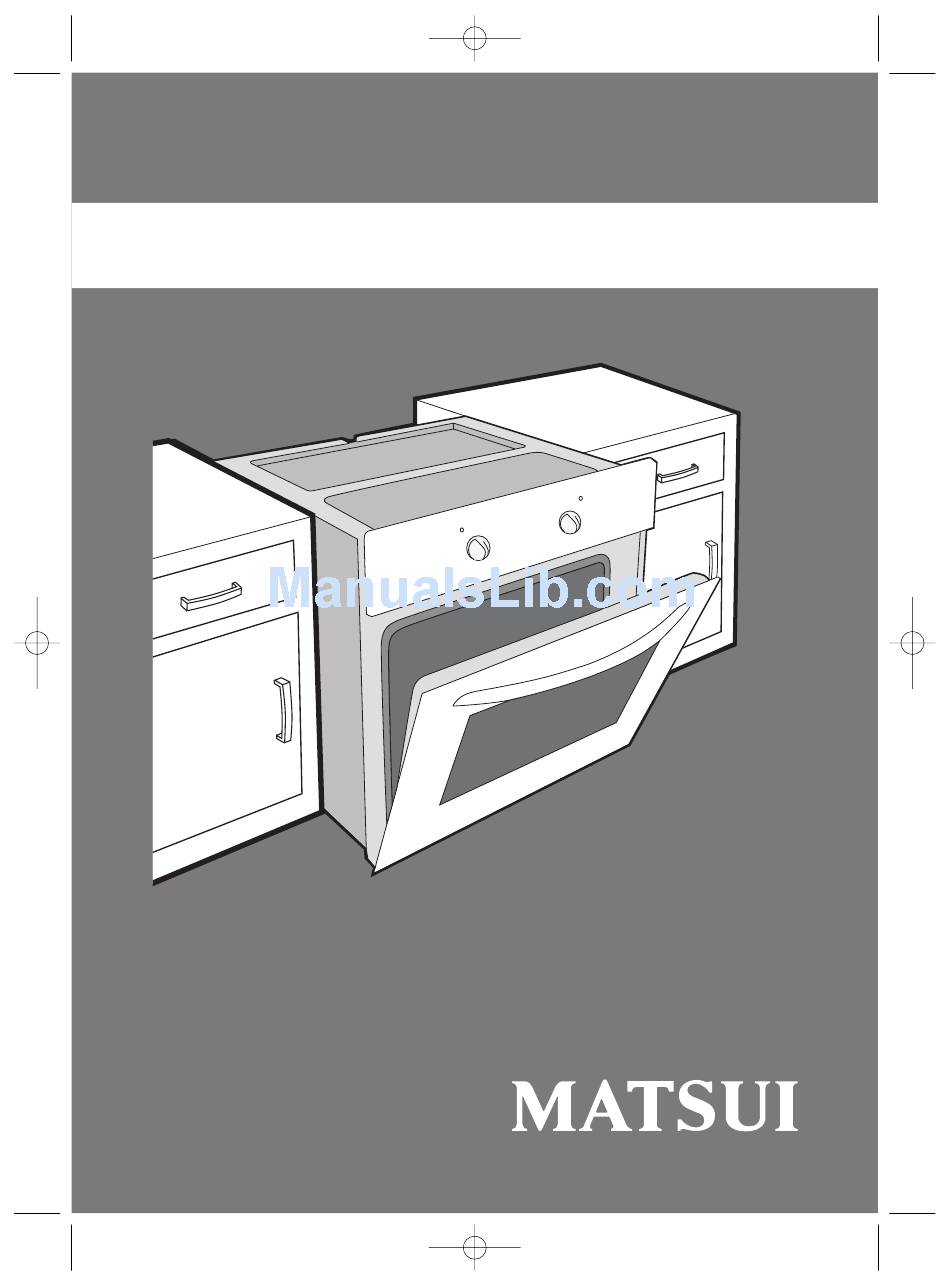

- Page 1 MSF60SS-MSS60WH-Oven guide D3.qxd 23/5/06 17:26 Page 1 user guide Built-in Oven MSF60WH/MSF60SS/MSS60WH...
-
Page 2: Table Of Contents
MSF60SS-MSS60WH-Oven guide D3.qxd 23/5/06 17:26 Page 2 contents getting to know your built-in oven ........important safety notes . -
Page 3: Getting To Know Your Built-In Oven
Page 3 getting to know your built-in oven Thank you for choosing this Matsui built-in oven. We hope the following information will help you to familiarise yourself with the features of the oven, and to use it successfully and safely. - Page 4 MSF60SS-MSS60WH-Oven guide D3.qxd 23/5/06 17:26 Page 4 getting to know your built-in oven Wire shelf Tray Broil pan and handle set PLEASE NOTE: The electrical connection of this hob should be carried out by a qualified electrician, according to the instructions in this guide and in compliance with the current regulations.
-
Page 5: Important Safety Notes
MSF60SS-MSS60WH-Oven guide D3.qxd 23/5/06 17:26 Page 5 important safety notes We have included this section for your safety. Please read this information carefully before using your built-in oven. WARNING: It is hazadous for anyone other than authorised service personal, to carry out servicing or repairs which involve the removal of covers. -
Page 6: Control Panel
When the temperature falls below the set temperature, the heating element will again be turned on and the light will illuminate. MSF60WH and MSF60SS Oven with fan Symbol The oven’s light, the red power light and the fan will be turned on. - Page 7 MSF60SS-MSS60WH-Oven guide D3.qxd 23/5/06 17:26 Page 7 control panel MSS60WH Oven without fan Symbol The oven’s thermostat, power lights and the lower and upper heating elements will be switched on. The oven’s lower heating element will be switched on. The oven’s thermostat, power lights and the grill element will be switched on.
-
Page 8: Instructions For Use
MSF60SS-MSS60WH-Oven guide D3.qxd 23/5/06 17:26 Page 8 instructions for use Using the oven Select the oven function you require. Select the temperature you require. Before placing food in the oven you may need to pre-heat the oven for 10 minutes. The red temperature light will go out when the chosen temperature has been reached. - Page 9 Using the elements Defrost function [MSF60WH and MSF60SS only] To use the defrost function, take your frozen food and place it in the oven on the third shelve/grill rack from the bottom. It is recommended that you place an oven tray under the defrosting food, to catch the water accumulated due to melting ice.
-
Page 10: Hints And Tips
MSF60SS-MSS60WH-Oven guide D3.qxd 23/5/06 17:26 Page 10 hints and tips Baking tips Always place baking tins in the centre of the wire shelf. Make sure you use bakeware that is oven proof. Do not place bakeware too close to the rear of the oven wall. You can influence the degree of browning by changing the temperature setting. -
Page 11: Cleaning The Outside Of The Oven
MSF60SS-MSS60WH-Oven guide D3.qxd 23/5/06 17:26 Page 11 hints and tips Cleaning the outside of the oven You should regularly wipe over the control panel, oven door and oven sides using a soft cloth and liquid detergent as spilt liquids may damage the enamel. Wash enameled or chrome plated parts of the oven with warm soapy water or with non-abrasive detergents. -
Page 12: Removing The Door For Easier Cleaning
MSF60SS-MSS60WH-Oven guide D3.qxd 23/5/06 17:26 Page 12 hints and tips Removing the door for easier cleaning We recommend you have someone to assist you during removal of the door. Open the door completely. The door hinge has a small latch. Lift the latch on both hinges. Lift the door slightly as if closing, and then with both hands supporting the door, pull it away from the oven. -
Page 13: Installation Instructions
MSF60SS-MSS60WH-Oven guide D3.qxd 23/5/06 17:26 Page 13 installation instructions WARNING: The electrical connection of this oven should be carried out by a qualified electrician, according to the instructions in this guide and in compliance with the current regulations. In the event of any damage that occurs as a result of improper connection or installation, the warranty will not be valid. - Page 14 MSF60SS-MSS60WH-Oven guide D3.qxd 23/5/06 17:26 Page 14 installation instructions Once the oven has been positioned into the gap, the front frame of the oven can be fixed to the surrounding kitchen unit using the mounting screws and secured into place with the spacers. (refer to detail B). DETAIL B Kitchen unit Making an electrical connection...
- Page 15 MSF60SS-MSS60WH-Oven guide D3.qxd 23/5/06 17:26 Page 15 installation instructions Power connection box For this oven, the cable type must be H05V V-F 3 x 1.5mm and the connection should be made as in the diagram. 3X1.5 mm , H05VV-F type power supply cord must be used. Grounding lead must be connected to screw with symbol.
-
Page 16: Specifications
MSF60SS-MSS60WH-Oven guide D3.qxd 23/5/06 17:26 Page 16 specifications Model MSF60SS/MSF60WH MSS60WH Rated Voltage (V) 230-240 230-240 Rated 'Frequency (Hz) Power (W) 3200 3200 Current (A) 13-14 13-14 Top element (W) 1200 1200 Bottom element (W) 1100 1100 Grill (W) 2000/3200... -
Page 17: Troubleshooting
MSF60SS-MSS60WH-Oven guide D3.qxd 23/5/06 17:26 Page 17 troubleshooting If the oven is not working: Check that the fused switch is turned on at the wall switch. Check that the fuse in the wall switch has not blown, and that the mains lead is undamaged. -
Page 18: Disposal
MSF60SS-MSS60WH-Oven guide D3.qxd 23/5/06 17:26 Page 18 disposal Old ovens still have some residual value. An environmentally friendly method of disposal will ensure that valuable raw materials can be recovered and used again. Up to date information concerning options for disposing of your old oven and packaging from the new one can be obtained from your retailer or local council. - Page 19 MGH60WH D3.qxd 27/6/06 10:12 Page 20 This symbol on the product or in the instructions means that your electrical and electronic equipment should be disposed at the end of its life separately from your household waste. There are separate collection systems for recycling in the EU. For more information, please contact the local authority or your retailer where you purchased the product.
