Summary of Contents for GME GR100

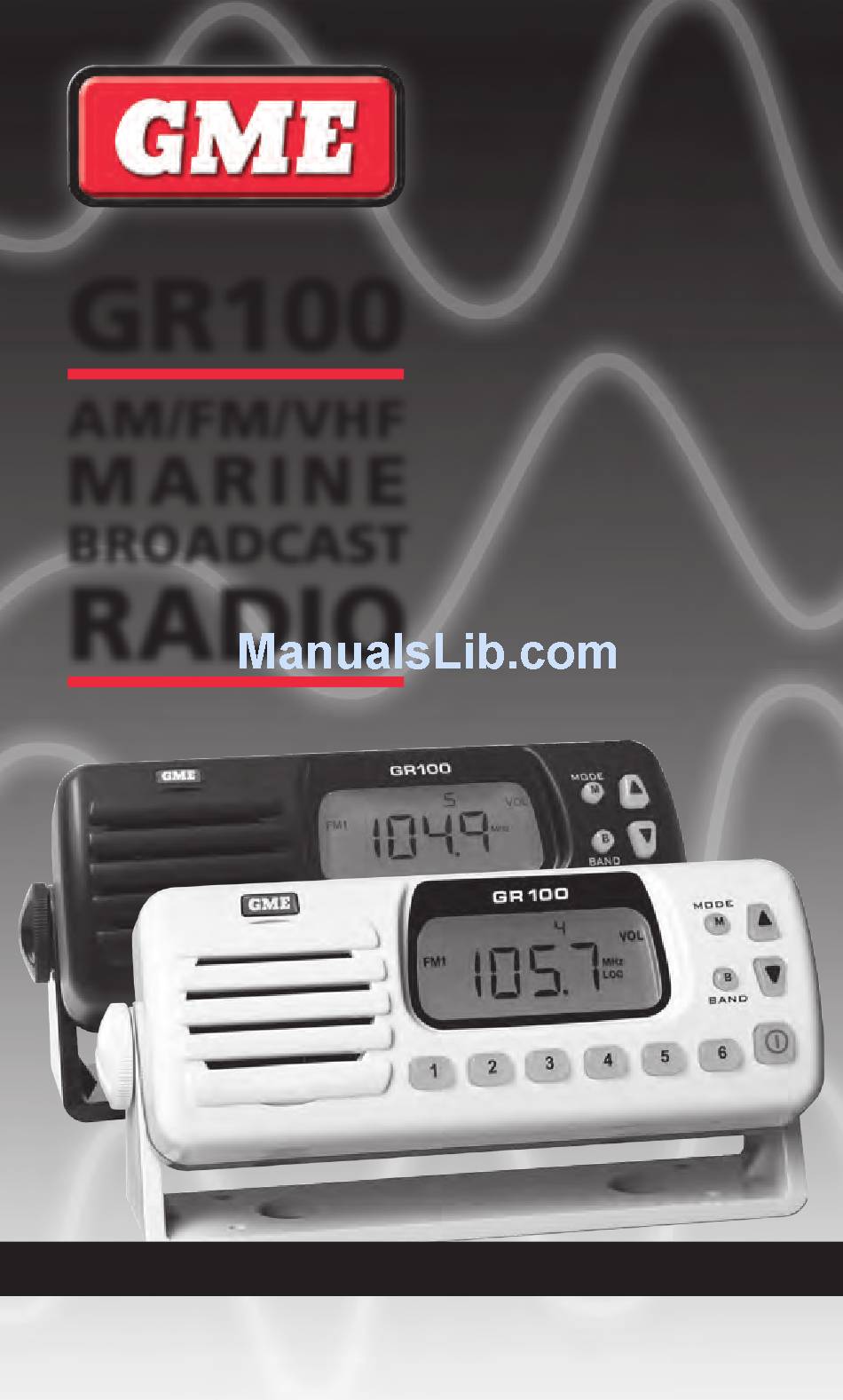

- Page 1 GR100 AM/FM/VHF M A R I N E BROADCAST RADIO I N S T R U C T I O N M A N U A L...
-
Page 2: Table Of Contents
GR100 ON and OFF . . . . . . . . . . . . . . . . . -
Page 3: Features
In-dash flush mounting kits – MK100W (white), MK100B (black), MK002W, MK002B . Rear flush mount kit – MK600 Choose from a range of GMe antennas Choose from a range of GMe speakers Cabin cover – CVR001 (white), CVR001B (black) . -
Page 4: Compliance
‘shadow’ may be present behind the object which may result in poor reception in that area . LCD DiSPLAY Weather Channels VHF Channels Memory number Band selection Modes Frequency Page 4 Instruction Manual GR100... -
Page 5: Controls
. Band Key (B) the GR100 has 7 selectable frequency bands labelled LW, sW, aM1, aM2, FM1, FM2 and VHF . each press of the BaND key cycles to the next band in sequence and a corresponding icon (LW, sW, aM1, aM2, FM1, FM2 or VHF) is displayed . -
Page 6: Up/Down Keys
OFF . note: When the GR100 is switched off or the power is interrupted, it will remember the last state that it was set to and return to that state when it is switched back on . - Page 7 . note: the balance mode is only available when the external speakers are attached . If running the GR100 from the internal monitor speaker, the balance function is skipped when the Mode key is pressed .
-
Page 8: Tuning For Stations
Band key for 3 seconds . the GR100 will display ‘e’ at the top of the display for european or u for usa . the e or u will disappear when any of the preset memory buttons are pressed . -
Page 9: Memory Keys
MeMOry KeyS the GR100 has 6 preset memory keys which allow up to 6 frequencies to be stored and recalled within each band . Because there are two identical aM bands and two identical FM bands, this allows 12 aM and 12 FM preset memories . the memories can be stored either manually or automatically . -
Page 10: Local/Dx Mode
LOCaL/dX MOde the Local/DX mode controls the receiver’s sensitivity when in the FM mode . the GR100 can be set to high sensitivity for long distance reception (DX) or low sensitivity for local reception (LOC) . Briefly press the Mode key six times (one press past the aMs selection) . the frequency will be displayed along with the LOC symbol . -
Page 11: Mounting The Gr100
. screw or bolt the bracket into position . the mounting method will depend on the surface to which the bracket is being attached . Refit the GR100 to the bracket and adjust the unit to the correct position before tightening the gimbal knobs . -
Page 12: Electrical Wiring
GR100 is suitable for either negative or positive ground systems . note: the GR100 has an over voltage detector to indicate when excessive voltage is being applied to the radio . the over voltage detector is triggered when the voltage being applied to the power leads exceeds 18 Volts DC . -
Page 13: Antenna Connection
GR100’s output circuit . the GR100 is a two speaker system that requires one pair of wires for each speaker . avoid shorting the speaker wires together or touching them to the supply voltage or to ground . -
Page 14: Specifications
Unit Weight: 360 g approx . Flush Mounting Depth: 26 mm min . enVIrOnMenTaL Ingress Protection Rating: IP55 - Refer: www .gme .net .au/IPRatings/IPRatings .html Temperature Range: -10°C to +60°C Solar Radiation: Case uV stabilised Compass Safe Distance: 200 mm... -
Page 15: Standard Communications Contract Warranty
(or another period we agree to in writing) . During this period and as our sole liability or contributed to by the other party, its contractors or agents . to you under this warranty, we agree to, GR100 Instruction Manual Page 15... - Page 16 Part No. 310195 Drawing. No.: 41780-6...
Need help?
Do you have a question about the GR100 and is the answer not in the manual?
Questions and answers
what are the pre set vhf channels and can they be changed
The GME GR100 displays standard VHF marine channel numbers 1-28 and 60-88. If the USA standard is selected, an additional ten NOAA weather channels are available. These channels are preset and cannot be changed, but users can store and recall up to six preset frequencies per band in the memory keys.
