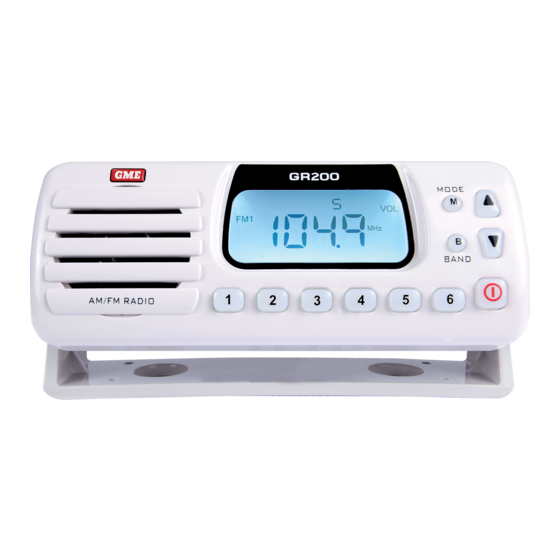

  • Page 1 INNOVATIVE ELECTRONICS GR200 AM/FM/VHF MARINE BROADCAST RADIO I N s t r u c t I o N m a N u a l...

  • Page 2: Table Of Contents

    Turning the GR200 ON and OFF . . . . . . . . . . . . . . . . .

  • Page 3: Features

    In-dash flush mounting kits – MK100W (white), MK100B (black), MK002W, MK002B . Rear flush mount kit – MK600 Choose from a range of GMe antennas Choose from a range of GMe speakers Cabin cover – CVR001W (white), CVR001B (black) .

  • Page 4: Compliance

    ‘shadow’ may be present behind the object which may result in poor reception in that area . LCD DiSPLAY Weather Channels VHF Channels Memory Number Band Selection Modes Auxiliary Input Frequency Page 4 GR200 INS T RU C T IO N M A N UA L...

  • Page 5: Controls

    . BaNd Key (B) The GR200 has 7 selectable frequency bands plus an Auxiliary audio input . The frequency bands available are Long Wave (LW), Short Wave (SW), AM (AM1 and AM2), FM (FM1 and FM2) and VHF Marine (VHF) . The Auxiliary input mode allows audio from external sources such as MP3 players to be connected via a 3 .5 mm socket lead on the rear panel .

  • Page 6: Up/Down Keys

    The radio will turn OFF . Note: When the GR200 is switched off or the power is interrupted, it will remember the last state that it was set to and return to that state when it is switched back on .
  • Page 7 The balance setting controls the audio balance between the left and right speaker . Note: The balance mode is only available when the external speakers are attached . If running the GR200 from the internal monitor speaker, the balance function is skipped when the Mode key is pressed .

  • Page 8: Tuning For Stations

    Owners in the USA or Canada should select the USA or Canadian standard . To switch between the standards, press and hold the Band key for 3 seconds . The GR200 will display ‘e’ at the top of the display for european, ‘U’ for USA or ‘C’ for Canada . The ‘e’, ‘U’...

  • Page 9: Memory Keys

    Keys The GR200 has 6 preset memory keys which allow up to 6 frequencies to be stored and recalled within each band . Because there are two identical AM bands and two identical FM bands, this allows 12 AM and 12 FM preset memories . The memories can be stored either manually or automatically .

  • Page 10: Local/Dx Mode

    The Local/DX mode controls the receiver’s sensitivity when in the FM mode . The GR200 can be set to high sensitivity for long distance reception (DX) or low sensitivity for local reception (LOC) . Briefly press the mode key repeatedly until AMS is selected then press ONCe more keys to toggle LOCAL or DX modes .

  • Page 11: Mounting The Gr200

    . The mounting method will depend on the surface to which the bracket is being attached . Refit the GR200 to the bracket and adjust the unit to the correct position before tightening the gimbal knobs .

  • Page 12: Electrical Wiring

    The GR200 is suitable for either negative or positive ground systems . Note: The GR200 has an over voltage detector to indicate when excessive voltage is being applied to the radio . The over voltage detector is triggered when the voltage being applied to the power leads exceeds 18 Volts DC .

  • Page 13: Antenna Connection

    GR200’s output circuit . The GR200 is a two speaker system that requires one pair of wires for each speaker . Avoid shorting the speaker wires together or touching them to the supply voltage or to ground .

  • Page 14: Specifications

    VHF: -105 dBm 12 dB SINAD mecHaNIcal Unit Dimensions: 164 (W) x 65 (H) x 70 (D) mm Unit Weight: 482 g approx . Flush Mounting Depth: 55 mm min . Page 14 GR200 INS T RU C T IO N M A N UA L...

  • Page 15: Standard Communications Contract Warranty

    Ingress Protection Rating: IP55 - Refer: www .gme .net .au/IPRatings Temperature Range: -10°C to +60°C Solar Radiation: Case UV stabilised Compass Safe Distance: 200 mm eXterNal coNNectIoNs DC Supply: 2 Pin polarised plug socket External Speakers: 3 .5 mm mini phone jacks Auxiliary input: 3 .5 mm stereo phone jack *all specifications are typical and subject to change without notice or obligation.
  • Page 16 Unit B, 22-24 College St, GLADeSVILLe 2111 . T: (02) 9879 8888 F: (02) 9816 4722 aucKlaNd, 2/24 Bishop Dunn Pl, east Tamaki, MANUKAU 2163 NZ . T: (09) 274 0955 F: (09) 274 0959 For customers outside Australia and New Zealand please contact your local GMe retailer or email:export@gme.net.au www.gme.net.au...
