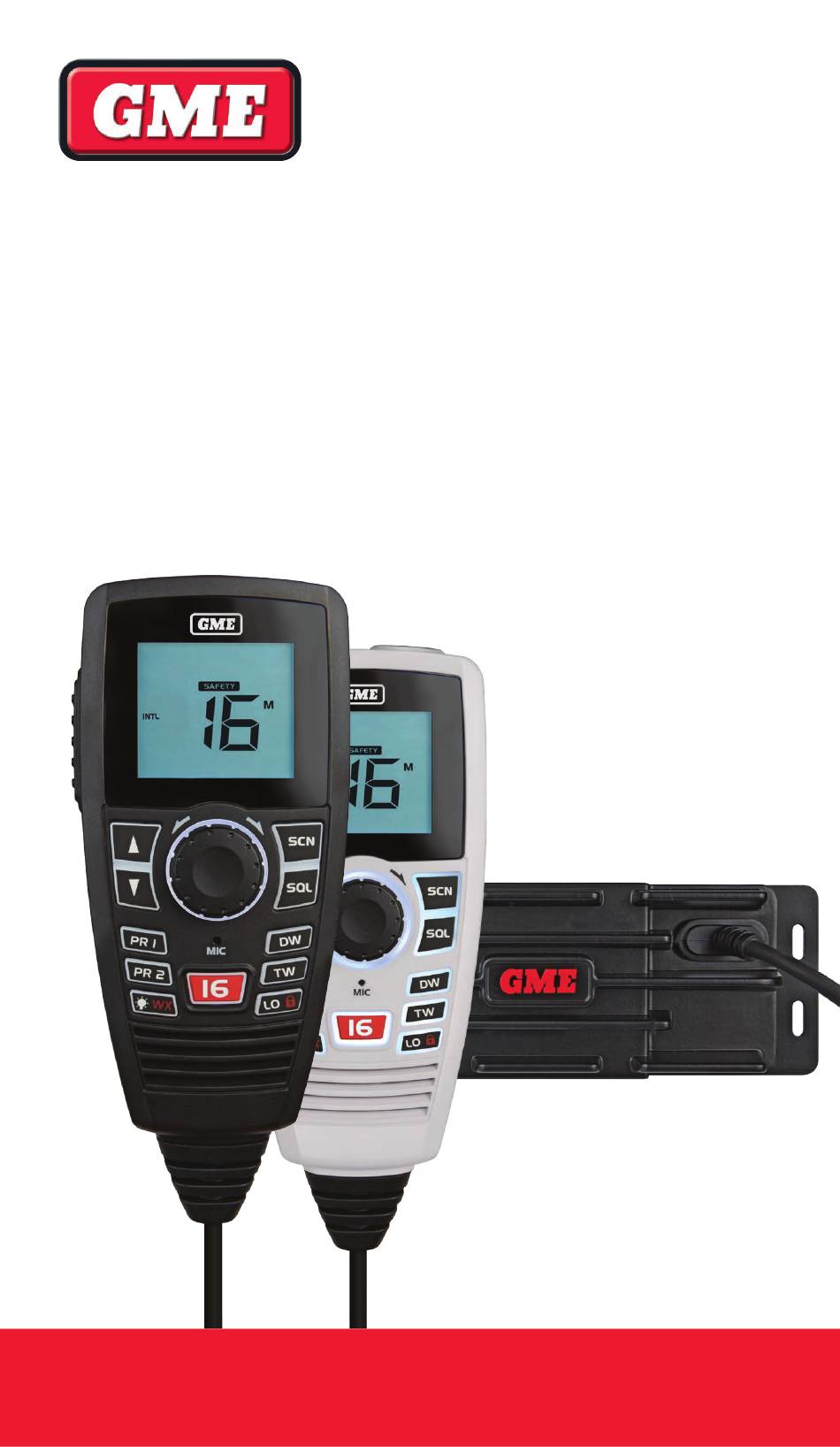

- Page 1 VHF MARINE RADIO With Remote Full Function LCD Controller Microphone GX750 INSTRUCTION MANUAL G X 7 5 0 I N S T R U C T I O N M A N U A L...
-
Page 2: Table Of Contents
CONTENTS WARNING/SAFETY INFORMATION ....................3 OPERATOR QUALIFICATIONS ....................3 INTRODUCTION ........................3 FEATURES ..........................3 SUPPLIED WITH ........................4 RANGE ............................4 CONTROLS ..........................4 OPERATION ..........................5 On/Off ..........................5 Volume ..........................5 Adjusting the squelch .......................6 Channel selection ......................6 Keypad lock........................7 Transmitting ........................7 Channel 16 ........................7 Display backlighting ......................8 High/Low power selection ....................8 Working channel memories ....................8 Dual Watch key (DW) .......................8... -
Page 3: Warning/Safety Information
Congratulations. You have just purchased one of the most technically advanced VHF marine radios in the world. The GME GX750 is a VHF radio designed to operate in the 156–163 MHz marine band. The GX750 has a number of enhanced features including full function LCD controller microphone, user programmable Channel Scanning, Dual Watch and Triple Watch functions and two programmable ‘Instant’... -
Page 4: Supplied With
SUPPLIED WITH GX750 main unit S0239 to FME adaptor (AD513) 8 pin panel socket (MK013B/W) GX750 LCD controller microphone (MC750B/W) DC power lead (LE029) Mounting hardware 500 mm interconnecting lead (LE106) Microphone bracket (MB210B/W) Instruction manual Microphone clip (MB209B/W) Cable Tie RANGE The range of VHF transmissions depend on antenna height, transmitter power and the terrain over which the signals pass. -
Page 5: Operation
LCD CONTROLLER Power MICROPHONE Push-To-Talk Channel Scan Volume Up Squelch Volume Down Microphone Priority 1 Dual Watch Priority 2 Triple Watch Lamp/Weather Low Power/ Channels Keypad Lock Speaker Channel 16 OPERATION ON/OFF To turn the GX750 ON, press and hold the key. -
Page 6: Adjusting The Squelch
ADJUSTING THE SQUELCH To open the squelch, briefly press the SQL key. A low beep will be heard and the squelch will open. Briefly press the SQL key again to close the squelch. A high beep will be heard and the squelch will be restored to its preset level. -
Page 7: Keypad Lock
Once the required channel set is selected, hold the 16 key to return to normal operation. • NOTE: The radio will automatically return to normal operation after 20 seconds. NOTE: Weather channels are also available when the USA and Canada channel sets are selected. -
Page 8: Display Backlighting
DISPLAY BACKLIGHTING The LCD display and keys are backlit for easy viewing at night. Brightness Adjustment To set the brightness of the LCD backlighting, briefly press the key. Each press will cycle through the following brightness settings. Bright Colour Selection To change the backlight colour, press and hold the channel control. -
Page 9: Dual Watch Features
key. A high beep will be heard and the ‘DW’ icon will appear on the display. The GX750 will now monitor both the selected channel AND channel 16 by alternating equally between them. To cancel the Dual Watch Briefly press the DW key to return to normal operation. A low beep will be heard. DUAL WATCH FEATURES If a signal appears on the selected channel Scanning will pause on the selected channel but channel 16 will continue to be monitored every... -
Page 10: Triple Watch Features
To use the Triple Watch mode, first program your priority channel into the PR1 memory, then select your preferred working channel by rotating the channel control. Now press the TW key. A high beep will be heard and the ‘TW’ icon will be displayed. The GX750 will now monitor channel 16, the PR1 channel and the selected channel by alternating equally between them. -
Page 11: Scanning
SCANNING The scan function allows the GX750 to scan a series of user selected channels looking for activity. Scanning is done in an ascending sequence at a rate of 10 channels per second. Channels can be selected and stored for scanning from any of the available channels. e.g. -
Page 12: Installation
To switch immediately to a stored working channel (PR1 or PR2) Briefly press the PR1 or PR2 key. Scanning will be cancelled and the radio will switch to the channel stored in the selected memory. SCANNING NOTES 1. Each channel set has its own independent scan memory. i.e. Scan channels stored under the International channel set can be different to those stored under the USA or Canadian channel sets. -
Page 13: Selecting A Location
SELECTING A LOCATION It is advisable to spend a little time selecting the best location for your GX750. The radio is a modular design which allows the main unit to be discretely mounted out-of-sight behind the dashboard or control panel. The chosen location should provide sufficient space to reach the connectors and allow some airflow for the heat sink. - Page 14 DC connections Connect the RED power lead to the Positive (+) side of the battery or to an accessory point in the vessel or vehicle’s fuse box. Connect the BLACK power lead to the Negative (-) side of the battery or to a ground point in your vessel or vehicle.
-
Page 15: Antenna Installation
GME have a large range of suitable VHF Marine antennas to suit most installations and applications. We recommend you contact your local dealer for advice, or visit gme.net.au. -
Page 16: Specifications
Noise suppression The inherent design of VHF FM radios results in a high level of resistance to ignition and electrical interference. However in some installations it may be necessary to take additional steps to help reduce or eliminate noise interference. During installation, try to route the DC battery leads, the antenna lead or any accessory wires away from the engine compartment, ignition or alternator wiring. -
Page 17: Mechanical
Blocking Rejection: > 100 dB RF Bandwidth: < 4 MHz Switching Bandwidth: > 10 MHz Frequency Response: -6 dB per octave de-emphasis, 300 Hz – 3 kHz, +1 - 3 dB Audio Output Power: 3 watts average into external 4 Ohm speaker 2 watts average into internal speaker Audio SN: >... -
Page 18: International Vhf Marine Channels
INTERNATIONAL VHF MARINE CHANNELS Channel Simplex TX Frequency RX Frequency Comment 156.050 160.650 Public correspondence 156.100 160.700 Public correspondence 156.150 160.750 Public correspondence 156.200 160.800 Public correspondence 156.250 160.850 Public correspondence 156.300 156.300 Intership 156.350 160.950 Public correspondence 156.400 156.400 Intership 156.450 156.450... -
Page 19: Standard Communications Warranty Against Defects
