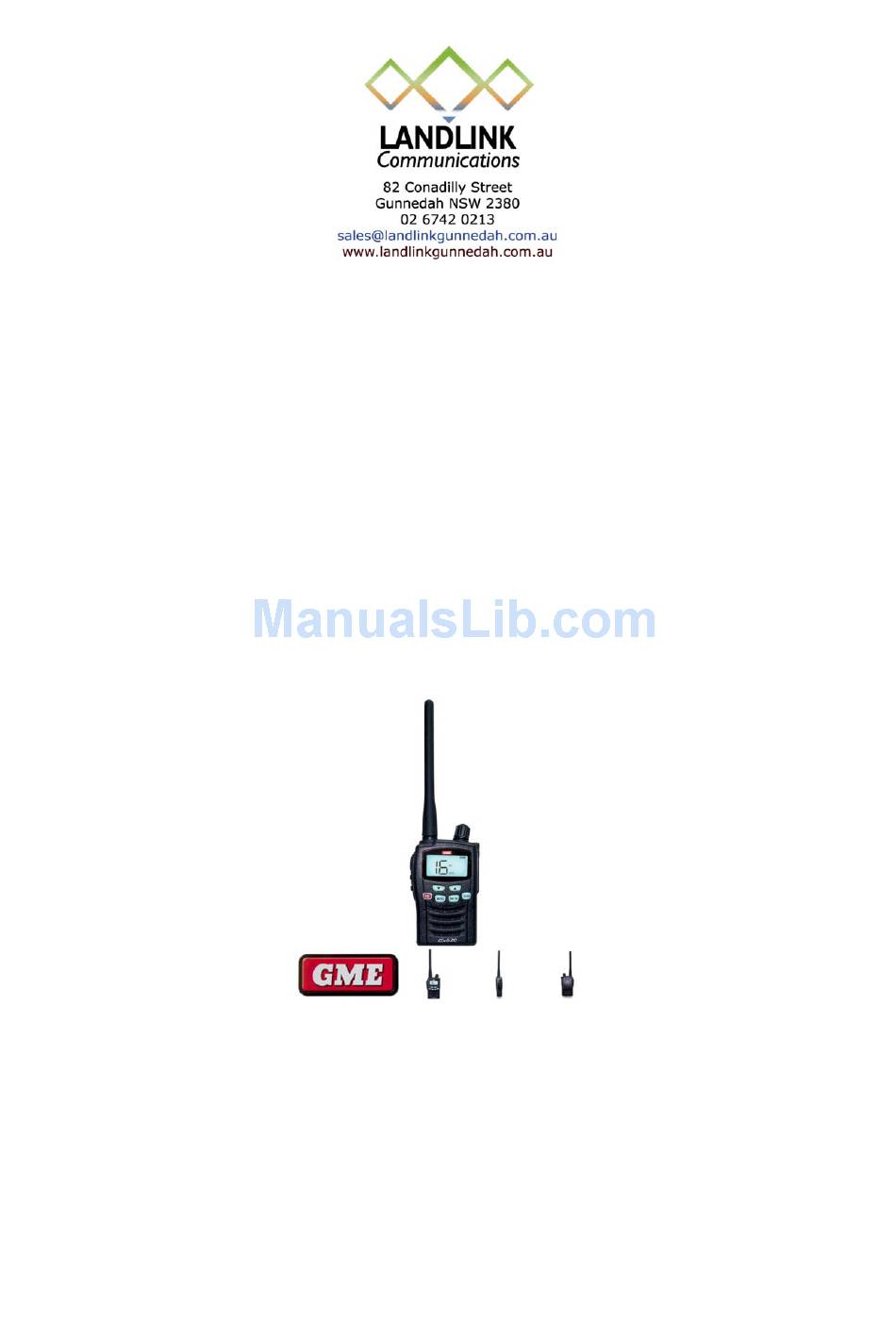

- Page 1 GX620 VHF Marine Handheld Radio Supplied with: GX620 radio Replaceable flexible antenna Li-Ion battery pack (1000 mAh) Charging cradle Carry case 12 V DC in-dash adapter Instruction manual...
- Page 2 GX620 VHF Marine Handheld Radio Big Performance from a small package. The GME GX620 Handheld Marine VHF Radio offers boat owners and marine enthusiasts a substantially lower cost portable option without sacrificing features or compromising on quality. With most of the features of the larger 25 Watt fixed-mount marine VHF radios,...
- Page 3 Compliances AS/NZS 4415.2:2003 Frequency Range 156.025 to 162.025 MHz Channel Set International channels; USA; Canada; USA weather channels Modulation Frequency Stability ± 5.0 ppm Dual Watch Monitor time - 180 ms/over 2 sec Scan Speed 10 ch/sec Channel Spacing 25 kHz Supply Voltage Range Int.
- Page 4 TRANSMITTER Output Power Low 1 Watt High 4.8 Watts Frequency Deviation ± 5 kHz max. + 20 dB limiting @ 1 kHz Frequency Response + 6 dB per octave Demodulated S/N >40 dB weighted Modulation ± 5 kHz max. Current Consumption High: 1.4 Amp Low: 550 mA RECEIVER...
- Page 5 2nd: 450 kHz Modulation Frequency Response -6 dB per octave; 300 Hz - 3 kHz; +1 - 3 dB Intermodulation Rejection >65 dB Blocking Rejection >90 dB Spurious Rejection >65 dB Audio Output Power 500 mW @ 8 Ohms Audio S/N >40 dB Conducted Spurious Emission >-57 dBm...
-
Page 6: External Connections
Temperature Range -10˚C to +60˚C Compass Safe Distance 200 mm EXTERNAL CONNECTIONS Microphone 3 pin speaker mic *All specifications are typical and subject to change without notice or obligation Standard Communications Pty Ltd Copyright © 2013 ...
