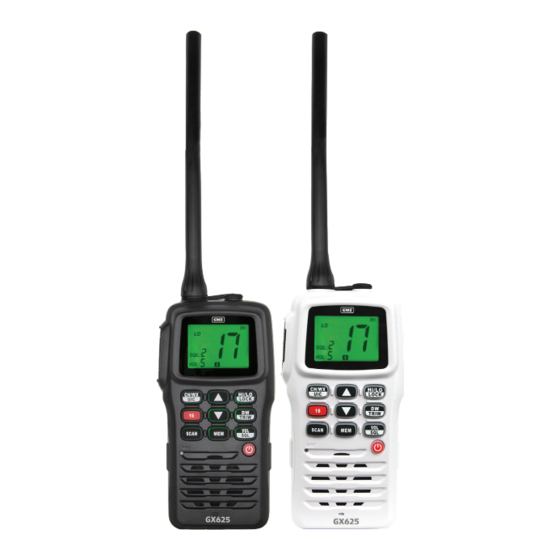

GME GX625W Instruction Manual

Vhf marine radio
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
VHF Marine Radio
GX625
I N S T R U C T I O N M A N U A L

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the GX625W and is the answer not in the manual?

Questions and answers

Related Manuals for GME GX625W

Summary of Contents for GME GX625W

  • Page 1 VHF Marine Radio GX625 I N S T R U C T I O N M A N U A L...

  • Page 2: Table Of Contents

    Battery Pack – BP025 RF RADIATION INFORMATION ..........3 INTRODUCTION RF Radiation Profile ............3 Congratulations on purchasing this fully featured GME VHF RF Radiation Safety ............3 Marine Radio, complete with Float & Flash technology. Your OPERATING RULES..............4 GX625 has been built to offer excellent value by combining Radio Operator Qualifications ..........4...

  • Page 3: Rf Radiation Information

    FCC Regulations Rotate until tight Federal Communication Commission (FCC) requires that all radio communication products should meet the requirements Antenna set forth in the above standards before they can be marketed in the US, and the manufacturer shall post a RF label on the Rubber cap product to inform users of operational instructions, so as to Ear / mic...

  • Page 4: Operating Rules

    OPERATING RULES CHARGING THE BATTERY PACK Priorities The GX625 has a rechargeable 1200mAh Li-Ion battery pack. To charge the battery, plug the AC charger unit into the mains • Read all rules and regulations pertaining to priorities and supply and plug the DC connector into the charging cradle. keep an up-to-date copy handy.

  • Page 5: Controls

    CONTROLS Antenna Ear / mic accessory jack (HS014) Display Keypad Microphone Power switch Speaker GX625...

  • Page 6: Key Functions

    Key Functions Short Press Long Press ( > 3 sec ) HI/LO /Lock TX Power Hi/Low Key Lock CH 16 User Programmable Priority Channel DW/TRIW Dual Watch mode Triple Watch mode Power Switch SCAN All Scan/All Memory Scan Priority all/memory Scan MEMORY Mode Save/Delete Memory Channel Up/Down...

  • Page 7: Operation

    OPERATION NOTE: Some channels may be permanently restricted to Low or High power. Pressing the key on these channels will POWER ON/OFF result in an error beep. Press and hold the key to switch the radio ON. BACK LIGHT Press and hold the key to switch the radio OFF.

  • Page 8: Channel Set (Uic Band)

    You can store as many channels as you wish into the memory. To lock the keypad, press and hold the key until a beep is NOTE: Separate memories exist for the USA, International, and heard. The icon will appear on the LCD. Canadian Frequency bands.

  • Page 9: Dual Watch

    M1 - M2 - M3 - M4 ... M86 - M87 - M88 To deactivate the Priority Memory-Scan, briefly press the key again. ‘SCAN’ disappears from the display. Press the key to exit the memory mode. Before scanning, press the key to enter the memory mode.

  • Page 10: Channel Lists

    channel 16 every 2 seconds resulting in short breaks in 3. Press and hold the key to activate Triple Watch. ‘TW’ the conversation. Once the signal has gone, Triple Watch will be displayed and the channel numbers will quickly continues. switch between the three channels (16, the second priority channel and the selected channel).
  • Page 11 INTERNATIONAL MARINE VHF CHANNELS AND FREQUENCIES 157.100 161.700 Public Correspondence, Port Operations and Ship Movement 157.150 161.750 Public Correspondence, Port Operations and Ship Movement 157.200 161.800 Public Correspondence, Port Operations and Ship Movement 157.250 161.850 Public Correspondence, Port Operations and Ship Movement 157.300 161.900 Public Correspondence, Port Operations and Ship Movement...

  • Page 12: U.s. Marine Vhf Channels And Frequencies

    INTERNATIONAL MARINE VHF CHANNELS AND FREQUENCIES TX Freq RX Freq Simplex Usage 157.075 161.675 Public correspondence, Port Operations and Ship Movement 157.125 161.725 Public correspondence, Port Operations and Ship Movement 157.175 161.775 Public correspondence, Port Operations and Ship Movement 157.225 161.825 Public correspondence, Port Operations and Ship Movement 157.275...
  • Page 13 U.S. MARINE VHF CHANNELS AND FREQUENCIES 156.550 156.550 Commercial. V TS in selected areas. 156.600 156.600 Port Operations. V TS in selected areas. Inter-ship Navigation Safety (Bridge-to-bridge). Ships >20meters 156.650 156.650 in length maintain a listening watch on this channel in US waters. 156.700 156.700 Port Operations.

  • Page 14: Weather Channels

    U.S. MARINE VHF CHANNELS AND FREQUENCIES TX Freq RX Freq Simplex Usage 156.675 156.675 Port Operations 156.725 156.725 Port Operations 156.875 156.875 Port Operations (Inter-ship only) 156.925 156.925 Non-Commercial 156.975 156.975 Commercial. Non-Commercial in Great Lakes only. 157.025 157.025 Commercial. Non-Commercial in Great Lakes only. 157.075 157.075 U.S.
  • Page 15 CANADIAN MARINE VHF CHANNELS AND FREQUENCIES TX Freq RX Freq Simplex Usage 156.050 160.650 PC Public Correspondence 156.100 160.700 PC Public Correspondence 156.150 160.750 PC Public Correspondence 156.200 156.200 PC Inter-ship, Ship/Shore and Safety: Canadian Coast Guard S&R 156.250 156.250 Ship Movement All areas Inter-ship, Commercial, Non-commercial and Safety: May Be used for 156.300...
  • Page 16 CANADIAN MARINE VHF CHANNELS AND FREQUENCIES TX Freq RX Freq Simplex Usage All areas Inter-ship, Ship/Shore, Commercial and Non-commercial: For 157.100 157.100 communications between Canadian Coast Guard and non-Canadian Coast Guard stations only. PC Ship/Shore and Public Correspondence: Also in the inland waters of British 157.150 161.750 Columbia and the Yukon.

  • Page 17: Weather Channels

    CANADIAN MARINE VHF CHANNELS AND FREQUENCIES EC, PC Inter-ship, Commercial and Non-commercial: May be used to 156.625 156.625 communicate with aircraft and helicopters in predominantly maritime support All areas except EC Inter-ship, Ship/Shore, Commercial, Non-commercial, Safety: 156.675 156.675 May also be used for communications with aircraft engaged in coordinated search and rescue and antipollution operations.

  • Page 18: Specifications

    RECEIVER SPECIFICATIONS Sensitivity (12dB SINAD): -119 dBm GENERAL Squelch Threshold: -119 dBm Frequenc y Range: 156.025 to 163.275 MHz Tight: -113 dBm to -107 dBm Oscillator: Rated Audio Output @5% 250 mW Modulation: THD Speaker Channel Spacing: 25 kHz Adjacent Channel Rejection: ≥...
  • Page 19 This warranty against defects is given by Standard Communications Pty 2.5 We warrant that we will perform services with reasonable care and Ltd ACN 000 346 814 (We, us, our or GME). Our contact details are skill and agree to investigate any complaint regarding our services set out in clause 2.7.
  • Page 20 GME Pty Ltd 17 Gibbon Road, Winston Hills NSW 2153, Australia PN: 311032 DN: 49418-4...
