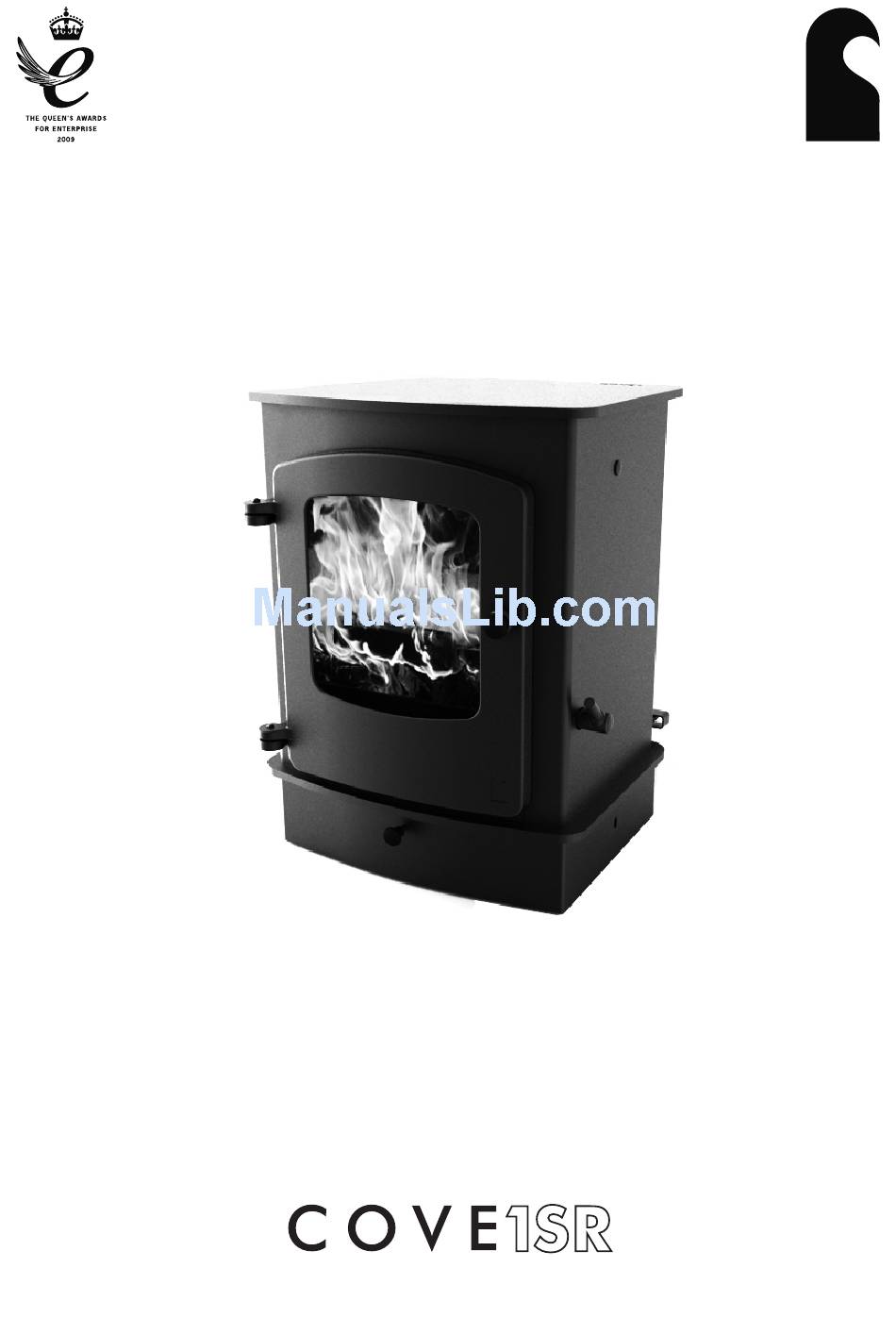

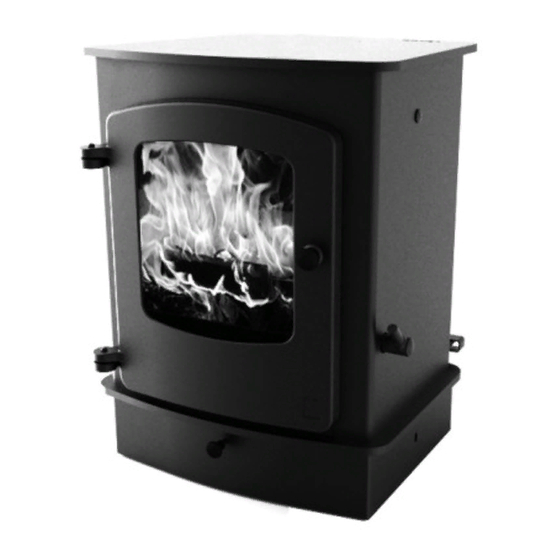

- Page 1 ® charnwood Operating & Installation Instructions...
-
Page 3: Table Of Contents
C O N T E N T S O P E R AT I N G I N S T R U C T I O N S Fuel Door Operation Multi Grate Lighting Controlling The Fire Riddling Refuelling Ash Clearance Maintenance Throat Plate &... -
Page 4: Operating Instructions
MULTI GRATE should be burnt on this appliance as burning wet unseasoned wood Your Charnwood Cove is fitted with a multi grate to enable wood to will give rise to heavy tar deposits in the stove, on the glass and within be burned and ash to be cleared. -
Page 5: Lighting
OPERATING INSTRUCTIONS charnwood ® Fig. 2. Multi Grate CONTROLLING THE FIRE The fire is controlled by the single air control knob shown in Fig. 1. Pull the knob out to make the fire burn faster, push it in to make the fire burn slower. -
Page 6: Ash Clearance
To make ash removal easier there is a special Charnwood ash carrier After long periods where the fire has been out of use, the chimney available. -
Page 7: Chimney Sweeping
OPERATING INSTRUCTIONS charnwood ® Fig. 5. Secondary Air Slide (view with lower cover removed) deposits. To remove the throat plate lift it up, pull it forwards to clear the back brick, raise the left hand side and lower the right hand side and then rotate the right hand side towards you through the doorway (see Fig. -
Page 8: If You Need Further Help
Expert advice should be sought if necessary. IF YOU NEED FURTHER HELP If you need further help with your Charnwood Cove then your Installer will be able to provide the answers to most questions. Your Local Charnwood Premier Dealer has a great deal of experience and will also be able to provide helpful advice. -
Page 9: Installation Instructions
These chimneys must be Charnwood as an optional extra. fitted in accordance with the manufacturers instructions and Building In addition to these instructions the requirements of BS.8303 and BS Regulations. -
Page 10: Connection To Flues
INSTALLATION INSTRUCTIONS charnwood ® inches). When the fire door is open, it extends beyond the front of removing the 4 pallet bolts using a 10mm spanner. The pallet brackets the stove by 414mm (16.3in). can now be removed from the stove by tilting it and using a 13mm spanner to remove the bolts. -
Page 11: Pre Lighting Check
INSTALLATION INSTRUCTIONS charnwood ® Rod through the hole in the front of the stand. Now move the stove COMMISSIONING towards you to align the slots in the side of the stand with the 6mm On completion of the installation and after allowing a suitable period tapped holes in the base brackets. -
Page 12: Dimensions
DIMENSIONS charnwood ® Flue Outlet to suit 125mm (5") Fluepipe TOP VIEW Optional Vertical Rear Flue Adapter 795 745 795 745 Max dimension with door open = 673 FRONT VIEW SIDE VIEW BACK VIEW... -
Page 13: Parts Lists
Description. In case of difficulty contact the manufacturer at the address shown. # Please specify colour when ordering. This drawing is for identification purposes only. charnwood BISHOPS WAY, NEWPORT, ISLE OF WIGHT PO30 5WS, UNITED KINGDOM T:+4 4 (0)1983 537799 • F:+4 4 (0)1983 537788 • SPARES@CHARNWOOD.COM • WWW.CHARNWOOD.COM ®... -
Page 14: Certification
A.J WELLS & SONS LTD A.J WELLS & SONS LTD Bishops Way, Newport, Isle of Wight PO30 5WS, United Kingdom A Division of A.J.Wells & Sons Limited Registered in England No. 03809371 EN13240:2001 ROOMHEATERS FIRED BY WOOD FUEL Ec certificate of conformity no: IS44-CPD-2010 Minimum distance to... - Page 16 BISHOPS WAY, NEWPORT, ISLE OF WIGHT PO30 5WS, UNITED KINGDOM T : + 4 4 ( 0 ) 1 9 8 3 5 3 7 7 7 7 • F : + 4 4 ( 0 ) 1 9 8 3 5 3 7 7 8 8 • C O N T A C T U S A T W W W . C H A R N W O O D . C O M ®...
