VA
REAR AXLE (Continued)
1 - SPRING
2 - SPRING SHACKLE
3 - PLATE
4 - COLLAR NUT
5 - BRAKE CABLE
6 - REAR AXLE
7 - ALB LEVER
8 - NUT
9 - BOLT
10 - WEAR INDICATOR CABLE
(10) Install connection cable of brake pad wear
indicator and ABS sensor cable up to the relay unit
of the parking brake.
(11) Install cable ties to the park brake cables.
(12) Install ABS sensor and clamp bushing to
mounting bore.
NOTE: The right-hand ABS sensor cable is labeled
at the factory with a white tag.
(13) Attach connector cable for brake pad wear
indicator.
(14) Plug in cable of brake pad wear indicator.

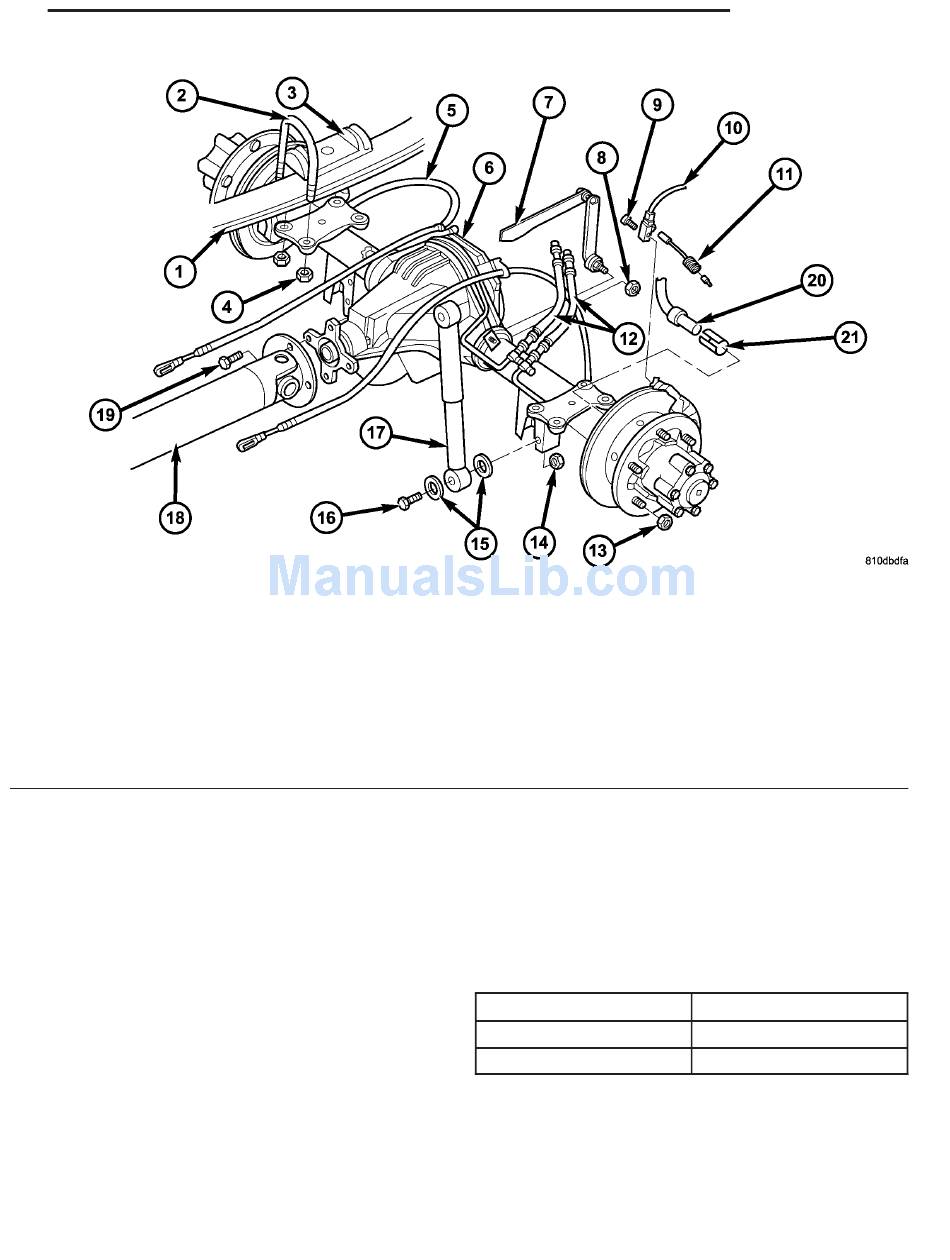

Fig. 3 DUAL REAR WHEEL AXLE
11 - WEAR INDICATOR CONNECTOR
12 - BRAKE HOSE
13 - LUG NUT
14 - NUT
15 - WASHER
16 - BOLT
17 - SHOCK ABSORBER
18 - PROPELLER SHAFT
19 - BOLT
20 - ABS SENSOR
21 - SENSOR BUSHING
(15) Install the wheels and tires.
(16) Fill axle with appropriate lubricant.
(17) Remove lifting device from under the axle.
(18) Remove support and lower vehicle.
SPECIFICATIONS

AXLE SPECIFICATIONS

DESCRIPTION
Axle Ratio
Ring Gear Diameter
REAR AXLE 3 - 13
SPECIFICATION
3.73, 4.11
216 mm (8.5 in.)
