3 - 16

REAR AXLE

AXLE SHAFTS (Continued)

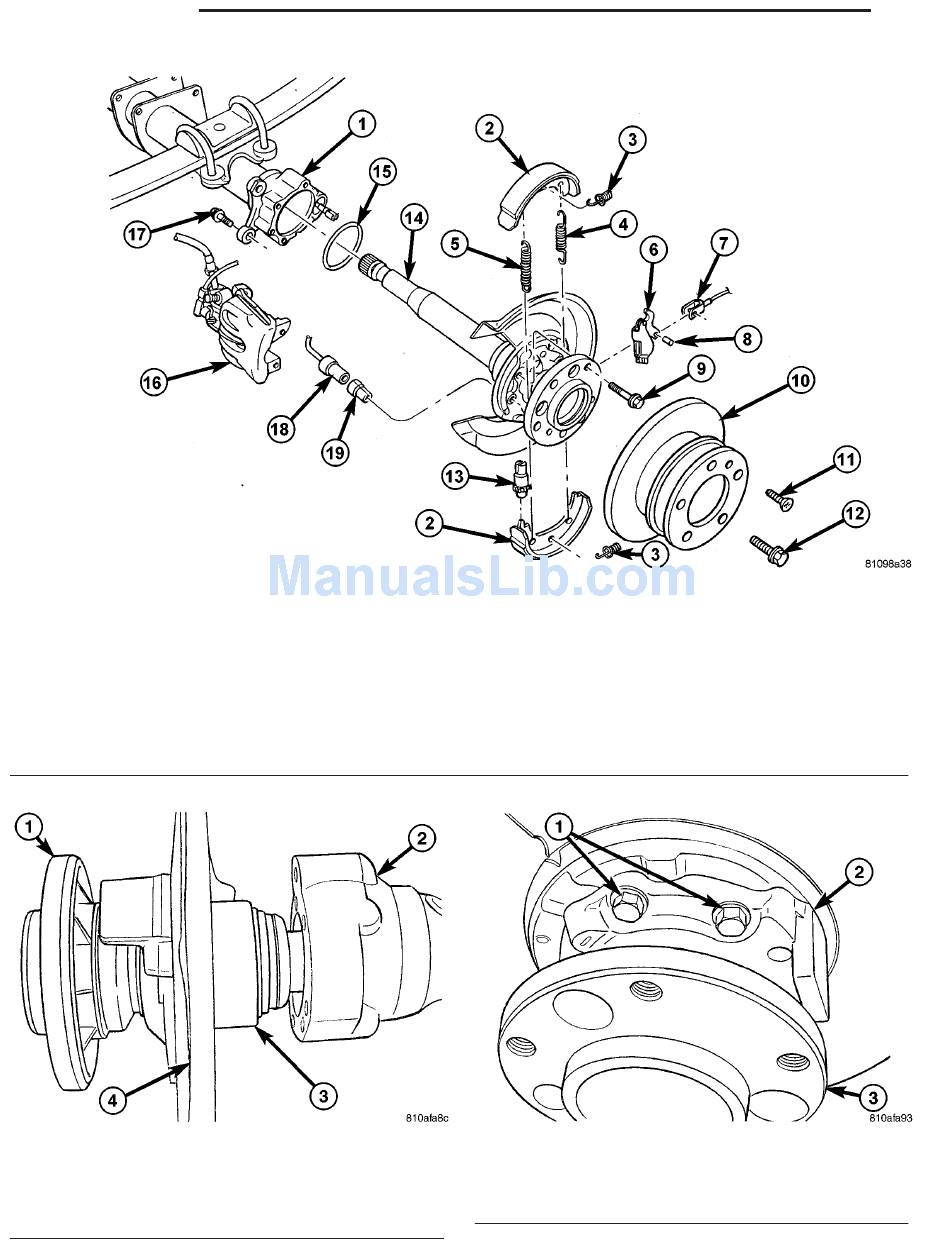

1 - REAR AXLE
2 - BRAKE SHOE
3 - PRESSURE SPRING
4 - RETURN SPRING
5 - RETURN SPRING
6 - CABLE LOCK
7 - PARK BRAKE CABLE
8 - LOCKING PIN
9 - BOLT
10 - BRAKE DISC
Fig. 5 AXLE SHAFT AND TUBE
1 - AXLE SHAFT FLANGE
2 - AXLE TUBE
3 - AXLE BEARINGS
4 - DUST SHIELD
Fig. 4 AXLE SHAFT
11 - BOLT
12 - WHEEL BOLT
13 - BRAKE ADJUSTER
14 - REAR AXLE SHAFT
15 - GASKET
16 - BRAKE CABLE
17 - BOLT
18 - ABS SENSOR
19 - SENSOR BUSHING

1 - BEARING CAP BOLTS

2 - BEARING CAP
3 - AXLE SHAFT FLANGE
Fig. 6 BEARING CAP BOLTS
VA
