3 - 12 REAR AXLE
REAR AXLE (Continued)
(10) Remove stablizer bar from axle brackets.
(11) Remove shock absorber bolts from rear axle.
(12) Remove ALB lever from rear axle bracket.
(13) Pull off hold-down clips and remove brake
hoses.
(14) Pull vent line of rear axle out of frame.
(15) Remove propeller shaft.
(16) Remove U-brackets and plates (Fig. 2) and
(Fig. 3).
(17) Remove axle from the vehicle.

INSTALLATION

(1) Raise axle into position.
(2) Install plates and U-brackets with new nuts.
Tighten nuts to 170 N·m (125 ft. lbs.).
(3) Install propeller shaft and tighten bolts to 70
N·m (52 ft. lbs.).
1 - REAR SPRING
2 - U-BRACKET
3 - PLATE
4 - NUT
5 - BRAKE CABLE
6 - REAR AXLE
7 - ABL LEVER
8 - NUT
9 - SHOCK ABSORBER
10 - BOLT
11 - WEAR INDICATOR CABLE
NOTE: On installation of the propeller shaft, joint
arrows must be flush and must point towards the
frame floor. Tighten the propeller shaft in this posi-
tion.
(4) Install ALB lever to axle bracket and tighten
new nut 34 N·m (46 ft. lbs.).
(5) Install shock absorbers to rear axle and tighten
bolts to:
• M12 x 1.5 Bolt - 70 N·m (52 ft. lbs.)
• M14 x 1.5 Bolt - 110 N·m (81 ft. lbs.)
(6) Install stabilizer bar to axle and tighten bolts
to:
• SRW Axle - 25 N·m (18 ft. lbs.)
• DRW Axle - 70 N·m (52 ft. lbs.)
(7) Install calipers with adapters and lines.
(8) Install brake hoses and hold-down clips.
(9) Install and adjust park brake cables.

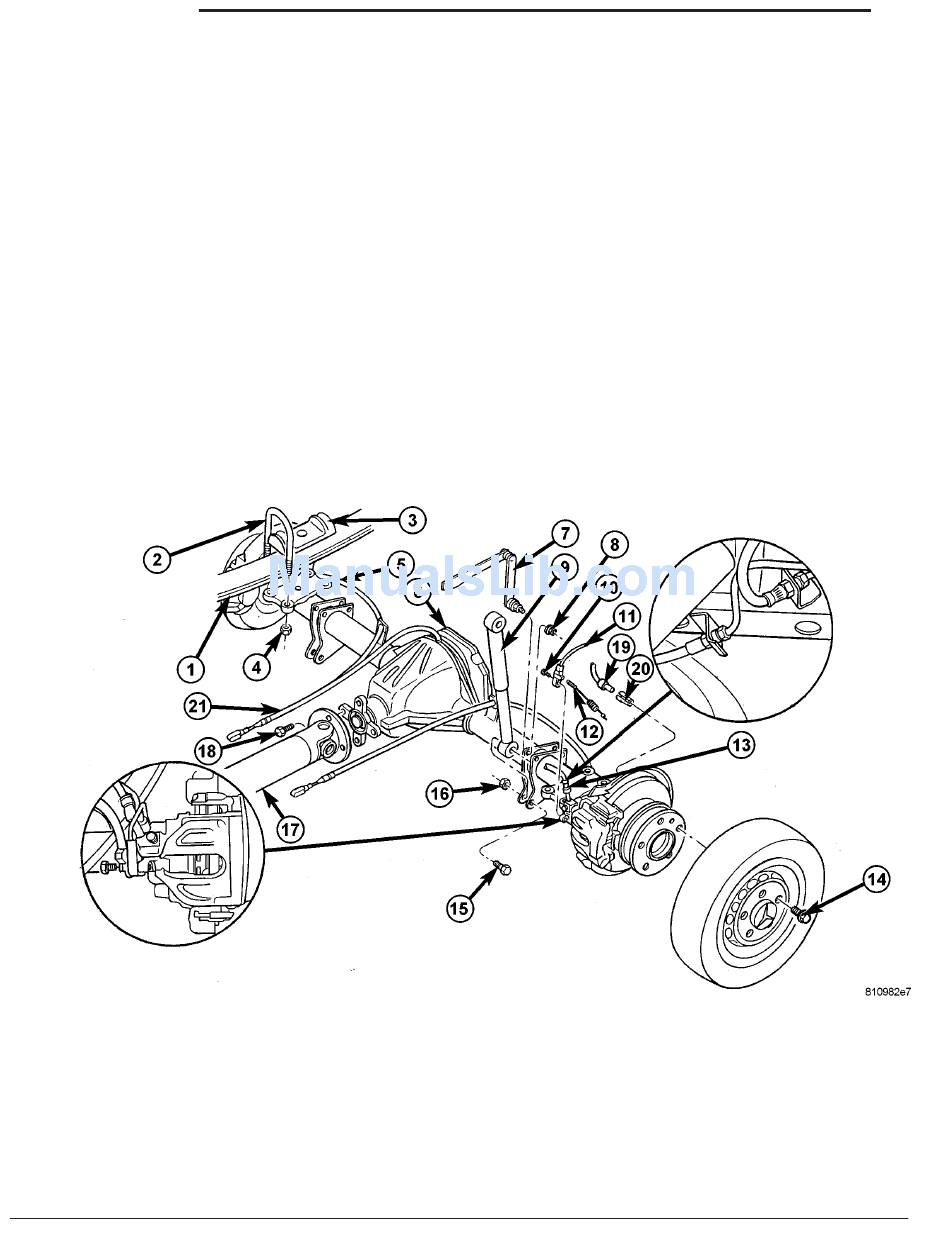

Fig. 2 SINGLE REAR WHEEL AXLE
12 - WEAR INDICATOR CONNECTOR
13 - BRAKE HOSE
14 - WHEEL BOLT
15 - BOLT
16 - NUT
17 - PROPELLER SHAFT
18 - BOLT
19 - ABS SENSOR
20 - SENSOR BUSHING
21 - VENT LINE
