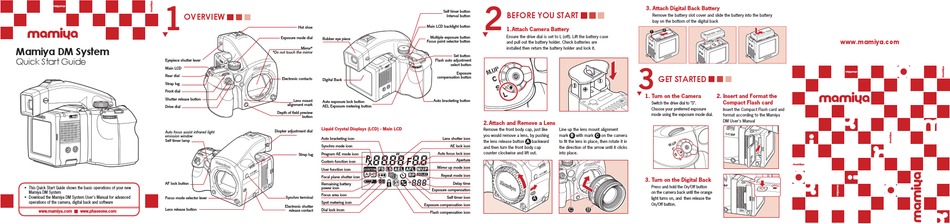

Mamiya DM System Quick Start Manual

1

Overview

Mamiya DM System
Quick Start Guide
Eyepiece shutter lever
Main LCD
Rear dial
Strap lug
Front dial
Shutter release button
Drive dial
Auto focus assist infrared light
emission window
Self timer lamp
AF lock button
• This Quick Start Guide shows the basic operations of your new
Mamiya DM System
• Download the Mamiya DM System User's Manual for advanced
Focus mode selector lever
operations of the camera, digital back and software
Lens release button
www.mamiya.com  www.phaseone.com
Self timer button
Interval button
Main LCD backlight button
Hot shoe
Exposure mode dial Multiple exposure button
Rubber eye piece
Focus point selector button
Mirror*
*Do not touch the mirror
Flash auto adjustment
select button
compensation button
Electronic contacts
Digital Back
Lens mount Auto bracketing button
Auto exposure lock button
alignment mark
AEL Exposure metering button
Depth of field preview
button
Liquid Crystal Displays (LCD) - Main LCD
Diopter adjustment dial
Auto bracketing icon Lens shutter icon
Synchro mode icon AE lock icon
Auto focus lock icon
Strap lug Program AE mode icon
Custom function icon
Mirror up mode icon
User function icon
Repeat mode icon
Focal plane shutter icon
Remaining battery
power icon
Exposure compensation
Focus area icon
Synchro terminal Self timer icon
Spot metering icon
Exposure compensation icon
Electronic shutter
release contact Dial lock ircon
Flash compensation icon
2

BefOre yOu STArT

1. Attach Camera Battery

Ensure the drive dial is set to L (off). Lift the battery case
and pull out the battery holder. Check batteries are
installed then return the battery holder and lock it.
Set button
Exposure

2. Attach and Remove a Lens

Remove the front body cap, just like Line up the lens mount alignment
you would remove a lens, by pushing mark B with mark C on the camera
the lens release button A backward to fit the lens in place, then rotate it in
and then turn the front body cap the direction of the arrow until it clicks
counter clockwise and lift out. into place.
Aperture
Delay time
A
C B

3. Attach Digital Back Battery

Remove the battery slot cover and slide the battery into the battery
bay on the bottom of the digital back
2
1
3

GeT STArTeD

1. Turn on the Camera

2. Insert and Format the
Compact Flash card
Switch the drive dial to "S".
Choose your preferred exposure
Insert the Compact Flash card and
mode using the exposure mode dial.
format according to the Mamiya
DM User's Manual

3. Turn on the Digital Back

Press and hold the On/Off button
on the camera back until the orange
light turns on, and then release the
On/Off button.
