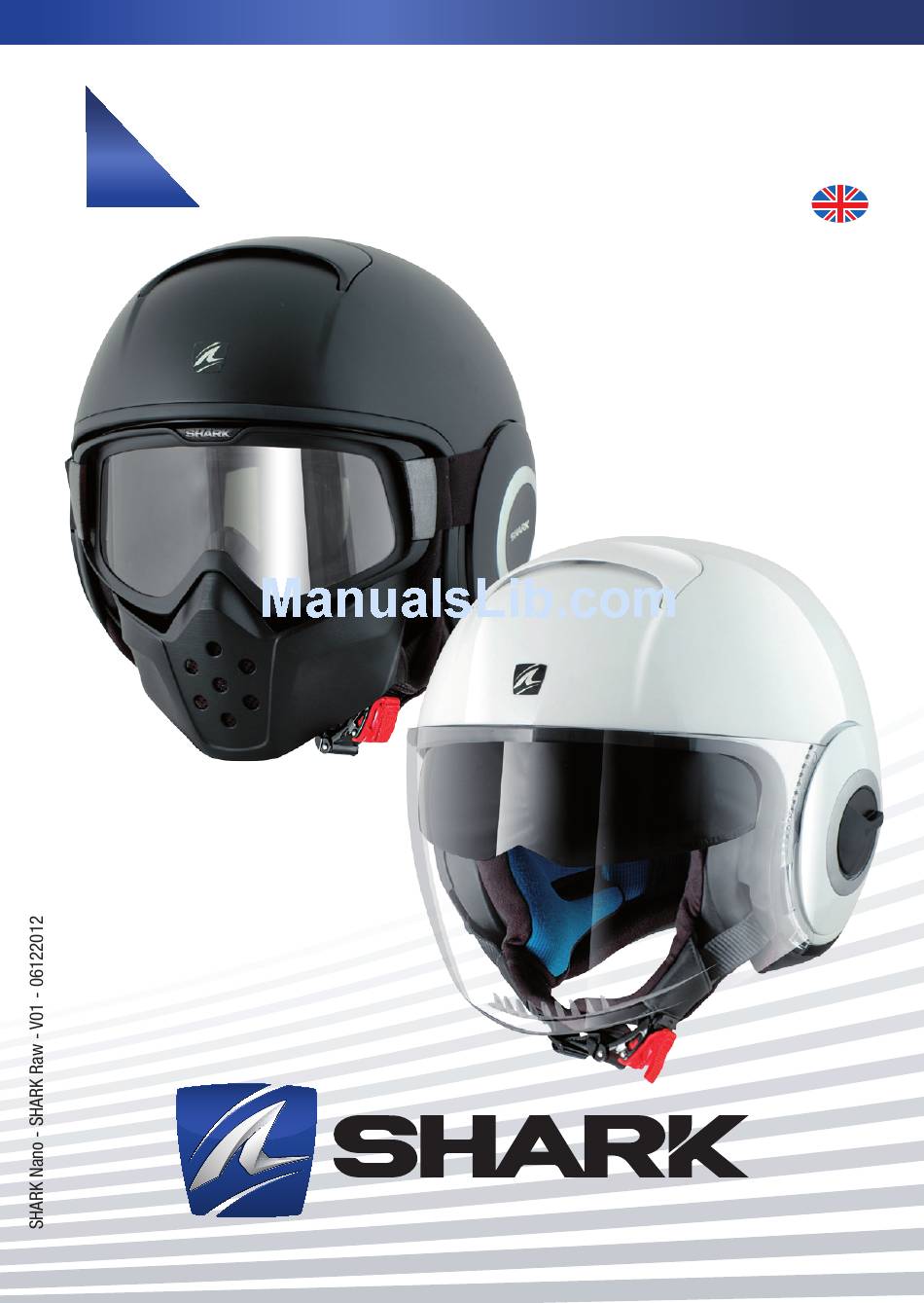

  • Page 1 SHARK Raw • SHARK Nano...
  • Page 2 Thank you for choosing a SHARK Nano/ SHARK Raw helmet. The SHARK Nano / SHARK Raw is a top-quality helmet that is ideal for use for urban and extra urban area. The helmet complies with international standards but does not purport to guarantee total protec- tion in all circumstances.

  • Page 3: Table Of Contents

    Visor , system QrVs, maintenance 8 - 9 ............ SHARK Nano only: sun Visor, dismounting and maintenance 10 - 11 ......SHARK Raw only: GoGGles, system QrVs, maintenance 12 - 13 ......... textile pArts : type, treatment, dismounting and maintenance 14-16 ......

  • Page 4: Anatomy Of The Helmet

    SHARK Nano SHARK Raw 5) Cork top ventilation 1) Visor VZ140 long trip (SHARK Nano only) 6) QVRS ( (quick release visor system) 1b) Goggles (SHARK Raw only) 7) Chip strap 2) Sun Visor (SHARK Nano only)

  • Page 5: A Helmet In Your Size

    Try the size of helmet is well positioned on your head, and SHARK Nano and SHARK Raw helmet closest that the chin strap is properly adjusted, fol- to the measurement obtained, starting with lowing the instructions of this manual (see the size smaller than your head measurement.

  • Page 6: Advice For Use: Put And Remove

    Depending on the various versions and the country concerned, your SHARK Nano / SHARK Raw helmet is equipped with a chin strap with a “Precise Lock” rapid buckle with a snap lock. The “Precise Lock” snap lock system gives you precise and accurate adjustment because of the considerable length of its notched section.
  • Page 7 ChiN StRaP miCRometRiC bUCkle Choose your SHARK Nano or SHARK Raw and attach the holding system. When the “Precise Lock” is adjusted to the medium position, the chin strap must be correctly tensioned under the chin to hold the helmet firmly without causing you any discomfort or pain.

  • Page 8: Shark Nano Only

    ShaRk Nano oNly ViSoR • maiNteNaNCe VZ140 «long trip» visor of your SHARK Nano helmet is injected into a polycarbonate material specifically developed for its excellent optical quality and high performance shock resistance. With a thickness of 2.2mm, it offers a good strength.

  • Page 9: Shark Nano Only

    ShaRk Nano oNly QRVS SyStem QRVS System This screen has a system of easy disassembly without tools, allowing you to clean it easily. Dismantling 1. Claim screen in the upper position (Fig 1) assembly 2. Exerting tension on the side of the screen 1.
  • Page 10 ShaRk Nano oNly SUN ViSoR SUN ViSoR SHARK Nano is equipped with a sun visor with an integrated external control. This ergonomic command allows to operate the visor from the outside with ease and whatever the type of gloves worn, offering you a fast and full protection security.
  • Page 11 ShaRk Nano oNly SUN ViSoR RemOVal assembly Same operations are reverse 1. Move the sun visor in the lowered position (Fig 1) 1. Move the joystick sun visor in the down position (Fig 4) 2. Pull the sun visor down gently (Fig 2) 2.

  • Page 12: Shark Raw Only

    European standard IN 1938 2010. Go up at the first the mask on the goggles. Your SHARK Raw helmet has a pair of goggles 1. Seize goggles left hand and mask right hand Optic by Carl Zeiss used as glasses of protection seen internal (Fig 1) for your eyes.

  • Page 13: Dismantling

    ShaRk Raw oNly goggleS • QRgS SyStem Dismantling To unsettle the whole helmet, you just have to take off the plastic part fixed to elastic ban- dages, the side part of goggles (Fig 5). Goggles is easily knockdown of the mask thanks to their system of fixation, a simple drive will be enough for you (Fig 6).

  • Page 14: Textile Parts : Type, Treatment, Dismounting And Maintenance

    30°). The textile and foam parts providing comfort to either a product for delicate materials in the SHARK Nano and the SHARK Raw make it low dilution or household soap. easy for you to appreciate the performance of It is essential to dry textile and foam parts your helmet to the best.

  • Page 15: Textile Parts Dismantling

    textile PaRtS Dismantling The internal textile parts are completely knockdown : 1. Return your helmet 2. Separate both parts of the chin strap 3. Drop out both cheeks (Fig. 1), and make them slide along the belts of jugular chin strap to take out them 4.

  • Page 16: Textile Parts Assembly

    textile PaRtS assembly 1. Begin the operation by threading the plastic part of the front of the headgear in its accom- modation (Fig. 1) by beginning with one of the sides (arrow 1) 2. Position the textile correctly 3. Go back up of the back part of the headgear (Fig.2-3) 4.

  • Page 17: Easy Fit

    • ShaRktooth ShaRktooth Your helmet SHARK Nano and SHARK Raw are designed to be equipped with audio system SHARKTOOTH. This very efficient communi- eaSy fit cation system can be mounted in the SHARK Nano and SHARK Raw very easily, while...

  • Page 18: Ventilation And Function Cork

    To maximize comfort including ventilation of Ventilation is open for the summer when the SHARK Nano / SHARK Raw, R&D has produced cap is removed (Fig. A). a new concept combining creating air chan- For the winter, just put the cap specially desi- nels in the damping elements and insertion of gned for this purpose (Fig.

  • Page 19: Warranty

    SHARK warranty. helmets.com in order to activate your warranty. All war- limitations ranty claims must be made to the SHARK dealer that sold If during the warranty period (5 years as from the date the helmet.

  • Page 20: Legal Information

    SHARK Nano and SHARK Raw were specifically designed for motorcycle use. It is not to be subjected to any technical modification. In order to offer an adequate level of protection, this helmet has to be properly adjusted and securely fitted. Any helmet which has been subjected to a severe impact must be replaced.
