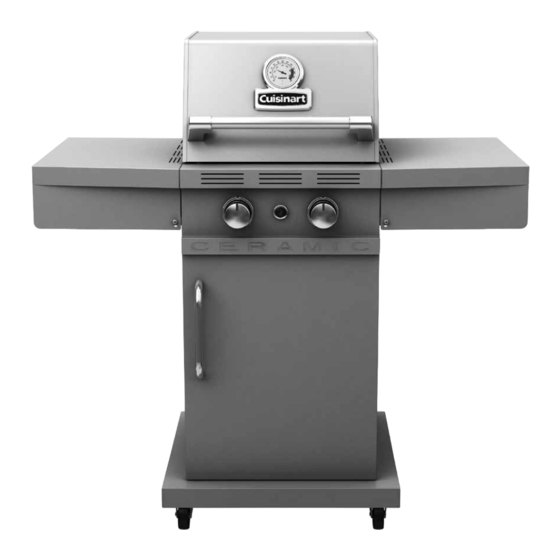

Cuisinart CERAMIC SMALL SPACES G35801 Assembly Manual

Hide thumbs Also See for CERAMIC SMALL SPACES G35801:

Advertisement

Quick Links

Download this manual

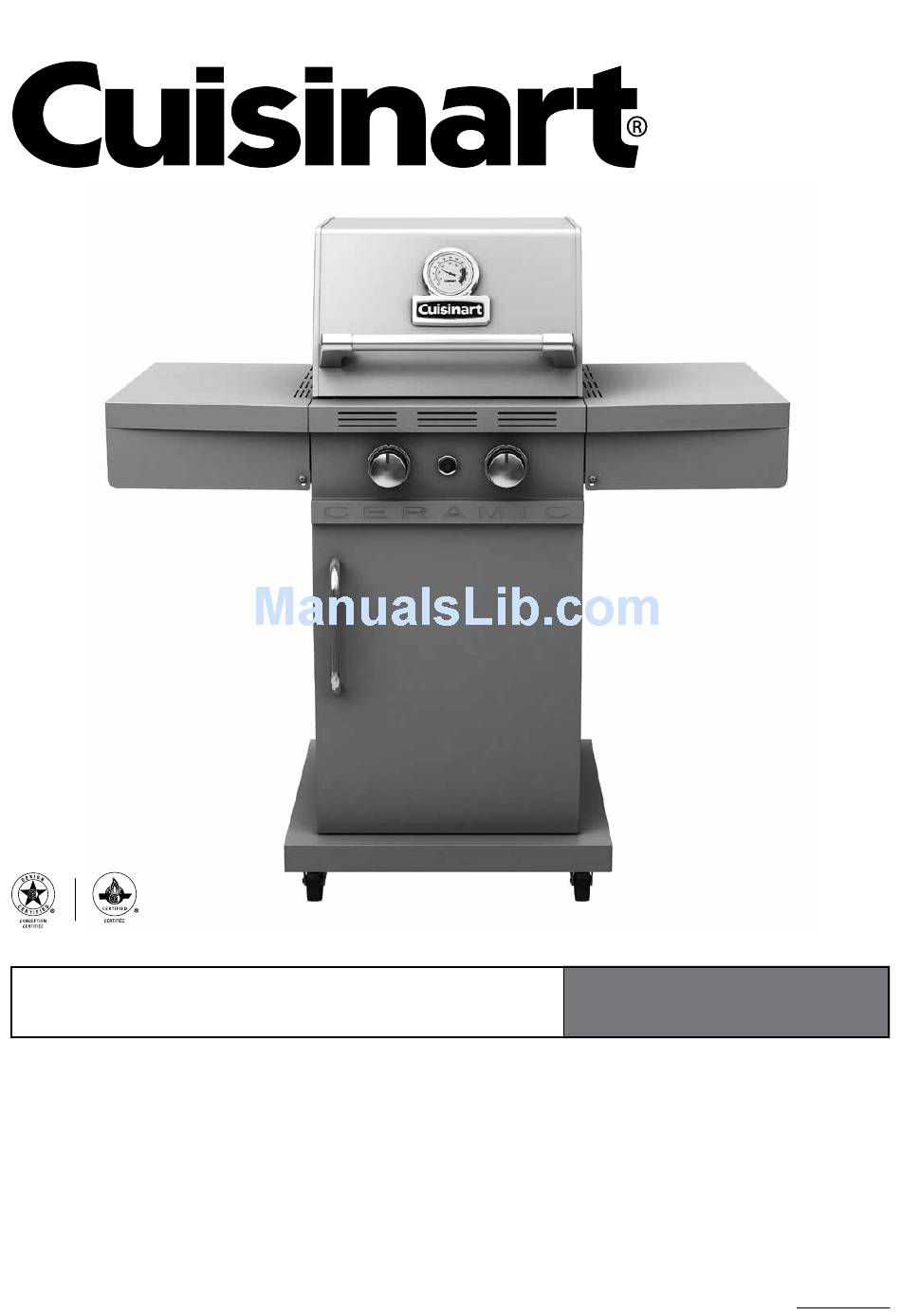

cERAMic SMALL SPAcES
cuisinart
®
REAd ANd SAvE MANUAL foR fUtURE REfERENcE.
Missing or damaged parts should be claimed within 30 days of purchase.
for product inquiries, parts, warranty and troubleshooting support, please call 1-800-309-3452.
LiMitEd 5-YEAR WARRANtY
Assemble your grill immediately.
www.cuisinartbbqs.com
ASSEMBLY
MANUAL
85-3112-4 (G35801) Propane
85-3113-2 (G35802) Natural Gas
Manual Revision #: 07172015 AT

Advertisement

loading
Need help?

Need help?

Do you have a question about the CERAMIC SMALL SPACES G35801 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Cuisinart CERAMIC SMALL SPACES G35801

Summary of Contents for Cuisinart CERAMIC SMALL SPACES G35801

  • Page 1 ASSEMBLY MANUAL 85-3112-4 (G35801) Propane cERAMic SMALL SPAcES cuisinart ® 85-3113-2 (G35802) Natural Gas REAd ANd SAvE MANUAL foR fUtURE REfERENcE. Assemble your grill immediately. Missing or damaged parts should be claimed within 30 days of purchase. for product inquiries, parts, warranty and troubleshooting support, please call 1-800-309-3452.
  • Page 2 H E A V Y A R T I C L E N E E D S 2 T O L I F T THIS MANUAL MUST REMAIN WITH THE PRODUCT AT ALL TIMES to oRdER non-warranty replacement parts or accessories, or to register your warranty, please visit us on the web at www.cuisinartbbqs.com cAUtioN...

  • Page 3: Hardware Pack

    HARDWARE PACK tools Needed for Assembly No. Description Part Number Qty. 1/4"-20UNCx50 Screw 20120-13050-250 • #2 Phillips screwdriver (long and short) 1/4"-20UNCx16 Screw 20120-13016-250 • ¼” Slotted screwdriver (long and short) 1/4”-20UNC Screw G358-0022-9000 • Adjustable wrench NO.10-24UNC x13 Screw 20124-10013-250 ST4.2X10 Tapping Screw 22500-42010-137...
  • Page 4 PARTS LIST (PROPANE) FOR 85-3112-4 (G35801) Item No. Qty. Description Part No. Item No. Qty. Description Part No. Top Lid G358-2000-01 Side Shelf Table - Right G358-0700-01 Lid Handle G358-0003-01 Side Shelf Rear Brace - Right G358-0018-01 Lid Handle End Cap G358-0004-01 Side Shelf Fascia - Right G358-0017-01...
  • Page 5 EXPLODED DIAGRAM (PROPANE) FOR 85-3112-4 (G35801) EXtRAS Assembly Safe Use Ceramic Manual & Care Heat Plate Hardware Tank Manual Guide Pack Screw...
  • Page 6 PARTS LIST (NATURAL GAS) FOR 85-3113-2 (G35802) Item No. Qty. Description Part No. Item No. Qty. Description Part No. Top Lid G358-2000-01 Side Shelf Table - Right G358-0700-01 Lid Handle G358-0003-01 Side Shelf Rear Brace - Right G358-0018-01 Lid Handle End Cap G358-0004-01 Side Shelf Fascia - Right G358-0017-01...
  • Page 7 EXPLODED DIAGRAM (NATURAL GAS) FOR 85-3113-2 (G35802) EXtRAS Assembly Safe Use Ceramic Manual & Care Heat Plate Hardware Manual Guide Pack...

  • Page 8: Assembly Instructions

    ASSEMBLY INSTRUCTIONS Separate the 2 different types of Wheels, 2 Locking Wheels (ED) and 2 Regular Wheels (EE). Insert the U Pin Tool (#10) into one of the Regular Wheels (EE), as shown in image B. Attach the Regular Wheel (EE) to the front of the Bottom Shelf (EC), and use the U Pin Tool (#10) to secure and tighten.
  • Page 9 ASSEMBLY INSTRUCTIONS Assemble the Lower Back Panel (CO) to the Left and Right Cart Side Panels (EA and EB). YoU WiLL NEEd: Front View Close up Attach the Front Brace (CH) to the Left and Right Cart Side Panels (EA and EB). The top of the Front Brace (CH) can be identified by two clips located on the top left, and right side of this part, as shown in B.
  • Page 10 ASSEMBLY INSTRUCTIONS Assemble the Heat Shield (CM) to the Left and Right Cart Side Panels (EA and EB). YoU WiLL NEEd: Front view Close up tHiS StEP REQUiRES 3 PEoPLE. do Not AttEMPt ALoNE. EXtREMELY HEAvY! a. Position the Top Lid and Burner Box Assembly (A and B) onto Cart Assembly (C), as shown.
  • Page 11 ASSEMBLY INSTRUCTIONS Close up - left outside view b. Assemble Burner Box Assembly (A and B) to the Left and Right Cart Side Panels (EA and EB), as shown. YoU WiLL NEEd: Back view Attach the Upper Back Panel (CN) to both the Left and Right Cart Side Panels (EA and EB).
  • Page 12 ASSEMBLY INSTRUCTIONS a. Assemble the Left and Right Tracks (CL and CK) for the Grease Tray (CI), as shown in figure A, B and C. Back view tiP: Both the Left and Right Tracks (CL and CK) should be inserted into the two clips located on the top of the Front Brace (CH), as shown in figure B.
  • Page 13 ASSEMBLY INSTRUCTIONS a. Assemble the Side Shelf Support Brackets (DG) to the right upper side panel of the Burner Box Assembly (BA). tiP: All Side Shelf Support Brackets are the same. YoU WiLL NEEd: Front, right Side view b. Assemble the hardware (#3) to the right upper side panel of the Burner Box Assembly (BA).
  • Page 14 ASSEMBLY INSTRUCTIONS a. Assemble the Side Shelf Fascia (DF) to the Left Side Shelf Table (DD), as shown in figure A and B. YoU WiLL NEEd: NotE: Beware of sharp edges. Front view, left side shelf YoU WiLL NEEd: NotE: Beware of sharp edges. Front view, left side shelf b.
  • Page 15 ASSEMBLY INSTRUCTIONS a. Position the Right Side Shelf Assembly (DA, DB and DC) onto the hardware tightened in Step 9B, as shown in figure A and B. Front, right side view View under right side shelf b. Assemble the hardware (#3) to the front of the Right Side Shelf Fascia (DC).
  • Page 16 ASSEMBLY INSTRUCTIONS a. Position the Left Side Shelf Assembly (DD, DE and DF) onto the hardware tightened in Step 9D, as shown in figure A and B. Front, left side view View under left side shelf b. Assemble the hardware (#3) to the front of the Left Side Shelf Fascia (DF).
  • Page 17 ASSEMBLY INSTRUCTIONS a. Remove the Electronic Ignition Battery Cap (CC2) and the plastic nut from the Electronic Ignition Assembly (CC1). Plastic Nut Right side panel, inside view b. Feed the Electronic Ignition Assembly (CC1) through the opening in the Right Cart Side Panel (EB) and secure using the nut.
  • Page 18 ASSEMBLY INSTRUCTIONS Assemble the Door Handle (EG) to the Door Assembly (EF), as shown in figure A. YoU WiLL NEEd: a. Assemble the Door Assembly (EF) to the Bottom shelf (EC) by inserting the fixed pin (bottom of door) into the hole provided (figure Front view Bottom of door b.
  • Page 19 ASSEMBLY INSTRUCTIONS a. Position the Grease tray (CI) onto the Left and Right Tracks (CL and CK), as shown. b. Place the Grease Cup (CJ) onto the tracks, located on the underside of the Grease Tray (CI). Back view...
  • Page 20 ASSEMBLY INSTRUCTIONS to assemble the ceramic Heat Plates, locate the following: 3-pc. Stainless Steel ceramic Radiant (Bd) Stone (BE) X 16 AttENtioN: For the purpose of safe shipping and transit, the Stainless Steel Radiants and the Ceramic Stones, have been shipped separately, and will require assembly.
  • Page 21 ASSEMBLY INSTRUCTIONS c. Insert the Ceramic Stones (BE) into the openings on the right side of the Stainless Steel Radiant (BD). NotE: the flat side of the ceramic Stones (BE) should be facing up. d. Secure the Ceramic Stones (BE) in place by assembling the right frame back onto the Stainless Steel Radiant (BD), as shown in figure F and G.
  • Page 22 ASSEMBLY INSTRUCTIONS e. Secure using one set of the connectors and hitch pins, removed in step 17A, as shown in figures H – J. You will need these parts from Step A: connector Hitch Pin Close up f. Repeat steps C and D for the left side of the Stainless Steel Radiant (BD) to complete assembly.
  • Page 23 ASSEMBLY INSTRUCTIONS g. Once assembled, position Ceramic Heat Plates (BD + BE) into the Burner Box (BA), as shown in figure L and M. NotE: The ports in the middle of the heat plate should be at the front of the burner box.
  • Page 24 ASSEMBLY INSTRUCTIONS a. Place the Cooking Grates (BF) into the Burner Box (BA), as shown in figure A. b. Assemble the Warming Rack (BG) by inserting the two fixed pins into the two holes provided on the Burner Box back panel (BA), as shown in figure B.
  • Page 25 Attach the Regulator coupling nut to the LP cylinder valve. Be careful not to cross thread. Hand tighten only. c. Perform Leak Test. See page 5 of the Cuisinart Safety and Care Manual. ® AttENtioN: For your families safety,...
  • Page 26 NAtURAL GAS ModEL oNLY. a. Attach the Natural Gas Hose (CB) to the manifold (CA), as shown. b. Perform Leak Test. See page 6 of the Cuisinart Safety and Care Manual. ® AttENtioN: In order to complete installation of your Natural Gas BBQ a 1/2”...

  • Page 27: Join The Conversation

    Gourmet Barbecues customer Service: ® 1-800-309-3452 Join the conversation facebook.com/cuisinartbbqs twitter.com/cuisinartbbqs Cuisinart is a registered ® trademark used under license © 2016 Trileaf Distributions Trifeuil...
