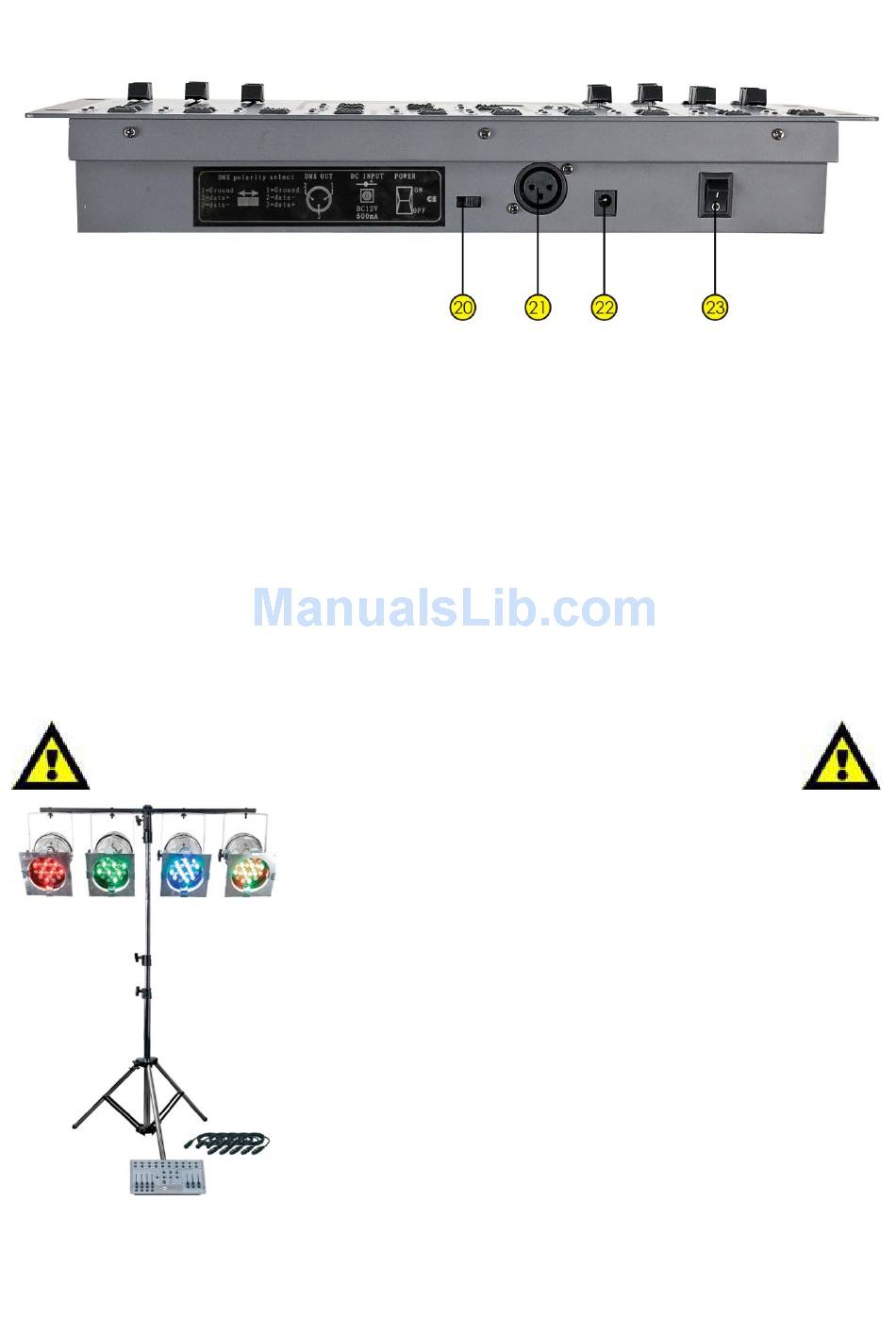

Controller Backside
20) DMX Polarity Switch
21) DMX OUT
22) DC power
23) ON/OFF
Installation
Remove all packing materials from the
removed. Connect all cables.
Always disconnect from electric mains power supply before cleaning or servicing.
Damages caused by non-observance are not subject to warranty.
Set Up and Operation
Before plugging the unit in, always make sure that the power supply matches the product specification
voltage. Do not attempt to operate a 120V specification product on 230V power, or vice versa.
As standard Factory Default Settings, this device is patched to CH1, CH2, CH3 and CH4.
You have to unpatch CH4 when used in combination with LED Entertainer
(Ordercode LEDENTB/LEDENTC)
LED Operator
4. Check that all foam and plastic padding is
Ordercode LEDENTB/LEDENTC
7
Fig. 3
