QoS: Select this option to Activate/Deactivate the IP QoS on different types (IP ToS and
DiffServ).
Summary: Click the button to view the configurations of QoS.
Rule: Configure the rules for QoS. If the traffic complies with the rule, then the Router will take
the corresponding action to deal with it.
•
Rule Index: Select the index for the rule you want to configure.
•
Active: Activate the rule. The rule can take effect only when it is activated.
iB-WRA300N 300M Wireless-N ADSL2+ Router User Guide

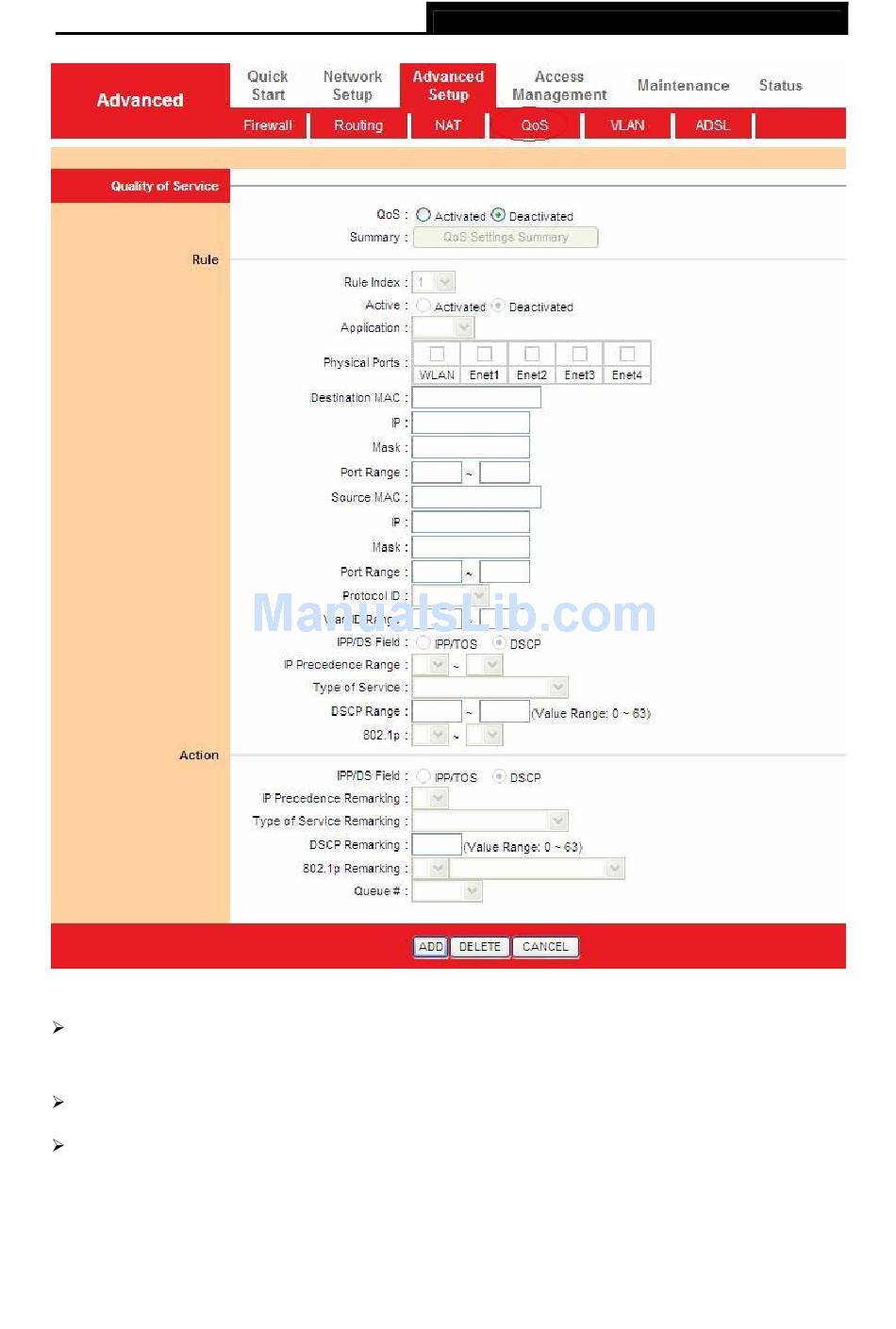

Figure 4-32
