Installation

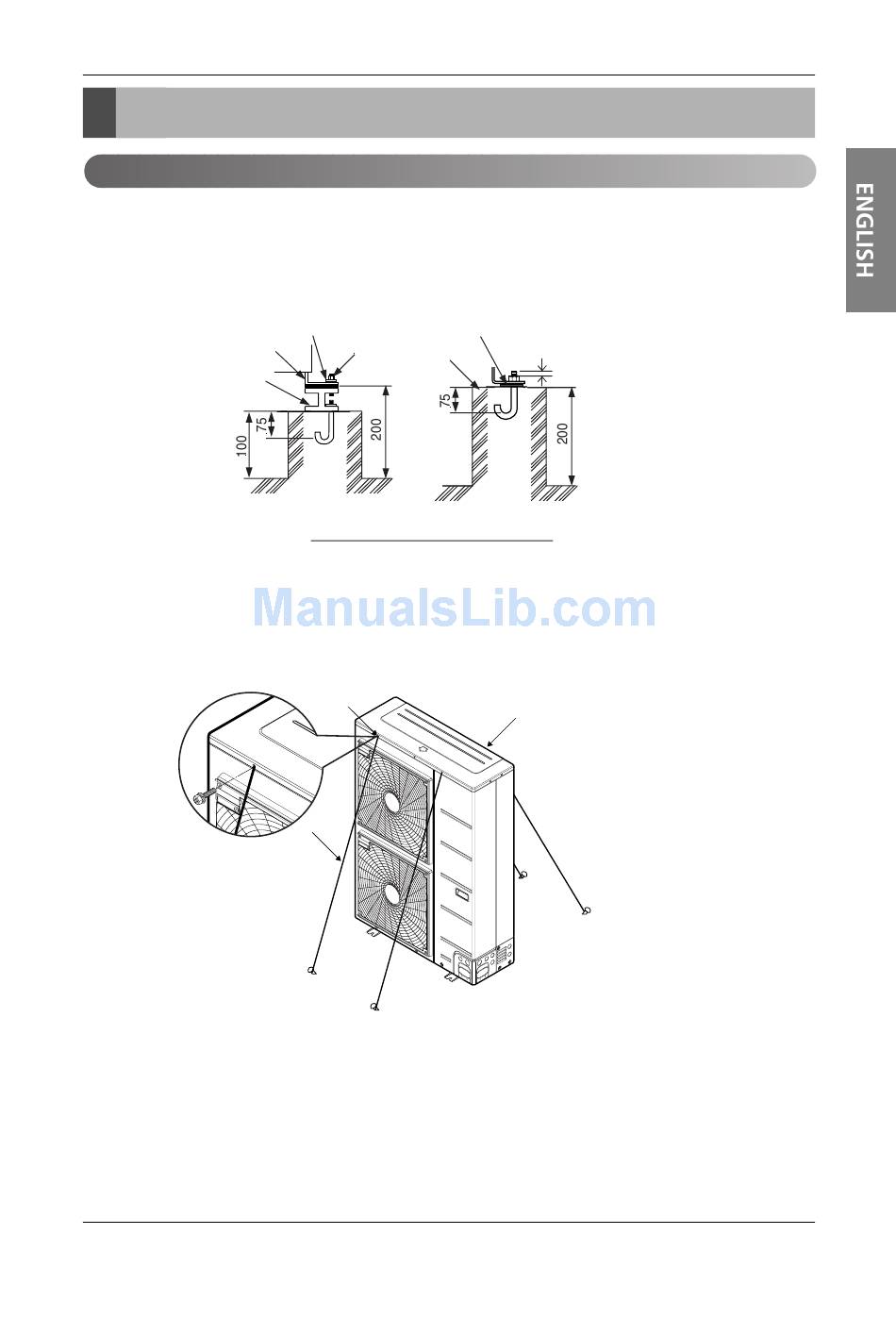

Foundation for Installation
• Check the strength and level of the installation ground so that the unit will not cause any operating vibration or
noise after installation.
• Fix the unit securely by means of the foundation bolts. (Prepare 4sets of M12 foundation bolts, nuts and
washers each which are available on the market.)
• It is best to screw in the foundation bolts until their length are 20mm from the foundation surface.
H-Beam
If it is necessary to prevent the unit from falling over, install as shown in the figure.
• Prepare all 4 wires as indicated in the drawing
• Unscrew the top plate at the 4 location indicated A and B
• Put the screws through the nooses and screw them back tight
A : Location of the 2 fixation holes on the front side of the unit
B : Location of the 2 fixation holes on the rear side of the unit
C : wires
Spring washer
Concrete
Frame
Nut
base
Foundation bolt executing method
A
C
Anti-vibration
materials
Four bolt are
required
3 thread ridges
[Unit:mm]
B
Installation
Installation Manual 15
