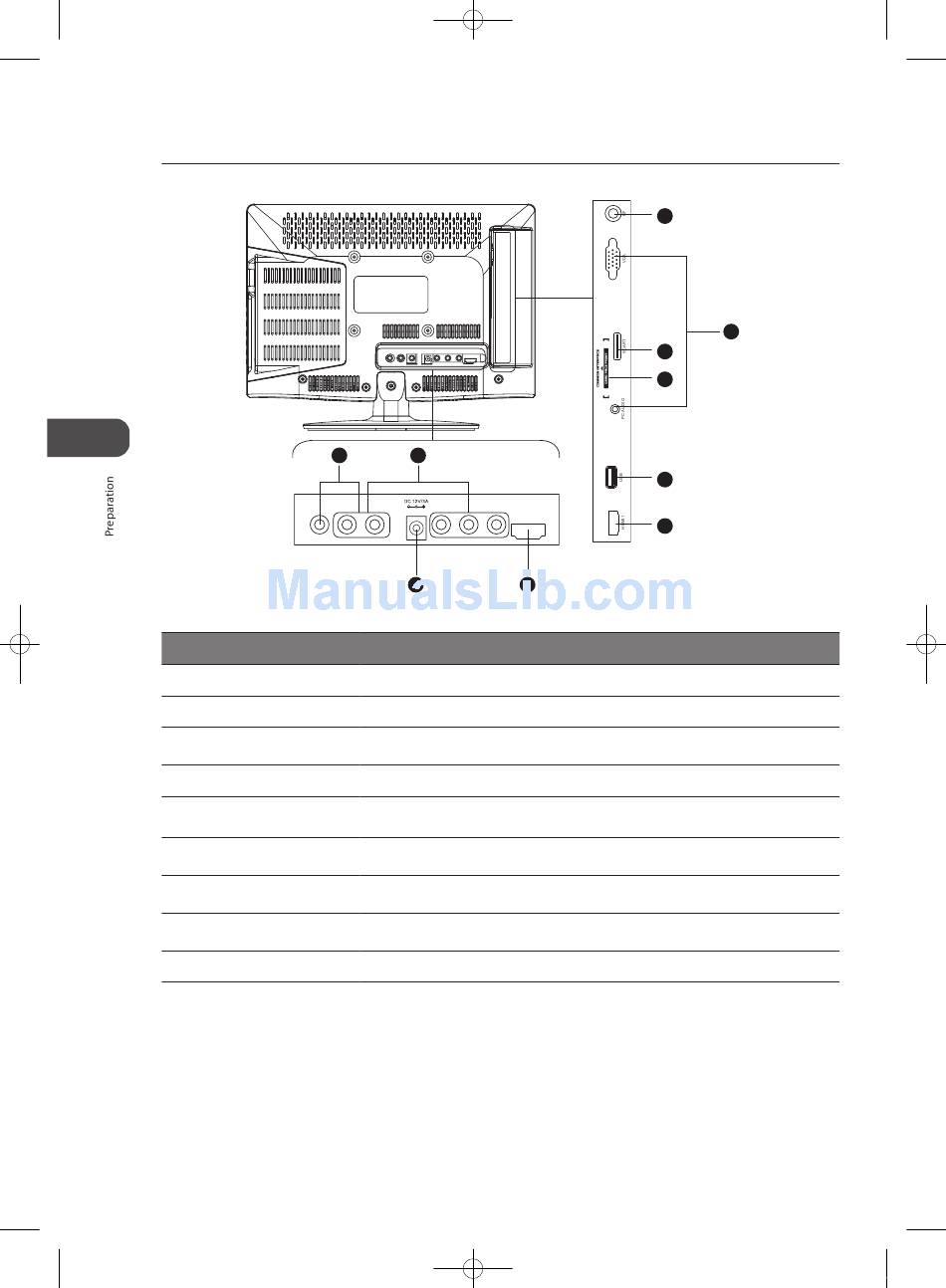

Rear.View.and.Sockets
GB
Socket
1. RF.Aerial
2. VGA./.PC.AUDIO.
3. SCART
4. COMMON.INTERFACE
5. USB
6. HDMI1./.HDMI2
7. VIDEO./.AUDIO.(L/R)
8. Y,.PB,.PR./.AUDIO.(L/R)
9. Mains.Adapter
8
C16LDVB11_IB_110404_Annie.indd 8
7 8
VIDEO L R Y Pb
9
Description
To connect to the aerial socket on the wall with the RF coaxial cable.
To connect to a computer or other devices with a VGA interface.
To connect to a VCR, DVD Player, or other AV device with a SCART output socket by using
the SCART adapter cable provided.
Allows the insertion of a Common Access Module. (Refer to page 22 for details)
Allows the insertion of a USB storage device to play video, audio, photo and text files
(DMP mode) and record DTV programmes on to a USB storage device.
To connect to a High-Definition (HD) signal output device, such as a set-top box, blu-ray
disc player or AV receiver.
To connect to the Composite VIDEO and AUDIO (L/R) output sockets on external video
devices.
To connect to a DVD player, Digital Set-Top-Box, or other AV devices with component
(YPbPr) video and audio output sockets.
Connects the mains adapter to the mains socket.
1
3
4
5
Pr
HDMI2
6
6
2
