Connections

Making.Video.and.Audio.Connections
Not all AV devices have the ability to connect to a TV, please refer to the owner's manual of your AV device for compatibility and
connection procedures.
When connecting any external AV device, do not connect the mains adapter cable to the mains socket until all other connections
are complete.
Best.Video.
Performance
GB
Connecting.an.AV.Device.with.an.HDMI.Cable
• This TV can accept High-Definition Multimedia Interface (HDMI) supports HDCP (High-Bandwidth Digital Content Protection)
Protocol.
• The TV has a total of 2 HDMI input sockets, please make sure the correct input source is selected corresponding to your
connected HDMI input socket.
• When you connect to the output of an HD ready player (blu-ray disc player, game console, set-top box or computer) switch to
the HDMI function and the TV will automatically detect the resolution used by the HDMI source.
• To get the best picture quality, adjust the blu-ray disc player, game console or set-top box output resolution up to 1920 x
1080p.

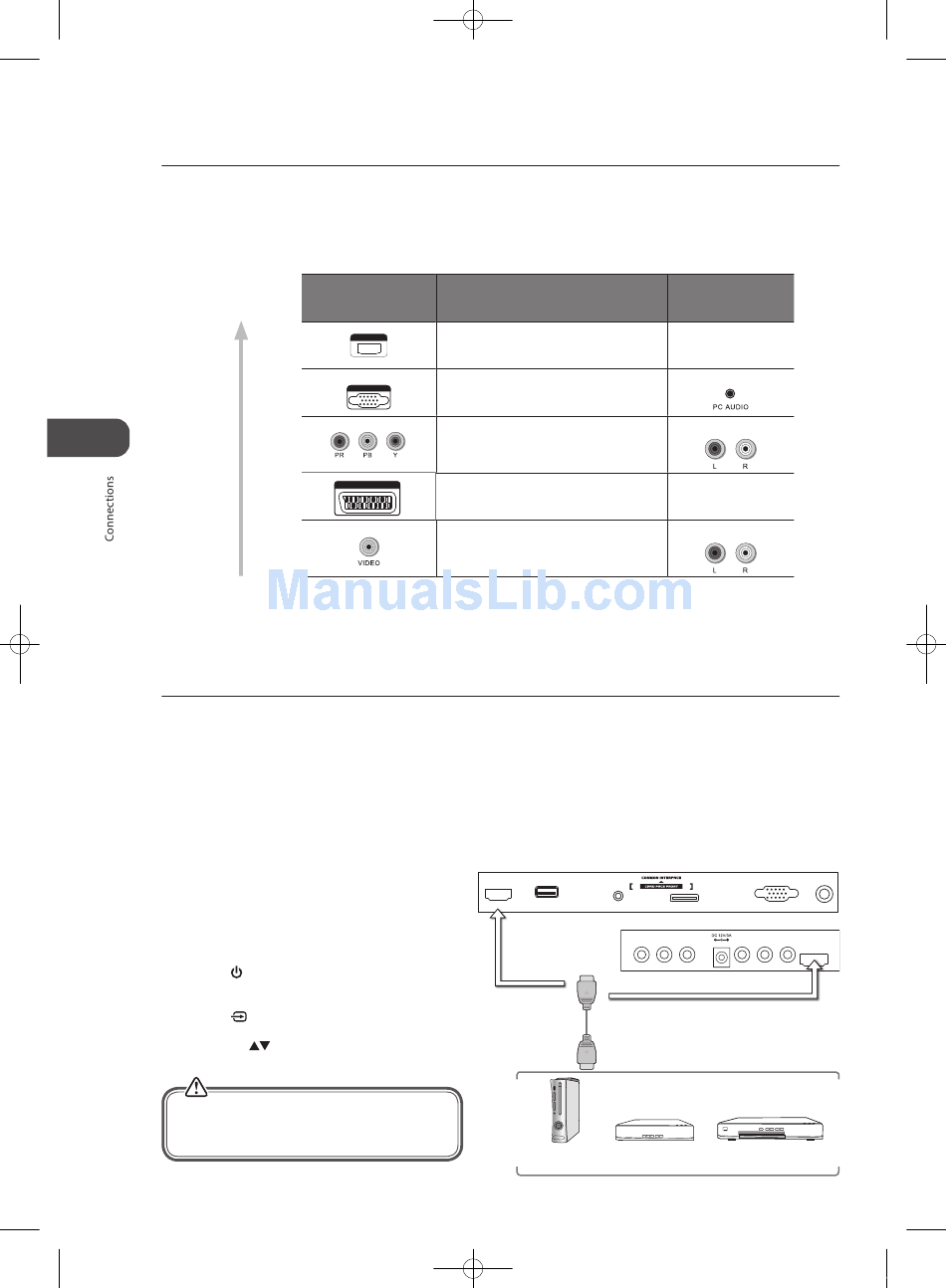

1.. Use a HDMI cable to connect the TV's HDMI input
socket to the external AV device's HDMI output socket.
2.. Plug the connected devices into the mains socket
before switching on the TV.
3.. Press the. button on the right side panel of the TV
or on the remote control to turn on your TV.
4.. Press the button on the right side panel of the TV
or on the remote control to display the Input.Source.
List. Use the
and then press the OK button to confirm.
Although this TV is able to connect to a HDMI
device, it is possible that some devices may not
operate correctly.
12
C16LDVB11_IB_110404_Annie.indd 12
HDMI
HDMI
(480i/480p/576i/576p/720p/1080i/1080p*)
VGA INPUT
VGA
Component Video
(480i/480p/576i/576p/720p/1080i/1080p*)
SCART
SCART (RGB Input)
Composite Video
*1080p: Although this TV is compatible with a 1080p input, the screen is not capable of
displaying this resolution and consequently the image will be scaled to suit the screen.
buttons to select HDMI1 / HDMI2
Signal.Type
Rear Right Side View of TV
USB
HDMI1 PC AUDIO
VIDEO L
HDMI Cable
(not included)
Game Console Set-top Box
Separate.Audio.
Connection.Required
No
Yes
Yes
No
Yes
SCART VGA RF
Rear Right Bottom View of TV
R Y Pb Pr
HDMI2
Blu-ray Player / DVD Player /
Recorder
