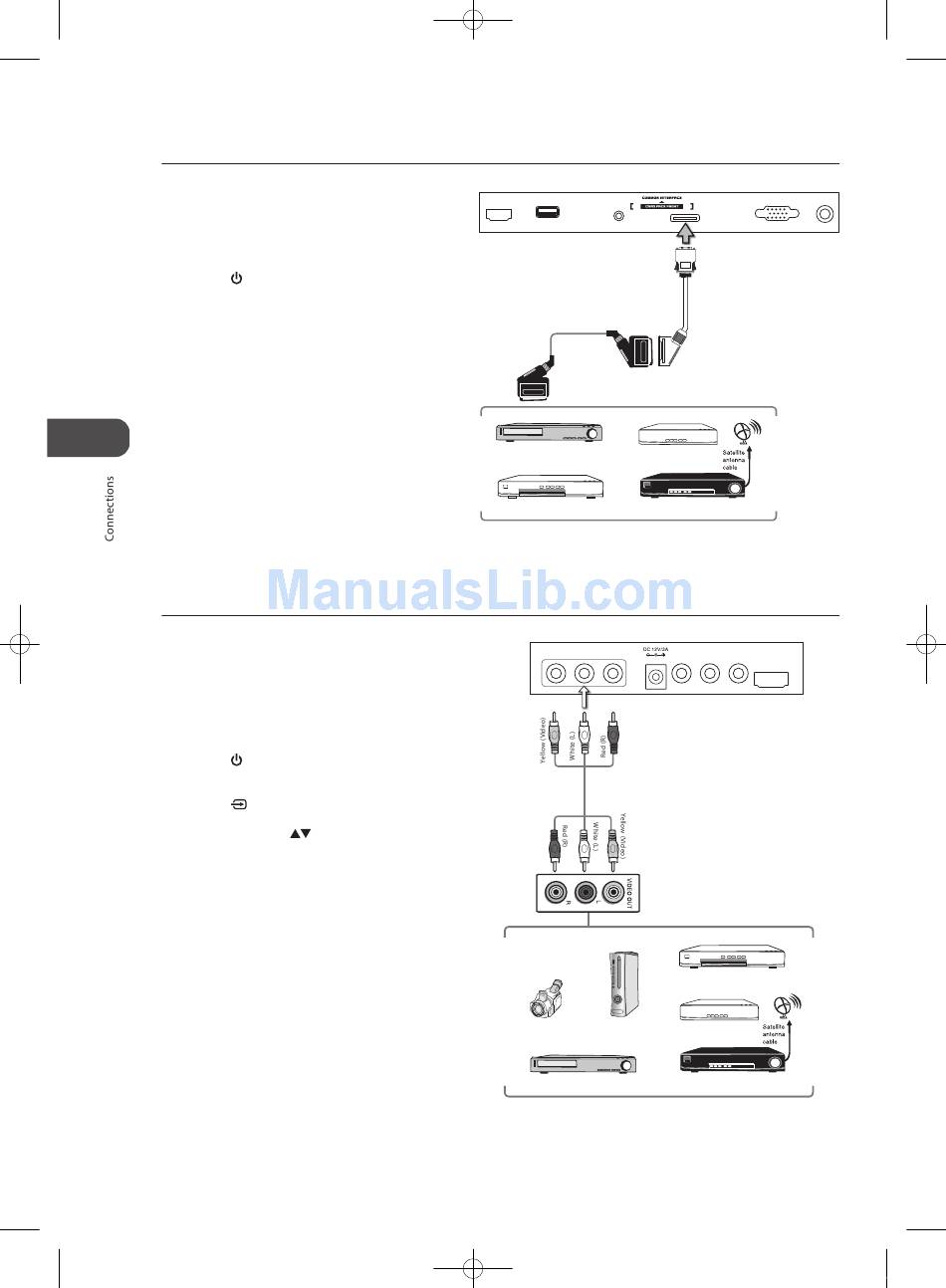

Connecting.an.AV.Device.with.a.SCART.Cable
1.. Use a SCART cable to connect the TV's SCART adapter
cable to an external AV device's SCART output socket.
2.. Plug the connected devices into the mains socket
before switching on the TV.
3.. Press the. button on the right side panel of the TV
or on the remote control to turn on your TV.
4.. The TV will change the input source to SCART
automatically once the AV device is switched on.
GB
Connecting.an.AV.Device.with.Composite.Cable
1.. Use an AV cable to connect the TV's AUDIO(L/R)
/ VIDEO input sockets to the external AV device's
composite audio / vedio output sockets. (VIDEO =
yellow, Audio Left = white, and Audio Right = red)
2.. Plug the connected devices into the mains socket
before switching on the TV.
3.. Press the. button on the right side panel of the
TV or on the remote control to turn on your TV.
4.. Press the
button on the right side panel of the
TV or on the remote control to display the Input.
Source.List. Use the
then press the.OK button to confirm.
14
C16LDVB11_IB_110404_Annie.indd 14
HDMI1
buttons to select AV and
Rear Right Side View of TV
USB
PC AUDIO
SCART
SCART Cable
(not included)
VCR
Set-top Box
DVD Player / Recorder Satellite Receiver
Rear Right Bottom View of TV
VIDEO L R Y
AV Cable
(not included)
Video Camera Game Console
VCR
VGA RF
SCART Adapter Cable
(included)
Pb Pr
HDMI2
DVD Player / Recorder
Set-top Box
Satellite Receiver
