Installing./.Removing.the.Base.Stand
• Remove the base stand before mounting the TV onto the wall.
• The LCD display is very fragile, and must be protected at all times when installing and removing the base stand. Be sure
that no hard or sharp object, or anything that could scratch or damage the LCD display, comes into contact with it. DO
NOT exert pressure on the front of the TV at any time because the screen could crack.
1.. Disconnect all cables connected to the TV.
2.. Lay the TV down on a flat surface with the back side
facing up. Please make sure to place a soft cushioned
material (such as a pillow or thick piece of foam)
beneath the screen.

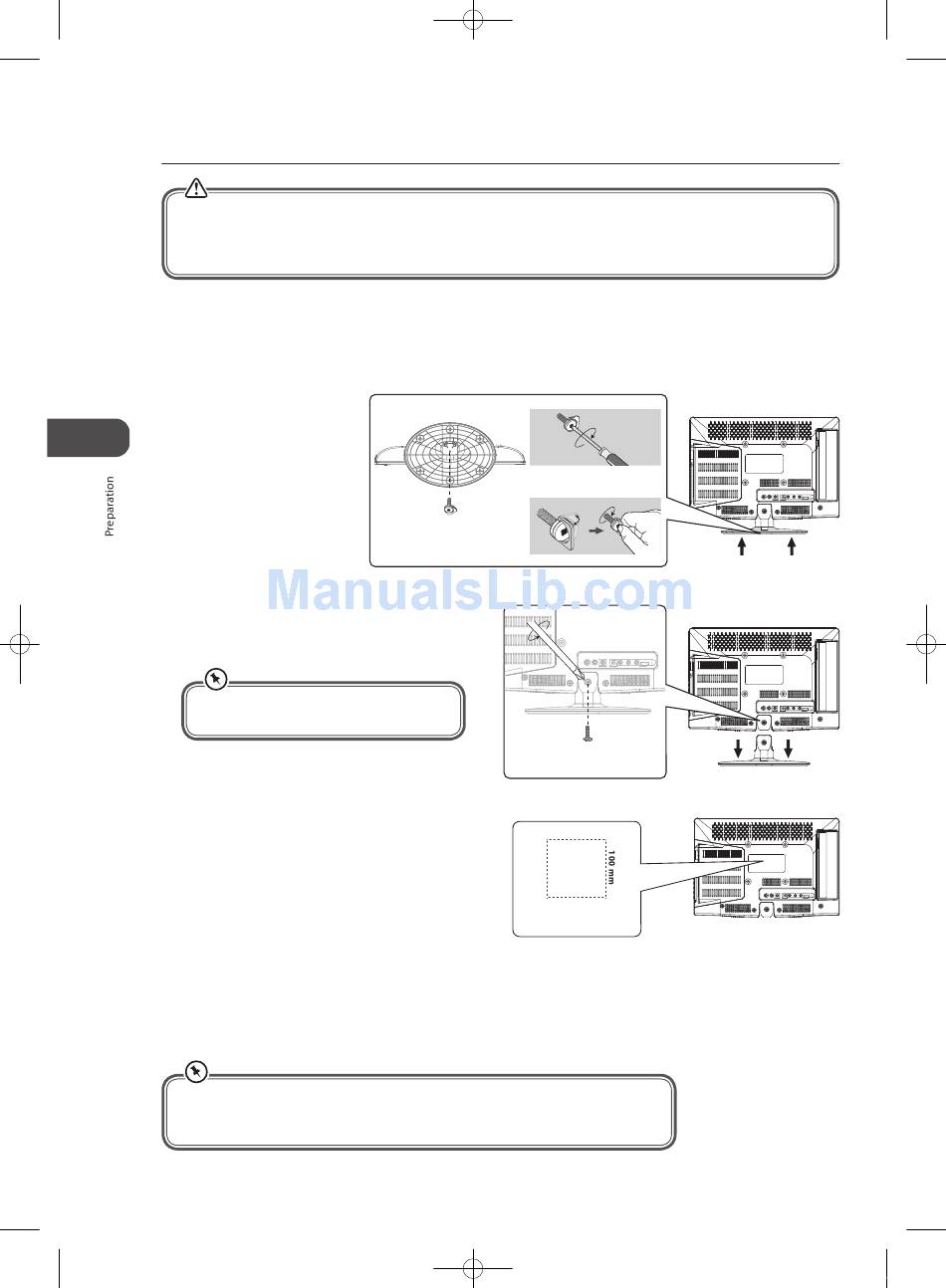

3.. To install the base stand, align
the screw hole and then secure
the base stand by hand or
GB
using a screwdriver with the
provided 1 screw.
4.. To remove the base stand, untighten the 1 screw that
holds the base stand to the rear of the TV. Slide the
base stand out.
Keep the spare screw should you want to use
the base stand option.
5.. Mounting on the wall. This TV is designed to be wall-
mounted with a standard 100 mm x 100 mm mounting
kit designed for flat-panel TVs (sold separately).
Mount this TV according to the instructions included
in the mounting kit. Due to space restrictions, we
recommend that you make all connections (refer to
page 12-15 for details) before mounting on to the wall.
• Please read this instruction manual carefully while setting up your TV.
• If you require additional assistance please call our Customer Technical Services Centre.
Tel: 0844.800.6020 (UK only)
6
C16LDVB11_IB_110404_Annie.indd 6
Screw A x 1
(P.N.:.209122231101)
unscrew
Screw B x 1
(P.N.:.209020412B1)
100.mm
Four mounting holes
(size M4x12 screw)
screw
or
screw
