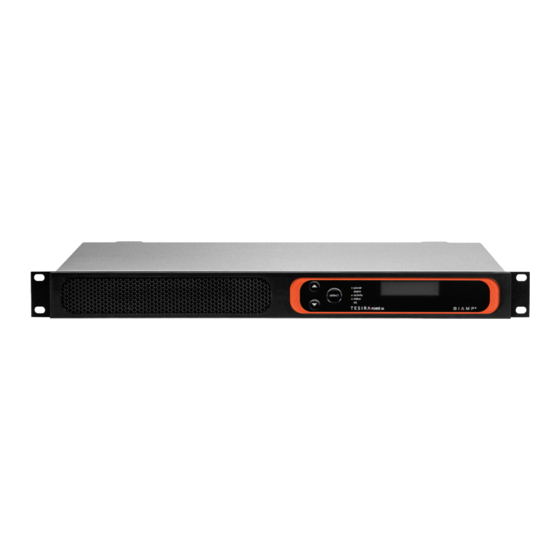

TesiraFORTÉ Fan Replacement
This article will walk you through the process to replace the fan inside of a TesiraFORTÉ unit. Please read this
document carefully in its entirety before beginning as there are delicate components inside the TesiraFORTÉ.

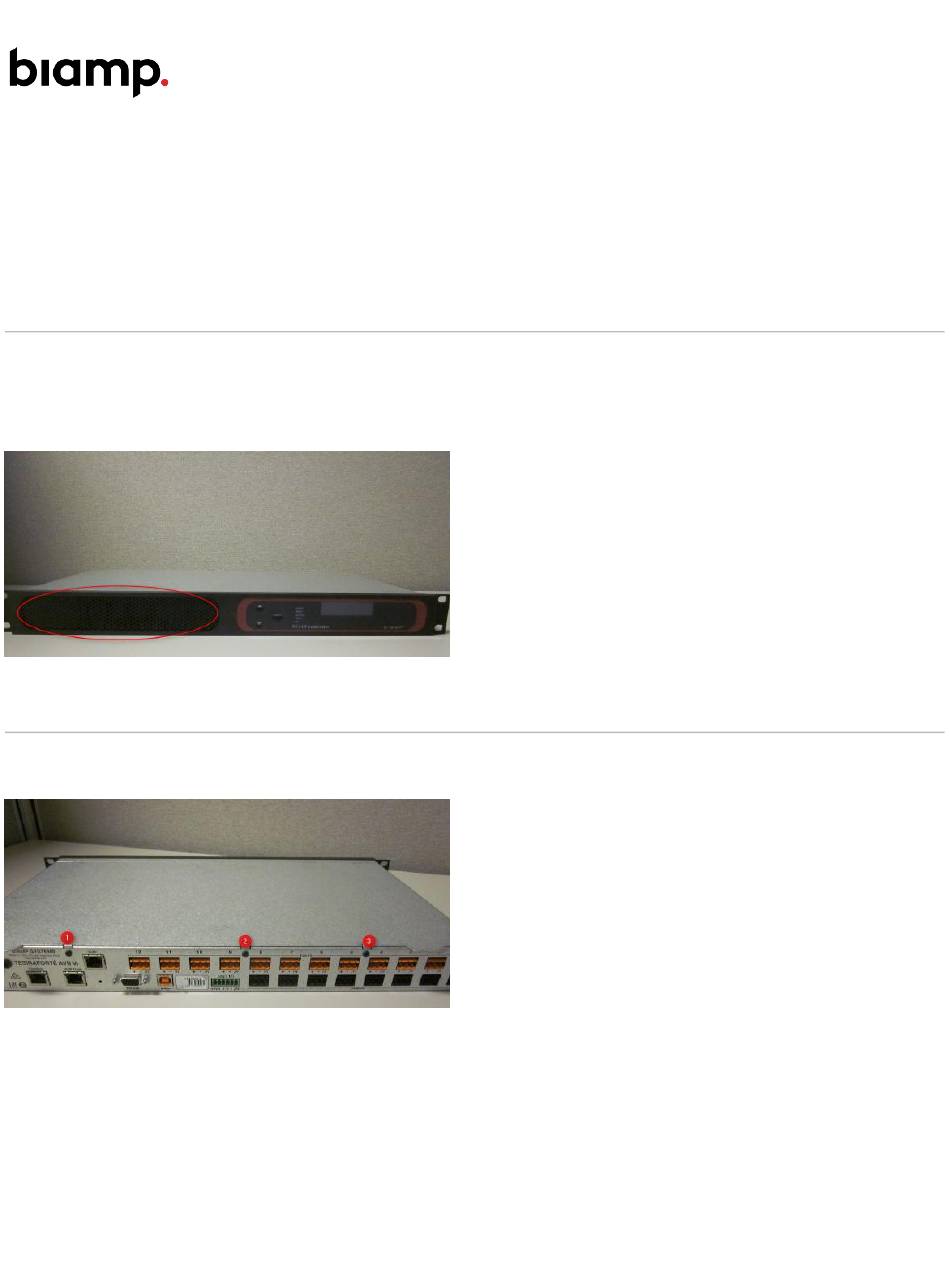

Locate the fan
The fan is located at the front of the Chassis for the TesiraFORTÉ, on the left side of the unit if you are looking straight
on at the device. Make sure that all cables are disconnected from the unit before you remove the Chassis from the rack,
and verify that the device has been powered down.
Open the chassis
Using a Phillips-head screwdriver, remove the three screws shown below from the back of the TesiraFORTÉ chassis.
Lift off the top plate to remove it and set aside.
Copyright 2013-2020 Biamp Systems
http://support.biamp.com/
1
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Biamp TesiraFORTE
Summary of Contents for Biamp TesiraFORTE
- Page 1 Open the chassis Using a Phillips-head screwdriver, remove the three screws shown below from the back of the TesiraFORTÉ chassis. Lift off the top plate to remove it and set aside. Copyright 2013-2020 Biamp Systems http://support.biamp.com/...
- Page 2 Unclasp the front panel brackets and gently slide the front panel forward. Exercise caution to avoid damaging either ribbon cable. Once the front panel is removed, rest it face side down to reduce the change of damaging the cables. Copyright 2013-2020 Biamp Systems http://support.biamp.com/...
- Page 3 Push firmly at the bottom of the fan and will slide out under the metal lip of the chassis. Ensure that you press on the bottom of the fan housing and not the fan itself. Copyright 2013-2020 Biamp Systems http://support.biamp.com/...
- Page 4 Insert the fan assembly back into the TesiraFORTÉ by hooking the fan underneath the lip of the TesiraFORTÉ frame and push inward on the bottom of the assembly to move it into place. This will require firm pressure but not enough to damage any components. Copyright 2013-2020 Biamp Systems http://support.biamp.com/...
- Page 5 Line up the front panel with the plate and press it back into place until the front panel latches are engaged. Use caution to avoid damage to the ribbon cables. If they are bent excessively or pinched, the front panel will likely no longer function. Copyright 2013-2020 Biamp Systems http://support.biamp.com/...
- Page 6 Reconnect the white ribbon cable to its receiving connector located on the main circuit board. Press straight down and take care to not bend the cable to the point of damage. The amount of pressure needed should be firm and steady, but not excessive to where it will damage the cable. Copyright 2013-2020 Biamp Systems http://support.biamp.com/...
- Page 7 Slide the top panel back into place. All metal tabs should be on the inside of the chassis leaving the outside smooth. Replace the three screws to secure the top panel and the process is complete. Copyright 2013-2020 Biamp Systems http://support.biamp.com/...
