Summary of Contents for Whirlpool AKR5200/IX

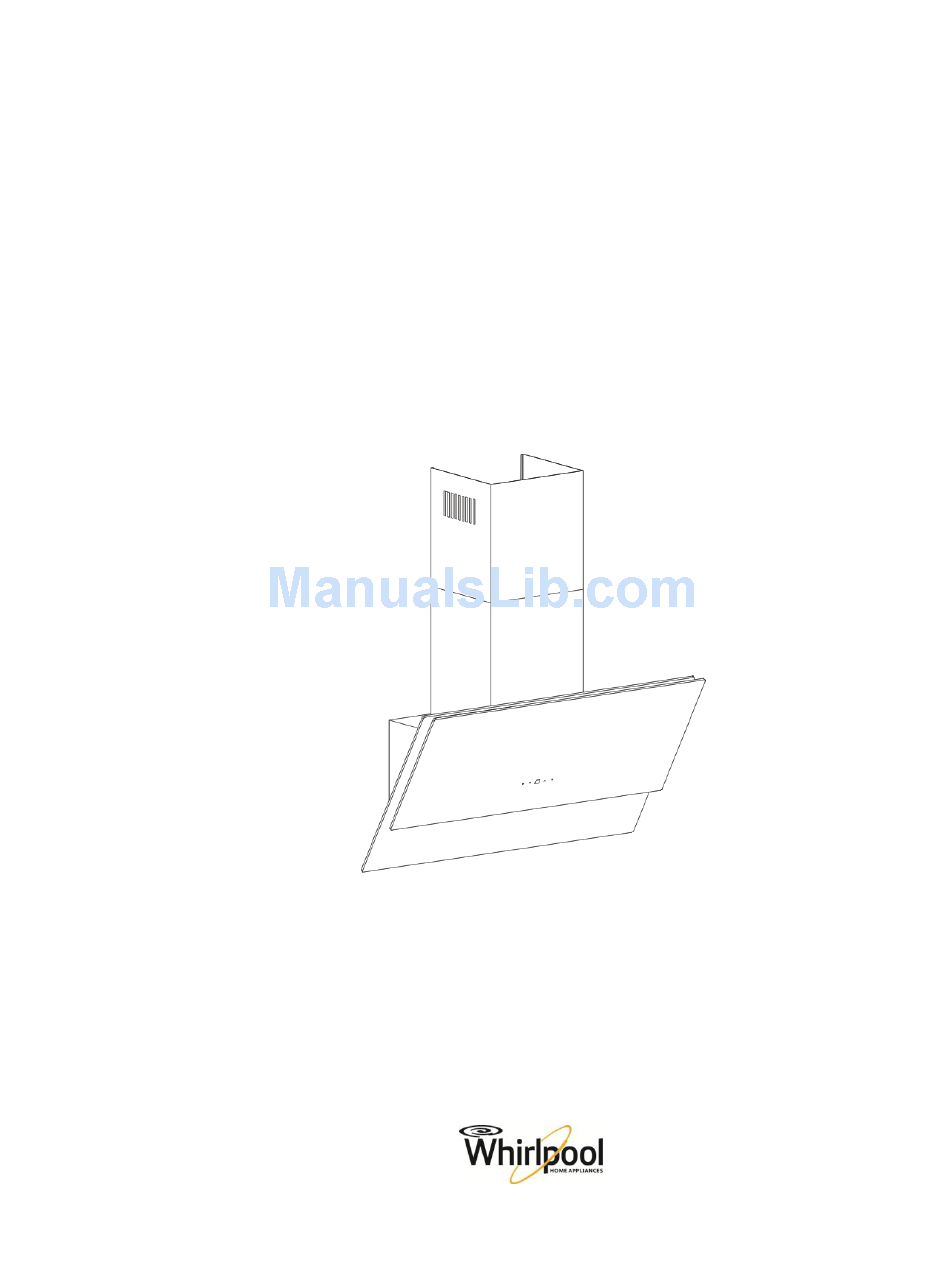

  • Page 1 Instruction Manual AKR5200/IX...

  • Page 2: Important Safety Information

    Diameter of Exhaust Pipe 150mm Product Dimension (mm) L 900 x W 390 x H 935-1410（AKR5200/IX）, Net Weight/ Gross Weight 25.5kg/31.5kg （AKR5200/IX） Important Safety Information 1. Always disconnect the hood from the power supply before carrying out any installation or maintenance operation on the appliance.
  • Page 3 3. Earthing of the appliance is compulsory. 4. Never use multi-sockets and extension leads. 5. The electrical components must no longer be accessible to the user after installation. 6. Do not touch the hood with wet parts of the body or use it when barefoot. 7.
  • Page 4 26. Do not use or leave the hood without its lamps correctly installed - risk of electric shock. 27. Wear work gloves for all installation and maintenance operations. 28. The product is not suitable for outdoor use and is designed for domestic use only 29.
  • Page 5 Installation Dimensions...
  • Page 6 Components Components 1pcs Hood Body 2pcs Steel Bolt 3pcs Cross self-drill bolt 2pcs Steel bolt Inner chimney Exhaust Exterior chimney Cross discal thread bolt 2pcs Cross discal bolt-big head 1pcs Fixing frame Plastic distensible sleeve 1pcs Instruction Manual Warranty Card Electrical Connection 1.

  • Page 7: General Recommendations

    GENERAL RECOMMENDATIONS Before use Remove cardboard protection pieces, protective film and adhesive labels from accessories. Check the appliance for any transport damage. During use To avoid any damage do not place any weights on the appliance. Do not expose the appliance to atmospheric agents. This is a heavy product;...

  • Page 8: Duct Connection

    Fig 2 Fig 3 Fitting the Chimney 1. Arrange the electrical power supply inside the chimney. 2. Adjust the width of the support bracket of the exterior chimney (Fig.3). Then fix it to the ceiling using the screws A (Fig.2) make sure that it is in line with your hood and respecting the distance from the ceiling indicated in Fig.2.
  • Page 9 2. Fix the pipe in position using 2 screws from two sides of the air outlet adapter. Maker sure the pipe is secured. REMARKS 1. A straight, short pipe will allow the hood to perform efficiently 2. Long duct, elbows and transitions will reduce performance of the hood. Use as few as possible. Bigger pipe may need when using long duct.
  • Page 10 Operation Normal Operation 1. “E” = turn ON/OFF the lamp 2. “B”= turn on at speed 1 3. ”D” = increase the speed 4. “B” = decrease the speed. Delayed off 1. “A”=Press once to turn on 15mins delayed off 2.
  • Page 11 6. The filters is dish-washer safe. 7. Please note that filters may alter color after several washes Replace Bottom Light bulb 1. Use only light bulbs with same specifications as the original one. 2. Remove light cap using a screwdriver. Please refer to Fig A 3.
  • Page 12 Fig 2 Hood Cleaning 1. Use soap or mild detergent with hot water to clean the hood 2. Rinse with water and wipe dry with a dry and clean cloth 3. For discolorations or deposits that persist, use a non-scratching household cleanser or stainless steel polishing powder with a little water and a soft cloth.
  • Page 13 Hood and Hob is too high Filter is choked Clean filter and refit in its place Duct is damaged Call consumer service for support Whirlpool Hong Kong Ltd. 17/F., Elite Centre, 22 Hung To Road Kwun Tong, Kowloon, H.K.
