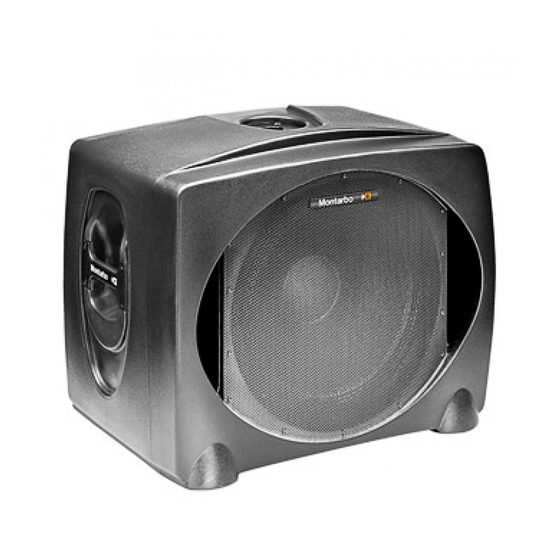

Montarbo SW 540 Instruction Manual
  1. Manuals
  2. Brands
  3. Montarbo Manuals
  4. Subwoofer
  5. SW 540
  6. Instruction manual

Montarbo SW 540 Instruction Manual

Hide thumbs Also See for SW 540:
Table of Contents

Advertisement

Available languages

Available languages

Quick Links

See also: Instruction Manual
SW 540

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SW 540 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Montarbo SW 540

Summary of Contents for Montarbo SW 540

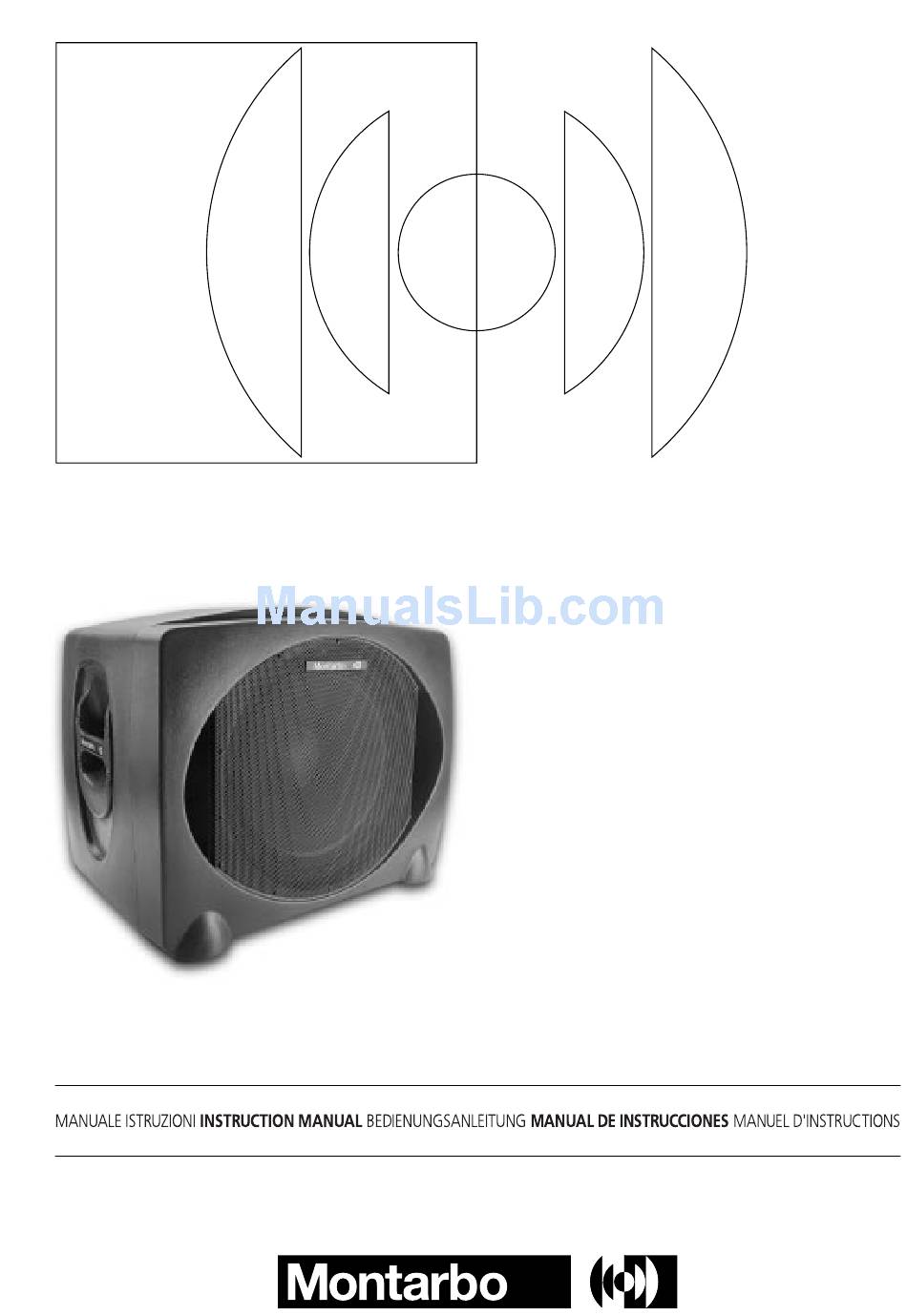

  • Page 1 SW 540 active subwoofer...

  • Page 2: Dati Tecnici

    Per evitare il rischio di incendio e/o folgorazione, non aprirlo. Per qualsiasi intervento di manutenzio- ne o riparazione, rivolgersi alla Elettronica Montarbo srl e/o a personale altamente qualificato specificamente segnalato da questa. - Nel predisporre l'apparecchio all'utilizzo, assicurarsi che la forma e la portata della superficie di appoggio siano idonee a sostenerlo.
  • Page 3 Il cabinet incorpora: un woofer da 15" ad altissima escursione , realizzato su Un modello di nuovissima concezione che valorizza specifiche Montarbo, in grado di sopportare potenze ulteriormente la gamma dei subwoofer attivi Montarbo. elevatissime. SW540 si distingue per il design innovativo del cabinet 1 amplificatore aMosFet in classe AB (550 W continui, monolitico in polietilene ad alta densità.
  • Page 4 In entrambi i casi il livello di uscita del mixer. Se utilizzate un mixer Montarbo segnale è indipendente dal controllo di volume (5).
  • Page 5 I nostri esempi mostrano il subwoofer SW540 insieme alle • Il controllo di volume ('input level') del subwoofer SW540 casse amplificate Montarbo W400A usate come 'satelliti'. non regola anche il volume della cassa acustica. Porre il Per quanto questo rappresenti un abbinamento ottimale, controllo di volume di questa al massimo ed eventualmente il sub SW540 può...
  • Page 6 SW 540 NOTA: Se disponete di un mixer amplificato provvisto di prese quali avrete precedentemente collegato l'anella (RING) con insert sulle uscite master L-R, e volete utilizzare il subwoofer la punta (TIP) cortocircuitandole, ed inviarlo agli ingressi del senza escludere le uscite di potenza, potete prelevare il subwoofer mediante XLR sbilanciati.
  • Page 7 Se il mixer ha uscite sbilanciate XLR: - se il mixer non è un Montarbo, è bene accertarsi che le • Proteggere l'apparecchio dal rovesciamento accidentale di liquidi o sostanze di qualsiasi tipo. In particolare nelle condi-...
  • Page 8 This product does not contain user serviceable parts. To prevent fire and/or electrical shock, never open it. For maintenance and servicing always refer to the official Montarbo Distributor in your State or to qualified personnel specifically authorised by the Distributor.
  • Page 9 The cabinet is equipped with: 15" extra large displacement woofer, custom-built to A brand new model which further enhances the range of Montarbo specifications, stands to extremely high power Montarbo active subwoofers. levels. SW540 stands out through the innovative design of the built-in Mosfet (class A-B) power amplifier: one piece cabinet made from high-density polyethylene.
  • Page 10 (2), to receive a of the built-in power amplifier to the output level of the mixer. If you are using a Montarbo mixer (or any other mixer full-range signal or the upper audio range only. In both...
  • Page 11 Our examples are showing the SW540 subwoofer enclosure • The output levels of the active speaker enclosures used as in conjunction with the Montarbo W400A powered speakers satellites are not affected by the volume control of the SW540. First set the speaker system's volume controls to used as "satellite"...
  • Page 12 SW 540 Connection examples NOTE: Our configuration examples are using the L and R master Take out the signal from the insert sockets by means of a outputs of the mixer, but if they are already taken up (as, stereo jack plug, in which you have previously joined the...
  • Page 13 If the mixer has XLR unbalanced outputs: people, musicians, technicians or anyone put glasses, cups, - in this case, unless you are using a Montarbo mixer, make ashtrays or cigarettes on the enclosure. sure that the XLR outputs on the mixer are unbalanced to IEC 268 standard: 1 = GND, 2 = HOT, 3 = GND.
  • Page 14 SW 540 APPENDIX Specifications __________________________________________ Block diagram __________________________________________ __________________________________________ Connectors __________________________________________ Connection example A __________________________________________ Connection example B __________________________________________ Connection example C __________________________________________ Parallel Connection __________________________________________ Spare parts __________________________________________ APPENDIX...
  • Page 15 SW 540 Specifications Speaker System bass-reflex • Power Handling 850W 4 Ω • Impedance 38Hz ÷ 120Hz • Frequency Response • Sensitivity (1W, 1m) 99 dB • Max. S P L: 128 dB • Built-in electronic crossover: Crossover frequency 120Hz...
  • Page 16 SW 540 Block diagram APPENDIX...
  • Page 17 SW 540 Connectors 1 GND Ground 3 GND Ground SERIAL N. 1 GND Ground Cold UNBALANCED XLR UNBALANCED XLR (standard IEC 268) MALE SOCKETS FEMALE CONNECTORS BALANCED XLR BALANCED XLR MALE CONNECTORS FEMALE SOCKETS BALANCED XLR BALANCED XLR MALE SOCKETS...
  • Page 18 SW 540 Connection example A one SW540 + two W400A active systems mixer L / R outputs SW540 L / R inputs SW540 L / R outputs W400A inputs W400A W400A MID CTLR LINK MID CTLR LINK flat flat flat...
  • Page 19 SW 540 Connection example B two SW540 + two W400A active systems mixer L / R outputs SW540 'R/ ' inputs MONO SW540 'R' outputs W400A inputs W400A W400A MID CTLR LINK MID CTLR LINK flat flat flat flat line...
  • Page 20 SW 540 Connection example C one SW540 + two W400A active systems mixer 'AUX' output SW540 'R/ ' input MONO mixer 'L' output W400A input mixer 'L' output W400A input W400A W400A MID CTLR LINK MID CTLR LINK flat flat...
  • Page 21 SW 540 Parallel connection of two or more systems mixer L / R outputs SW540 'R/ ' inputs MONO SW540 'LINK' outputs SW540 inputs SERIAL N. SERIAL N. SERIAL N. SERIAL N. SERIAL N. SERIAL N. MIXER OUTPUTS APPENDIX...
  • Page 22 SW 540 Spare parts B010020 D521190 D52SW52 D52SW5T D00SW5F A300090 B005021 D202542 STAND HOLDER B010020 WOOFER 15" PK40 8 Ω A300090 CONTROL & CONNECTION PANEL D52SW52 AMPLIFIER CHASSIS: D52SW52 POWER AMPLIFIER HEAT SINK D52SW5T POWER AMPLIFIER D00SW5F POWER TRANSFORMER B005021...
  • Page 23 Elettronica Montarbo srl no puede ser conside- La Elettronica Montarbo srl non può essere Elettronica Montarbo srl ne peut être rada responsable de daños que puedan ser ritenuta responsabile per danni o incidenti a consideré...
