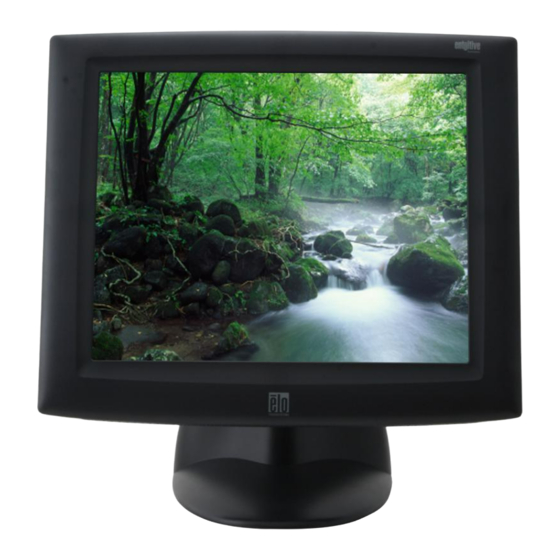

- Page 1 Elo 1725L 17” Touch Screen Monitor Installation Guide Product Name: Elo 1725L 17- inch Monitor 0621407...
- Page 2 Elo 1725L 17” Touch Screen Monitor Installation and Configuration Guide Copyright © 2007 McKesson Corporation. All rights reserved. This documentation is an unpublished work of McKesson Corporation, which may be used only in accordance with a license agreement with McKesson Corporation. Any unauthorized use, duplication, or disclosure is prohibited.
-
Page 3: Table Of Contents
Elo 1725L 17” Touch Screen Monitor Installation and Configuration Guide Table of Contents Supported Operating Systems.................... 4 Cable Installation ......................4 Touch Screen Drivers ....................4 Windows NT 4.0 System Drivers ..................5 Calibrating the Touch Screen on Windows NT.............. 8 Windows XP and Windows Server 2003 Drivers.............. -
Page 4: Supported Operating Systems
Please review and select the installation instructions that match your operating system. Cable Installation There are two cable options (USB and Serial) for the Elo 1725L monitor. Refer to the Quick Installation Guide included with the monitor for additional information. -
Page 5: Windows Nt 4.0 System Drivers
Elo 1725L 17” Touch Screen Monitor Installation and Configuration Guide Windows NT 4.0 System Drivers Use the following steps to install the Elo Touch Screen drivers for Windows NT4.0 systems. 1. Insert the CD labeled MPS Elo 17” Touch Screen Monitor Installation into the CD-ROM drive. - Page 6 Elo 1725L 17” Touch Screen Monitor Installation and Configuration Guide 3. Click Next. A window similar to the following displays: 4. Click Yes. A window similar to the following displays: McKesson Pharmacy Systems Page 6 of 19...
- Page 7 Elo 1725L 17” Touch Screen Monitor Installation and Configuration Guide 5. Select the COM port to which the Elo supplied serial cable is attached, and then click Next. The driver files transfer and then a window similar to the following displays: 6.
-
Page 8: Calibrating The Touch Screen On Windows Nt
Elo 1725L 17” Touch Screen Monitor Installation and Configuration Guide Calibrating the Touch Screen on Windows NT Use the following steps to calibrate the Elo 1725L Touch Screen Monitor. To calibrate the Elo Touch Screen: 1. Select Start | Settings | Control Panel. A window displays similar to the following: 2. - Page 9 Elo 1725L 17” Touch Screen Monitor Installation and Configuration Guide 3. Select Align. A window displays similar to the following: Touch the red circle as it moves to the different locations on the touch screen. Be sure to touch the screen carefully and firmly. When calibration is complete you will have 30 seconds to select Yes to save the calibration.
-
Page 10: Windows Xp And Windows Server 2003 Drivers
Elo 1725L 17” Touch Screen Monitor Installation and Configuration Guide Windows XP and Windows Server 2003 Drivers Use the following steps to install the Elo Touch Screen driver for Windows XP and Windows Server 2003 systems. 1. Insert the CD labeled MPS Elo 17” Touch Screen Monitor Installation. When the CD autoruns a menu displays similar to the following: IMPORTANT: Verify that the USB cable is connected at this time. - Page 11 Elo 1725L 17” Touch Screen Monitor Installation and Configuration Guide 3. Click Next. A window displays similar to the following: 4. Select Install USB Touchscreen Drivers, and then click Next. A window displays similar to the following: 5. Click Yes.
- Page 12 Elo 1725L 17” Touch Screen Monitor Installation and Configuration Guide A window displays similar to the following: The drivers are installed to the system and a window displays similar to the following: 6. Select the Calibrate Elo Touchscreen monitors option.
- Page 13 Elo 1725L 17” Touch Screen Monitor Installation and Configuration Guide The calibration window displays similar to the following: Touch the red circle as it moves to the different locations on the touch screen. Be sure to touch the screen carefully and firmly. When calibration is complete you will have 30 seconds to select Yes to save the calibration.
-
Page 14: Windows Vista Drivers
Elo 1725L 17” Touch Screen Monitor Installation and Configuration Guide Windows Vista Drivers Use the following steps to install the Elo Touch Screen driver on Windows Vista machines. IMPORTANT: Do not connect the USB cable from the monitor to the computer until instructed to do so during the installation. - Page 15 Elo 1725L 17” Touch Screen Monitor Installation and Configuration Guide 3. Click Install Touch Screen Drivers. A window displays similar to the following: 4. Verify that Default displays in the drop-down list. 5. Click Next. A window displays similar to the following: 6.
- Page 16 Elo 1725L 17” Touch Screen Monitor Installation and Configuration Guide A window displays similar to the following: 7. Click Yes. A window displays similar to the following: Files are installed to the system. McKesson Pharmacy Systems Page 16 of 19...
- Page 17 11. Close the message window by clicking the X in the top right corner. The Elo monitor must be calibrated. See the following section Calibrating the Elo 1725L on Vista. McKesson Pharmacy Systems...
-
Page 18: Calibrating The Elo 1725L On Vista
Elo 1725L 17” Touch Screen Monitor Installation and Configuration Guide Calibrating the Elo 1725L on Vista Use the following steps to Calibrate the Elo on a Vista system. 1. Click Start | Control Panel. 2. Double-click Elo Touchscreen. A window displays similar to the following: 3. - Page 19 Elo 1725L 17” Touch Screen Monitor Installation and Configuration Guide 5. Click Cancel to close the Elo Touchscreen Properties window. 6. Close all open windows 7. Remove the CD from the CD ROM drive. The Elo monitor is ready for use.
