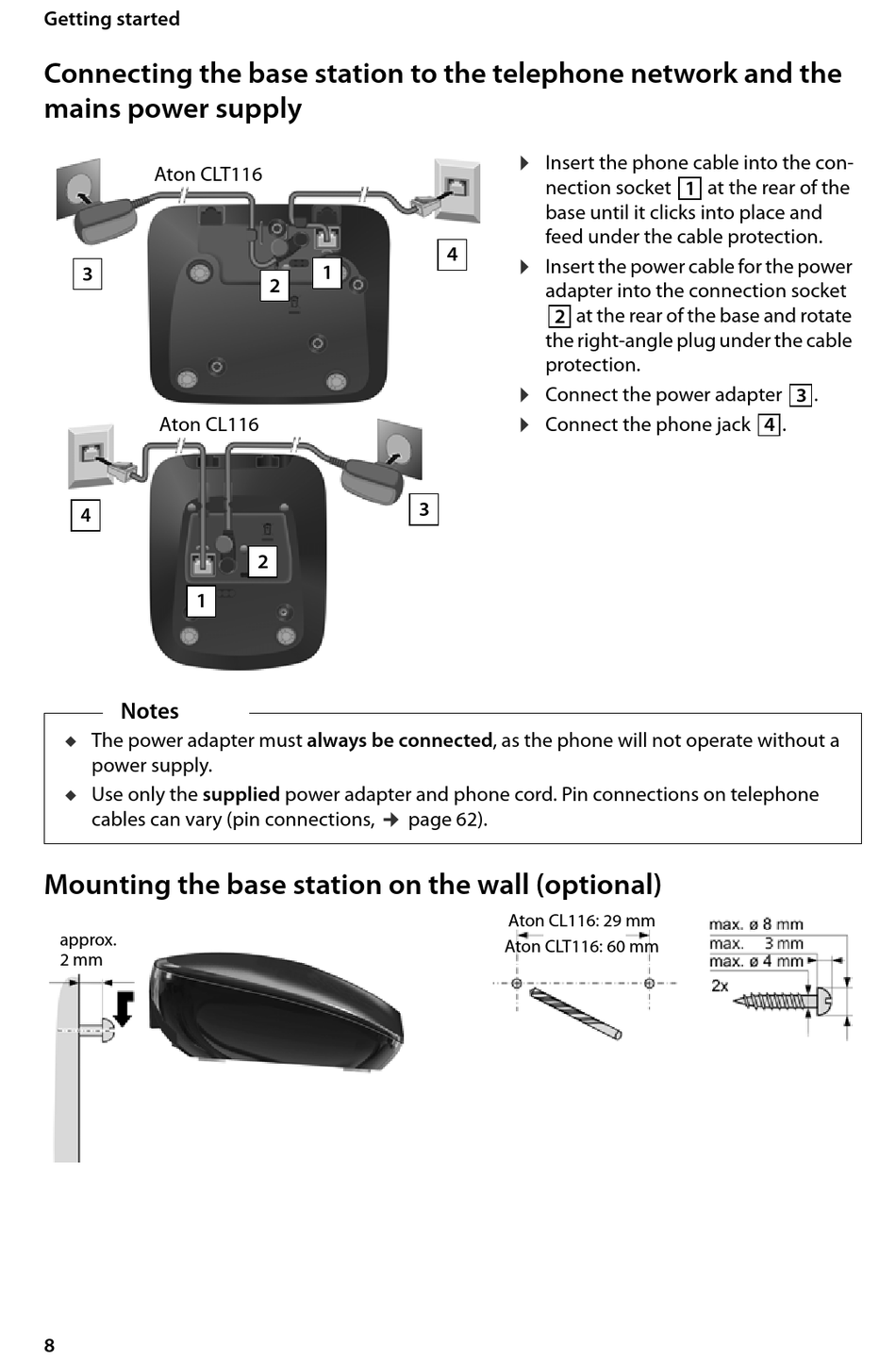

Getting started
Connecting the base station to the telephone network and the
mains power supply
Aton CLT116
3
Aton CL116
4
1
Notes
u
The power adapter must always be connected, as the phone will not operate without a
power supply.
u
Use only the supplied power adapter and phone cord. Pin connections on telephone
cables can vary (pin connections,
Mounting the base station on the wall (optional)
approx.
2 mm
8
1
2
3
2
¢
page 62).
¤
Insert the phone cable into the con-
nection socket
base until it clicks into place and
feed under the cable protection.
¤
4
Insert the power cable for the power
adapter into the connection socket
at the rear of the base and rotate
2
the right-angle plug under the cable
protection.
¤
Connect the power adapter
¤
Connect the phone jack
Aton CL116: 29 mm
Aton CLT116: 60 mm
1 at the rear of the
.
3
4 .
