SERVICE MANUAL
Ver. 1.0 2013.09
9-893-850-01
Sony Corporation
2013I33-1
©
2013.09
Published by Sony Techno Create Corporation
XA-NV300T
SPECIFICATIONS
Power requirements:
USB 5V DC
Dimensions (GPS module):
Approx. 90 mm × 50 mm× 18.5 mm
(3
/
in × 2 in ×
/
in) (w/h/d)
5
3
8
4
Mass:
Approx. 80 g (3 oz)
Package contents:
GPS module (1)
Map data memory (1)
Hook and loop fastener (2)
GPS antenna (aerial) (1)
Mounting sheet (1)
Design and specifications are subject to change without notice.

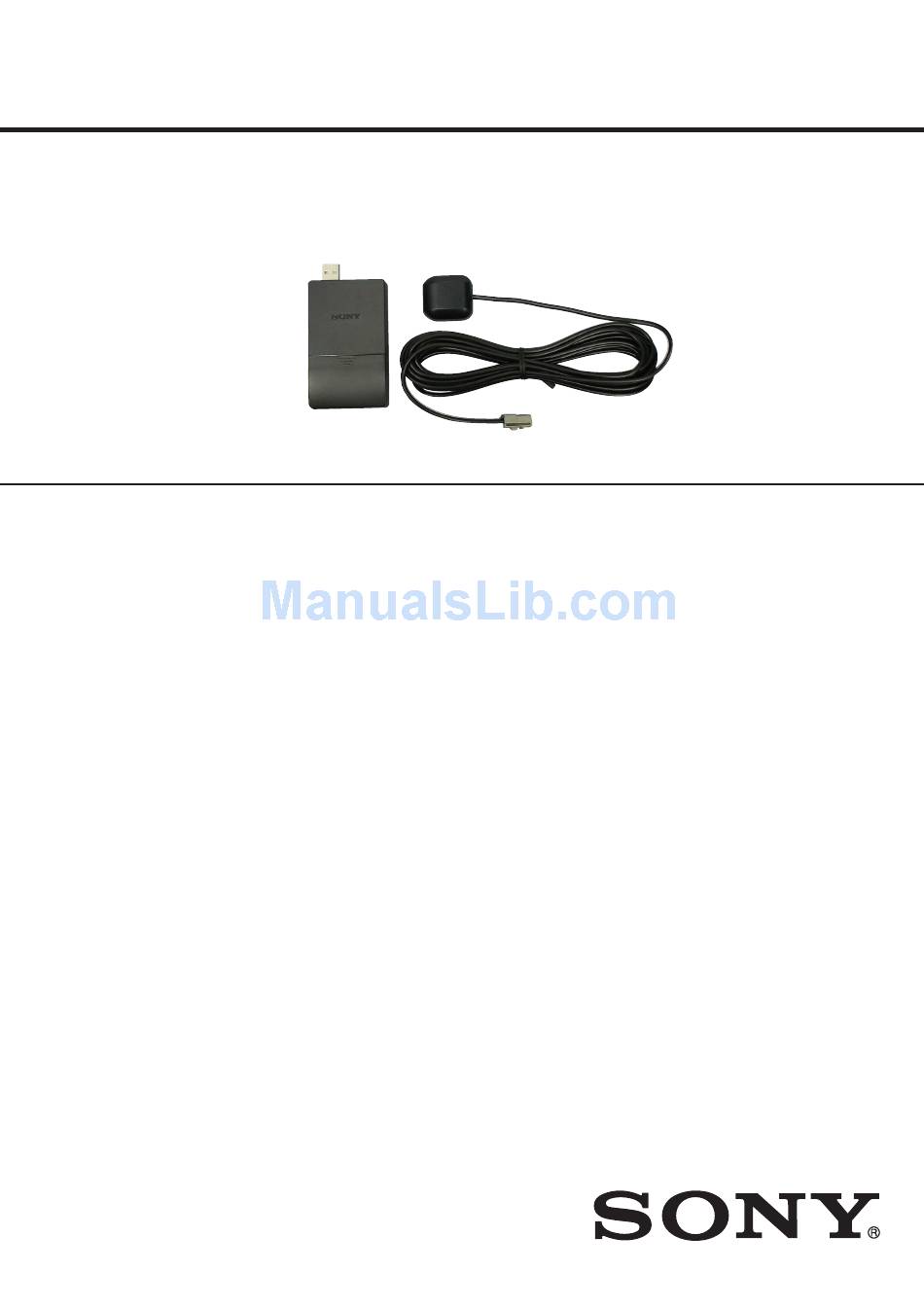

GPS MODULE FOR AV CENTER
US Model
Canadian Model
AEP Model
UK Model
Australian Model
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Sony XA-NV300T
Summary of Contents for Sony XA-NV300T
- Page 1 Map data memory (1) Hook and loop fastener (2) GPS antenna (aerial) (1) Mounting sheet (1) Design and specifications are subject to change without notice. GPS MODULE FOR AV CENTER 9-893-850-01 Sony Corporation 2013I33-1 © 2013.09 Published by Sony Techno Create Corporation...
- Page 2 XA-NV300T SECTION 1 This section is extracted GENERAL from instruction manual. Loop fastener Cierre de lazo Striscia a occhiello Bande auto-agrippante (velours) Hook fastener Klettband mit Schlaufen Cierre de gancho Zijde met lusjes Striscia a gancio Bande auto-agrippante (crochets) Klettband mit Widerhaken...
- Page 3 XA-NV300T SECTION 2 PARTS LIST Ref. No. Part No. Description Remark 4-484-161-11 MANUAL, INSTRUCTION (ENGLISH, SPANISH, ITALIAN, FRENCH, GERMAN, DUTCH) A-1991-258-A OVERALL ASSY, MAIN (GPS module) 1-458-763-11 SD CARD (MAP US) (Map data memory) (US, Canadian) 1-458-763-21 SD CARD (MAP WE) (Map data memory)
- Page 4 XA-NV300T REVISION HISTORY Checking the version allows you to jump to the revised page. Also, clicking the version at the top of the revised page allows you to jump to the next revised page. Ver. Date Description of Revision 2013.09...
