Summary of Contents for Seeley CP15HW2

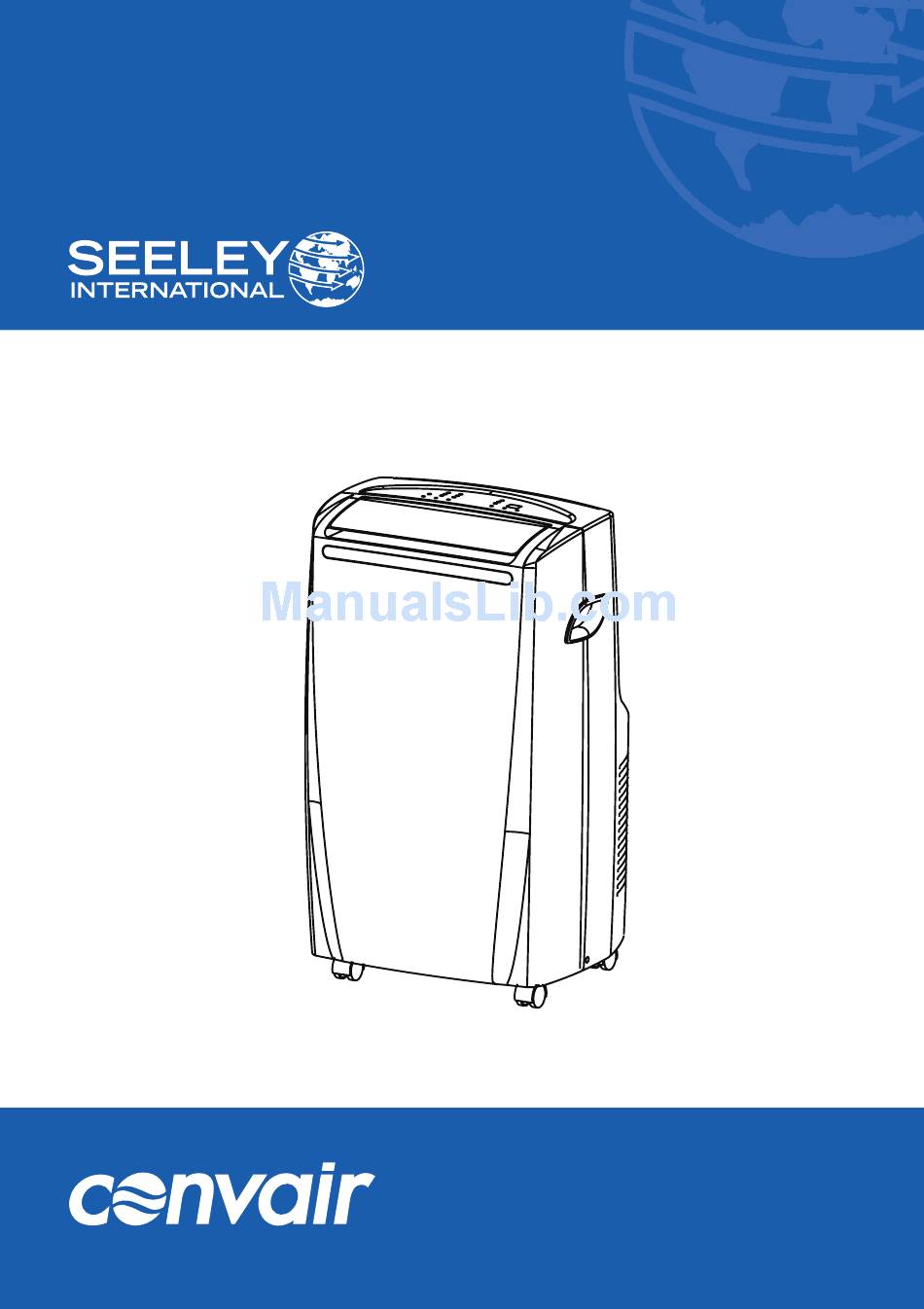

- Page 1 OWNER’S MANUAL Portable Reverse Cycle Air Conditioner CP15HW2 (English) (CP15HW2) ®...
-
Page 2: Table Of Contents
Component location......3 Installation ........4 Control and Display panel ....5 Remote control ........6 Operation........7-8 Maintenance ........9 Troubleshooting ......10 Specifications.........11 Warranty ........12-13 Please read these instructions prior to using the appliance and save them for future reference. CP15HW2 Portable Reverse Cycle Air Conditioner... -
Page 3: Introduction
INTRODUCTION... -
Page 4: Safety
During operation, water will collect in the bottom tank of the air conditioner. Be careful when moving the unit to prevent water from spilling. Electrical Safety Ensure the appliance has been installed in accordance with national wiring regulations. CP15HW2 Portable Reverse Cycle Air Conditioner... -
Page 5: Component Location
Control/Display Panel Remote Reciever Air Outlet Handle Drain Pump Connector Remote Control Evaporator Exhaust Hose Air Intake Condenser Air Intake Evaporator Hose End Drain Plug Drain Pump Connector Release Button Cord Storage Exhaust Nozzle Drain Pump (window end) Outlet Rating Label Drain Power Cord... -
Page 6: Installation
CP15HW2 Portable Reverse Cycle Air Conditioner... -
Page 7: Control And Display Panel
CONTROL AND DISPLAY PANEL Mode Setting Fan Speed Lights Indicator Lights Green - Cooling Low - 1 Light Current Display Orange - Dehumidify Timer Water Full Medium - 2 Lights Temperature Yellow - Fan Indicator Indicator High - 3 Lights Indicators Red - Heating Power ON / OFF... -
Page 8: Remote Control
REMOTE CONTROL Signal transmission point Power ON / OFF button Battery Fan speed compartment adjust button Mode buttons (Cool-Dehumidify-Fan-Heating) Battery cover NOTE: WASTE BATTERIES SHOULD BE DISPOSED OF CORRECTLY CP15HW2 Portable Reverse Cycle Air Conditioner... - Page 10 CP15HW2 Portable Reverse Cycle Air Conditioner...
-
Page 11: Maintenance
MAINTENANCE Remove filter from the air conditioner and clean every 2 weeks. Press button to release End of season storage: • Drain any water from the unit. • Operate the unit in fan only mode for a few hours, to thoroughly dry the inside. •... -
Page 12: Troubleshooting
Never try to dismantle the air conditioner yourself. In case of problems that cannot be fixed by using the above guide, or if service on your air conditioner is required, please contact your dealer or designated service agent. CP15HW2 Portable Reverse Cycle Air Conditioner... -
Page 13: Specifications
Model CP15HW2 Function Personal Cooling & Heating Cooling Capacity (Watts) † 4100 Heating Capacity (Watts) † 3500 Power Supply 220-240V ~ 50Hz Rated Input Power (Watts) 1400 Fuse Type 3.15A / 250V Refrigerant Type / Charge (kg) R410A / 0.83 High Side Pressure - Maximum (MPa) 3.53... -
Page 14: Warranty
CP15HW2 Portable Reverse Cycle Air Conditioner... - Page 15 1300 526 410 Convair Supercool...
- Page 16 Warranty Service Australia 1-300-526-410 seeleyinternational.com ® convair.net.au 00253801-C AU 1505...
