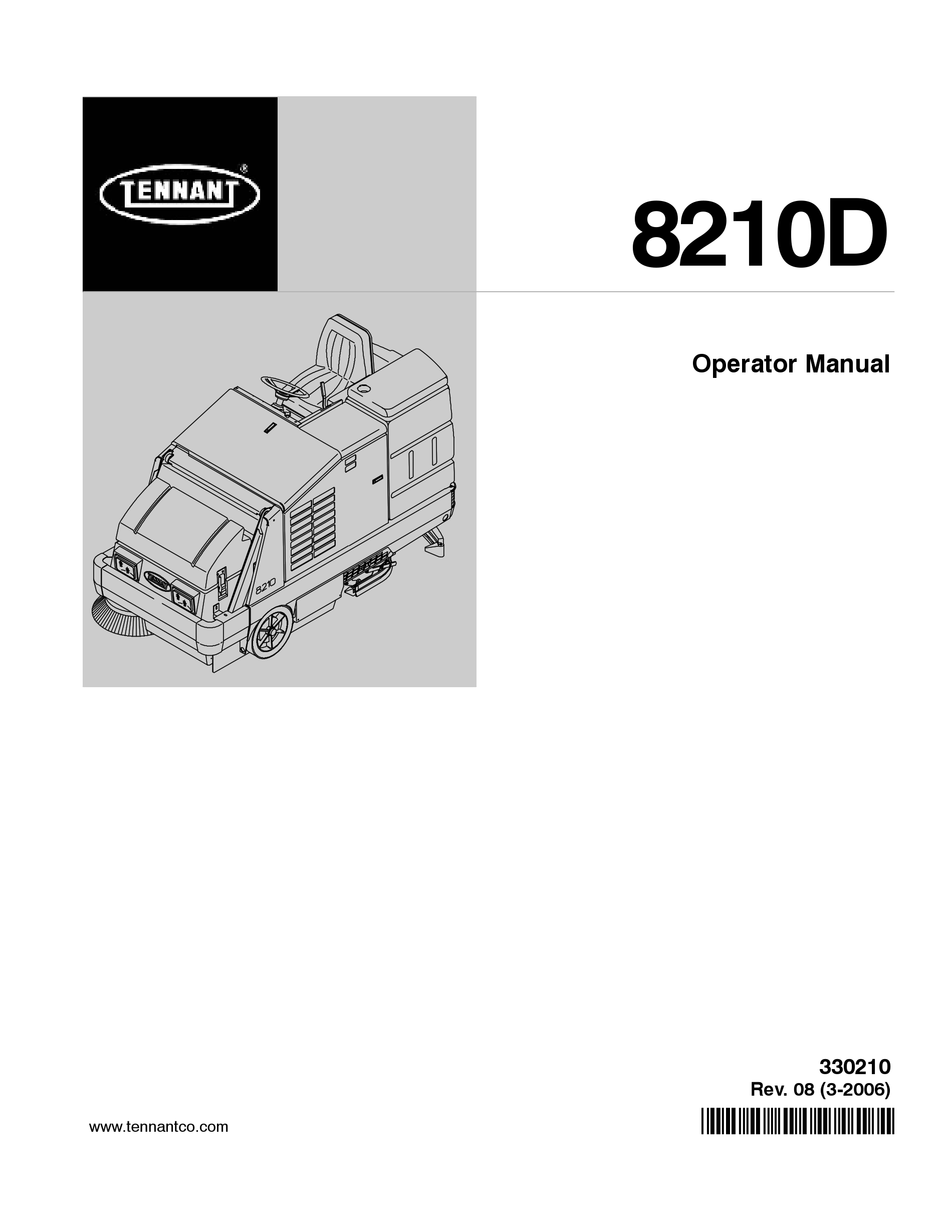

8210D
Operator Manual
330210
Rev. 08 (3-2006)
*330210*
www.tennantco.com
Home
Find... Go To..

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 8210D and is the answer not in the manual?

Questions and answers

Related Manuals for Tennant 8210D

Summary of Contents for Tennant 8210D

  • Page 1 8210D Operator Manual 330210 Rev. 08 (3-2006) *330210* www.tennantco.com Home Find... Go To..

  • Page 2: Machine Data

    Engine exhaust from this product contains chemicals known to the State of California to cause cancer, birth defects, or other reproductive harm. MAXPRO and ES are United States registered trademarks of the Tennant Company Thermo Sentry is a United States trademark of Tennant Company.

  • Page 3: Table Of Contents

    ..... THERMO SENTRY ....8210D 330210 (6- -04) Home Find... Go To..
  • Page 4 ....STORING MACHINE ....8210D 330210 (6- -04) Home Find... Go To..

  • Page 5: Safety Precautions

    Do not pick up. 5. Before leaving or servicing machine: - - Stop on level surface. - - Set parking brake. - - Turn off machine and remove key. 8210D 330210 (9- -05) Home Find... Go To..

  • Page 6: D 330210 (6

    Keep area well ventilated. - - Use cardboard to locate leaking hydraulic fluid under pressure. - - Use Tennant supplied or approved replacement parts. 7. When loading/unloading machine onto/off truck or trailer: - - Turn off machine.
  • Page 7 PANEL OF THE OPERATOR COMPARTMENT. FLAMMABLE SPILLS LABEL - - LOCATED ON THE SIDE PANEL OF THE OPERATOR COMPARTMENT. 351551 ENGINE FAN AND BELT LABEL - - LOCATED ON THE RADIATOR SHROUD. 8210D 330210 (3- -06) Home Find... Go To..
  • Page 8 COMPARTMENT. 351551 HOPPER SUPPORT BAR LABEL - - LOCATED HOPPER LIFT ARMS LABEL - - LOCATED ON THE HOPPER SUPPORT BAR AND ON ON BOTH HOPPER LIFT ARMS. BOTH HOPPER LIFT ARMS. 8210D 330210 (1- -98) Home Find... Go To..

  • Page 9: Operation

    Tennant representative. - Order parts and supplies directly from your authorized Tennant representative. Use the parts manual provided when ordering parts. - After the first 50 hours of operation, follow the recommended procedures stated in the MAINTENANCE CHART.

  • Page 10: Machine Components

    H. Sweeping brush access door Hopper cover J. Hopper dust filter K. Solution tank L. Recovery tank M. Main sweeping brush N. Side brush O. Scrub brushes P. Detergent tank (option) Q. Scrub head 8210D 330210 (1- -98) Home Find... Go To..

  • Page 11: Symbol Definitions

    Main brush down and on Scrub brush edge clean Main brush up and off Scrub brushes down and on Charging system Rear squeegee down and vacuum on Engine oil pressure Engine Engine water temperature Variable pressure 8210D 330210 (6- -04) Home Find... Go To..

  • Page 12: Home Find... Go To

    Circuit breaker 8 Glow plugs (preheat) Steering tilt 50 hour required maintenance interval 100 hour required maintenance interval 200 hour required maintenance interval 400 hour required maintenance interval 800 hour required maintenance interval 8210D 330210 (1- -98) Home Find... Go To..

  • Page 13: Controls And Instruments

    P. Main brush down pressure knob Q. Side brush down pressure handle R. Charging system light S. Engine oil pressure light T. Engine water temperature light U. Hopper temperature light - - Thermo Sentry 8210D 330210 (3- -06) Home Find... Go To..

  • Page 14: Operation Of Controls

    Reverse: Press the bottom of the directional pedal with the heel of your foot. Neutral: Take your foot off the directional pedal and it will return to the neutral position. 8210D 330210 (1- -98) Home Find... Go To..

  • Page 15: Brake Pedal

    Start: Turn the key all the way clockwise. Release the key as soon as the engine starts. Stop: Turn the key counter-clockwise. 8210D 330210 (1- -98) Home Find... Go To..

  • Page 16: Steering Wheel

    STEERING COLUMN TILT LEVER The steering column tilt handle controls the angle of the steering wheel. Adjust: Pull out the tilt handle, then move the wheel to the desired position and release the tilt handle. 8210D 330210 (6- -04) Home Find... Go To..

  • Page 17: Scrub Switch

    NOTE: The scrub head will raise when the directional pedal is in the neutral position. The rear squeegee will raise when the directional pedal is in the reverse position. 8210D 330210 (6- -04) Home Find... Go To..

  • Page 18: Sweep Switch

    NOTE: If the hopper is raised, even slightly, the raised hopper icon will replace the sweep icon on the control panel display and the sweeping operations will not start. 8210D 330210 (1- -98) Home Find... Go To..

  • Page 19: Hourmeter

    Refill the fuel tank as soon as possible. LPG powered machine: The fuel gauge is located 12 : 16 PM on the top of the LP tank. 0021 351650 8210D 330210 (1- -98) Home Find... Go To..

  • Page 20: Hopper Lever

    The main brush down pressure knob changes the amount of contact the main brush has with the surface being swept. Increase: Turn the main brush down pressure knob counter--clockwise. Decrease: Turn the main brush down pressure knob clockwise. 8210D 330210 (1- -98) Home Find... Go To..

  • Page 21: Side Brush Down Pressure Handle

    By pressing the TENNANT logo, the operator can cycle the control panel display through the different function screens. Each function screen allows the operator to enable or disable different sweeping or scrubbing functions.

  • Page 22: Setting The Display Clock

    OPERATION SETTING THE DISPLAY CLOCK 1. Turn the machine off. 2. Press and hold the TENNANT logo button while turning the ignition key to the ON position. DO NOT start the engine. The ON position is between the STOP and START positions.

  • Page 23: Maintenance Mode

    Each time the required maintenance function is performed, the timer for that function should be reset. 12 : 16 PM 0021 351656 8210D 330210 (1- -98) Home Find... Go To..

  • Page 24: Resetting The Maintenance Timers

    OPERATION RESETTING THE MAINTENANCE TIMERS 1. Turn the machine off. 2. Press and hold the TENNANT logo button while turning the ignition key to the ON position. DO NOT start the engine. The ON position is between the STOP and START positions.

  • Page 25: Disabling The Maintenance Mode

    1. Turn the machine off. 2. Press and hold the TENNANT logo button while turning the ignition key to the ON position. DO NOT start the engine. The ON position is between the STOP and START positions.

  • Page 26: Operating Lights Switch

    (0) Off: Press the middle of the switch. (2) High: Press the bottom of the switch. Use this flow rate for rough floors and heavy or compacted dirt. 8210D 330210 (1- -98) Home Find... Go To..

  • Page 27: Manual Flow Valve

    The valve can be adjusted to dispense either more or less solution. Contact your TENNANT representative with solution flow rate questions. Maximum flow: Turn the flow lever to the horizontal position.

  • Page 28: Hopper Door Switch

    NOTE: The filter shaker will activate automatically for a short time each time the sweeping 351648 operations are stopped. The vacuum system will not operate while the filter shaker is operating. 8210D 330210 (1- -98) Home Find... Go To..

  • Page 29: Edge Scrub Switch

    NOTE: The rear squeegee will raise and the scrubbing vacuum fan will shut off after a short delay when the scrubbing operations are shut off. 8210D 330210 (1- -98) Home Find... Go To..

  • Page 30: Es Switch (Option)

    On: Press the ES switch. The indicator light next to the switch will illuminate. Off: Press the ES switch. The indicator light next to the switch will go out. 351647 8210D 330210 (6- -04) Home Find... Go To..

  • Page 31: Detergent Pump Switch (Option)

    To return the engine to idle speed from the fast engine speed, press the engine speed switch. NOTE: All sweeping and scrubbing functions while stop automatically if idle speed is selected while in fast engine speed. 8210D 330210 (1- -98) Home Find... Go To..

  • Page 32: Charging System Light

    The engine water temperature light will illuminate when the temperature of the engine coolant is more than 107_ C (225_ F). If the light illuminates stop the machine immediately, then find the problem and have it corrected. 8210D 330210 (11- -98) Home Find... Go To..

  • Page 33: Hopper Temperature Light

    To clean the filter, press the filter shaker switch. If the clogged filter light remains lit, manually clean the hopper dust filter. See HOPPER DUST FILTER in the MAINTENANCE section of this manual. 8210D 330210 (6- -04) Home Find... Go To..

  • Page 34: Hopper Door Closed Light (Option)

    If the light illuminates stop the machine immediately, then change the hydraulic filter and hydraulic fluid as soon as possible. HORN BUTTON The horn button operates the horn. Sound: Press the button. 8210D 330210 (1- -98) Home Find... Go To..

  • Page 35: Circuit Breakers

    Never substitute higher value fuses than specified. The fuse is located in the operator compartment. Remove the circuit breaker panel to gain access to the fuse. Fuse Rating Circuit Protected FU-1 40 A Glow plugs 8210D 330210 (6- -04) Home Find... Go To..

  • Page 36: Operator Seat

    The seat position lever adjusts the seat forward or backward. Adjust: Pull the lever outward and slide the seat to the desired position, then release the lever. 8210D 330210 (1- -98) Home Find... Go To..

  • Page 37: Hopper Support Bar

    LATCHES The solution tank cover and the side and top engine doors are secured with latches. Open: Press the raised part of the latch. Close: Press the flat part of the latch. 8210D 330210 (1- -98) Home Find... Go To..

  • Page 38: How The Machine Works

    When sweeping and scrubbing is finished, clean the hopper dust filter, empty the hopper, and drain and clean the recovery tank. If using the ES system, drain and clean the solution tank, and clean the ES filter. 8210D 330210 (6- -04) Home Find... Go To..

  • Page 39: Pre-Operation Checklist

    ES filter. Rinse level sensors. - Check the brakes and steering for proper operation. - Check the fuel level - Empty the debris hopper. - Check the service records to determine maintenance requirements. 8210D 330210 (6- -03) Home Find... Go To..

  • Page 40: Starting The Machine

    NOTE: Do not operate the starter motor for more than 10 seconds at a time or after the engine has started. Allow the starter to cool between starting attempt or damage to the starter motor may occur. 8210D 330210 (1- -98) Home Find... Go To..
  • Page 41 Provide adequate ventilation. Consult with your regulatory authorities for exposure limits. Keep engine properly tuned. 9. Release the machine parking brake. 10.Drive the machine to the area to be cleaned. 8210D 330210 (1- -98) Home Find... Go To..

  • Page 42: Sweeping, Scrubbing, And Brush Information

    Polypropylene and Wire 8-double row main sweep brush -- The wire bristles loosen slightly packed soilage and heavier debris. The polypropylene bristles sweep up the debris with excellent hopper loading. 8210D 330210 (1- -98) Home Find... Go To..
  • Page 43 Red buffing pads -- Use these pads for light--duty scrubbing on industrial floor surfaces. White polishing pads -- Use these pads for surface cleaning of highly--polished or burnished floors. 8210D 330210 (1- -98) Home Find... Go To..

  • Page 44: Sweeping

    351648 3. Sweep as needed. 8210D 330210 (1- -98) Home Find... Go To..

  • Page 45: Stop Sweeping

    12 : 16 PM 0021 351662 8210D 330210 (1- -98) Home Find... Go To..

  • Page 46: Emptying The Hopper

    The indicator light next to the switch will illuminate and the hopper door icon will indicate the hopper door is open. 6. Allow all of the debris in the hopper to fall into the debris container. 351659 8210D 330210 (1- -98) Home Find... Go To..
  • Page 47 FOR SAFETY: When using machine, use ??????? care when reversing machine. 351663 9. Push the hopper lever forward to lower the hopper. 8210D 330210 (1- -98) Home Find... Go To..

  • Page 48: Filling The Tanks

    For specific recommendations, contact your TENNANT representative. WARNING: Flammable materials can cause an explosion or fire. Do not use flammable materials in tank(s). 8210D 330210 (12- -00) Home Find... Go To..
  • Page 49 (to the top of the ES filter). NOTE: If you DO NOT want to use the ES system, DO NOT put water in the recovery tank. Turn the ES switch OFF. 7. Close the tank cover. 8210D 330210 (1- -98) Home Find... Go To..

  • Page 50: Scrubbing

    Off (0): Press the middle of the switch. High (2): Press the bottom of the switch. Use this flow rate for rough floors and heavy or compacted dirt. 3. Press the scrub switch to start the scrubbing operations. 351647 8210D 330210 (1- -98) Home Find... Go To..
  • Page 51 (three downward arrows). NOTE: The scrub head will raise when the directional pedal is in the neutral position. The rear squeegee will raise when the directional pedal is in the reverse position. 8210D 330210 (9- -99) Home Find... Go To..
  • Page 52 ES switch is off. 7. Drive the machine forward and scrub as required. WARNING: Flammable materials or reactive metals can cause explosion or fire. Do not pick up. 351647 8210D 330210 (12- -00) Home Find... Go To..

  • Page 53: Double Scrubbing

    The 12 : 16 PM engine speed will remain in the fast speed. 0021 Continue driving the machine forward until the vacuum fan shuts off. 351662 8210D 330210 (1- -98) Home Find... Go To..

  • Page 54: Draining And Cleaning The Tanks

    1. Stop scrubbing. 2. Drive the machine next to an appropriate disposal site. 3. Shut the engine off. 4. Set the parking brake. 8210D 330210 (1- -98) Home Find... Go To..
  • Page 55 DO NOT allow any water to enter the vacuum fan air intake tube at the top of the tank. 9. Remove the large drain cap and flush out the bottom on the recovery tank. 8210D 330210 (1- -98) Home Find... Go To..
  • Page 56 ES pump by raising the float inside the recovery tank for 30 to 60 seconds. 14. Lower the recovery tank cover. 15. Shut the engine off. 16. Drain the recovery tank. 17. Replace the drain hoses and drain caps. 8210D 330210 (1- -98) Home Find... Go To..

  • Page 57: Stop The Machine

    1. Stop sweeping and scrubbing. 2. Take your foot off the directional pedal. Step on the brake pedal. 3. Shut the engine off. Remove the switch key. 4. Set the machine parking brake. 8210D 330210 (6- -04) Home Find... Go To..

  • Page 58: Post-Operation Checklist

    ES filter. Rinse level sensors. - Check the brakes and steering for proper operation. - Check the fuel level - Empty the debris hopper. - Check the service records to determine maintenance requirements. 8210D 330210 (6- -03) Home Find... Go To..

  • Page 59: Engaging Hopper Support Bar

    1. Set the machine parking brake. FOR SAFETY: When starting machine, keep foot on brake and directional pedal in neutral. 2. Start the engine. 3. Pull the hopper lever backward until the hopper reaches its maximum height. 8210D 330210 (1- -98) Home Find... Go To..
  • Page 60 WARNING: Raised hopper may fall. Engage hopper support bar. 5. Slowly lower the hopper so the hopper support bar rests against the bar stop. 6. Shut the engine off. 8210D 330210 (11- -98) Home Find... Go To..

  • Page 61: Disengaging Hopper Support Bar

    3. Put the support bar in its storage position. WARNING: Lift arm pinch point. Stay clear of hopper lift arms. 4. Lower the hopper. 5. Shut the engine off. 8210D 330210 (1- -98) Home Find... Go To..

  • Page 62: Operation On Inclines

    When transporting the machine on a trailer or in a truck, be sure to set the parking brake and block the tires to prevent the machine from rolling. 8210D 330210 (1- -98) Home Find... Go To..

  • Page 63: Machine Troubleshooting

    Vacuum hose to rear squeegee Reconnect disconnected Vacuum--fan--to--recovery--tank-- Replace hose hose damaged Too much solution flow for floor Adjust manual flow control valve conditions / machine speed to reduce total solution flow 8210D 330210 (1- -98) Home Find... Go To..
  • Page 64 ES system does not fill solution Clogged solution pump or lines. Flush ES system. tank. ES float stuck. Clean floats of debris. Clogged ES pump filter. Clean filter. Water levels too low in tanks. Add water. 8210D 330210 (1- -98) Home Find... Go To..
  • Page 65 OPERATION 8210D 330210 (1- -98) Home Find... Go To..

  • Page 66: Maintenance

    Change oil and filter element Main sweep brush Rotate end-for-end Clean core exterior 100 hours 100 hours Radiator Radiator Check coolant level Engine belts Check belt tension Hopper dust filter Check for damage, clean or replace 8210D 330210 (6- -04) Home Find... Go To..
  • Page 67 . . . Water and permanent-type ethylene glycol anti-freeze, --34_ C (--30_ F) . . . Special lubricant, Lubriplate EMB grease (Tennant part number 01433--1) NOTE: More frequent intervals may be required in extremely dusty conditions. 8210D 330210 (6- -04) Home Find...

  • Page 68: Lubrication

    The rear wheel support pivots the rear wheel. The support has two grease fittings for the bearings. The rear wheel support bearings must be lubricated every 200 hours of operation. Use Lubriplate EMB grease (Tennant part number 01433--1). 8210D 330210 (9- -99) Home...

  • Page 69: Front Wheel Bearings

    The hopper lift arms have two grease fittings, one on each lift arm at the top pivot. The lift arms should be lubricated every 200 hours of operation. Use Lubriplate EMB grease (Tennant part number 01433--1). SCRUB HEAD DRAG LINK ARMS...

  • Page 70: Hydraulics

    Replace the filter element every 800 hours of operation. The reservoir has a built-in strainer outlet that filters hydraulic fluid before it enters the system. Replace the strainer every 800 hours of operation. 8210D 330210 (9- -05) Home Find... Go To..

  • Page 71: Hydraulic Fluid

    The quality and condition of the hydraulic fluid play a very important role in how well the machine operates. Tennant’s hydraulic fluid is specially selected to meet the needs of Tennant machines. Tennant’s hydraulic fluids provide a longer life for the hydraulic components. There are two fluids available for different temperature ranges: Tennant part no.

  • Page 72: Hydraulic Hoses

    PROPELLING MOTOR Torque the shaft nut to 508 Nm (375 ft lb) lubricated, 644 Nm (475 ft lb) dry after the first 50-hours of operation, and every 800 hours there after. 8210D 330210 (6- -04) Home Find... Go To..

  • Page 73: Engine

    Reset the air filter indicator by pushing the reset button on the end of the indicator after replacing the air filter element. 8210D 330210 (3- -06) Home Find... Go To..

  • Page 74: Air Filter

    Replace the air filter element only when the air filter indicator shows restriction in the air intake system. Do not remove the air filter element from the housing unless it is restricting air flow. 02492 8210D 330210 (11- -98) Home Find... Go To..

  • Page 75: Fuel Filter

    The battery is located at the front of the engine compartment. After the first 50 hours of operation, and every 800 hours after that, clean and tighten the battery connections. FOR SAFETY: When servicing machine, avoid contact with battery acid. 8210D 330210 (6- -04) Home Find... Go To..

  • Page 76: Belts And Chains

    3.81 cm  0.0076 mm (1.5 in  0.030 in). When adjusting the accessory pump belt tension, measure only the spring and not the washers at either end. 8210D 330210 (1- -98) Home Find... Go To..

  • Page 77: Static Drag Chain

    The chain is attached to the machine directly in front of the scrub head and brushes. Make sure the chain is touching the floor at all times. 8210D 330210 (6- -04) Home Find... Go To..

  • Page 78: Debris Hopper

    The standard dust filter can also be rinsed, but the filter will degrade with each rinsing and should be replaced after rinsing five times. NOTE: Be sure the dust filter is dry before reinstalling it in the machine. 8210D 330210 (3- -02) Home Find... Go To..

  • Page 79: Removing Hopper Dust Filter

    If there is a fire in the hopper, the Thermo Sentry stops the vacuum fan and cuts off the air flow. The Thermo Sentry resets itself automatically after cooling down. 8210D 330210 (6- -04) Home Find... Go To..

  • Page 80: Scrub Head

    Sweeping performance often becomes less effective as the bristle length is worn. Replace the main sweep brush when the remaining bristles measure between 40 mm (1 in) and 50 mm (2 in) in length. 8210D 330210 (6- -03) Home Find... Go To..

  • Page 81: Replacing Main Sweep Brush

    The latch is located just to the rear of the door and must be pushed upward to release the door. 4. Remove the main brush idler plate by turning the idler plate retainer nut counter--clockwise. 8210D 330210 (1- -98) Home Find... Go To..
  • Page 82 9. Close and latch the main brush door, then swing the scrub head guard arm back in place and replace the pin. Install the pin from the bottom up. 8210D 330210 (1- -98) Home Find... Go To..

  • Page 83: Checking And Adjusting Main

    5. Stop the main sweep brush. 6. Drive the machine off the test area. 7. Observe the width of the brush pattern. The proper brush pattern width is 50 to 65 mm (2.0 to 3.0 in). 00582 8210D 330210 (1- -98) Home Find... Go To..
  • Page 84 Tighten the bolts. C. Check the main sweep brush pattern and readjust as necessary. 8210D 330210 (1- -98) Home Find... Go To..

  • Page 85: Side Brush

    Adjust the side brush pattern using the side brush down pressure knob. Turn the knob counter-clockwise to increase the brush contact with the sweeping surface, and clockwise to decrease the brush contact with the sweeping surface. 8210D 330210 (11- -98) Home Find... Go To..

  • Page 86: Replacing Side Brush

    9. Secure the pin by clipping the pin keeper over the end of the pin. 10. Disengage the hopper support bar and lower the hopper. 11. Adjust the side brush pattern with the side brush down pressure knob. 8210D 330210 (1- -98) Home Find... Go To..

  • Page 87: Scrub Brushes

    Secure each pad onto the driver with a pad retaining plug. Install the brush drivers in place of the normal scrubbing brushes. Use the normal amount of detergent and water. 8210D 330210 (1- -98) Home Find... Go To..

  • Page 88: Replacing The Scrub Brushes

    Recovered solution collects in the recovery tank. The recovery tank should be drained and cleaned daily, or when the recovery tank full light comes ES option: The ES filter inside the tank should be cleaned daily. 8210D 330210 (1- -98) Home Find... Go To..

  • Page 89: Solution Tank

    The deflection of the squeegee blades should be checked daily, or when scrubbing a different type of floor. The leveling of the squeegee should be checked every 100 hours of machine operation. 8210D 330210 (12- -00) Home Find... Go To..

  • Page 90: Leveling The Rear Squeegee

    The squeegee blade should deflect more at the center and less at the tips. See ADJUSTING REAR SQUEEGEE BLADE DEFLECTION section of this manual. 8210D 330210 (6- -04) Home Find... Go To..

  • Page 91: Adjusting Rear Squeegee Blade Deflection

    6. Start the machine, lower the squeegee and drive the machine forward again to check the squeegee blade deflection. Readjust the squeegee blade deflection if necessary. 7. Raise the squeegee when finished. 8210D 330210 (12- -00) Home Find... Go To..

  • Page 92: Side Squeegees

    4. Replace or rotate the squeegee blade to allow a new edge to face the front of the machine. 5. Place the squeegee blade over the protrusions of the squeegee frame. 8210D 330210 (12- -00) Home Find... Go To..

  • Page 93: Side Squeegees

    05942 6. Replace the retainer bracket, deflector, clevis pin, and cotter pin. 7. Repeat for the side squeegee on the other side of the scrub head. 8210D 330210 (12- -00) Home Find... Go To..

  • Page 94: Skirts And Seals

    Check the hopper lip skirts for wear or damage daily. Replace the hopper lip skirts when they no longer touch the floor. 8210D 330210 (1- -98) Home Find... Go To..

  • Page 95: Hopper Seals

    The filter seals are located on both sides of the dust filter. They seal the hopper filter to the cover and hopper. Check the seal for wear or damage every 100 hours of operation. 8210D 330210 (1- -98) Home Find... Go To..

  • Page 96: Hopper Vacuum Fan Seal

    100 hours of operation. TANK COVER SEALS Seals are located on the inside of the recovery tank cover and the solution tank cover. Check the seals for wear or damage every 100 hours of operation. 8210D 330210 (1- -98) Home Find... Go To..

  • Page 97: Brakes And Tires

    Torque the rear wheel nuts twice in the pattern shown to 142 to 156 Nm (105 to 115 ft lb) after the first 50-hours of operation, and every 800 hours there after. 8210D 330210 (3- -02) Home Find... Go To..

  • Page 98: Pushing, Towing, And Transporting The Machine

    Turn the bypass valve 90_ from the normal position before pushing or towing the machine. The illustration shows the bypass valve in the pushing or towing position. 8210D 330210 (12- -00) Home Find... Go To..

  • Page 99: Transporting The Machine

    5. Position the machine onto the truck or trailer as far as possible. If the machine starts to veer off the centerline of the truck or trailer, stop and turn the steering wheel to center the machine. 8210D 330210 (12- -00) Home Find... Go To..
  • Page 100 Do not drive the machine off the truck or trailer unless the loading surface is horizontal AND 380 mm (15 in) or less from the ground. 8210D 330210 (12- -00) Home Find... Go To..

  • Page 101: Machine Jacking

    STORING MACHINE Before storing the machine for an extended time, the machine needs to be prepped to lessen the chance of rust, sludge, and other undesirable deposits from forming. Contact Tennant service personnel. 8210D 330210 (12- -00) Home Find... Go To..

  • Page 102: Specifications

    Minimum turning radius, left 0.98 m (38.75 in) Minimum turning radius, right 1.91 m (75.25 in) Maximum rated incline for transport of machine (8_ -- 14%) Maximum rated incline for scrubbing/sweeping (6_ -- 10.5%) 8210D 330210 (3- -06) Home Find... Go To..

  • Page 103: Power Type

    HYDRAULIC SYSTEM System Capacity Fluid Type TENNANT part no. 65869 -- above 7_ C (45_ F) Hydraulic reservoir 25.4 L (6.7 gal) capacity Fill to FULL line only TENNANT part no. 65870 -- below 7_ C( 45_ F) TENNANT part no.

  • Page 104: Machine Dimensions

    SPECIFICATIONS 1395 mm 55 in TOP VIEW 2550 mm 100.5 in 2080 mm 82 in 1083 mm SIDE VIEW 42.6 in 351664 MACHINE DIMENSIONS 8210D 330210 (3- -06) Home Find... Go To..

  • Page 105: Index

    29 Fuel level, 37, 56 ES (option), 28 lubrication, 66 filter shaker switch, 26 oil capacity, 66 fuel level gauge, 17 Oil level, 37, 56 functions, 19 specifications, 101 8210D 330210 (9- -05) Home Find... Go To..
  • Page 106 Horn button, 32 hopper temperature -- Thermo Sentry, 31 Hourmeter, 17 hydraulic filter bypass (option), 32 Hydraulic cooler, Fins, 37, 56 Lights switch operating, 24 Hydraulic filter bypass light (option), 32 operating/hazard, 24 8210D 330210 (9- -05) Home Find... Go To..
  • Page 107 48–50 Scrub head, 78 starting the machine, 38–40 Scrub head drag link arms, 67 stop scrubbing, 51–53 stop sweeping, 43–45 stopping the machine, 55–57 sweeping, 42–44 sweeping, scrubbing & brush info, 40–42 8210D 330210 (9- -05) Home Find... Go To..
  • Page 108 91–93 Transporting machine, 96 Side Squeegees, 90 side, blade replacement, 91–93 Transporting the machine, 97 Static drag chain, 75 Troubleshooting, 61–63 Steering, 37, 56 specifications, 101 Steering column tilt lever, 14 8210D 330210 (9- -05) Home Find... Go To..
  • Page 109 INDEX Vacuum fan switch, sweeping, 25 Valve, solution flow, 25 8210D 330210 (9- -05) Home Find... Go To..
