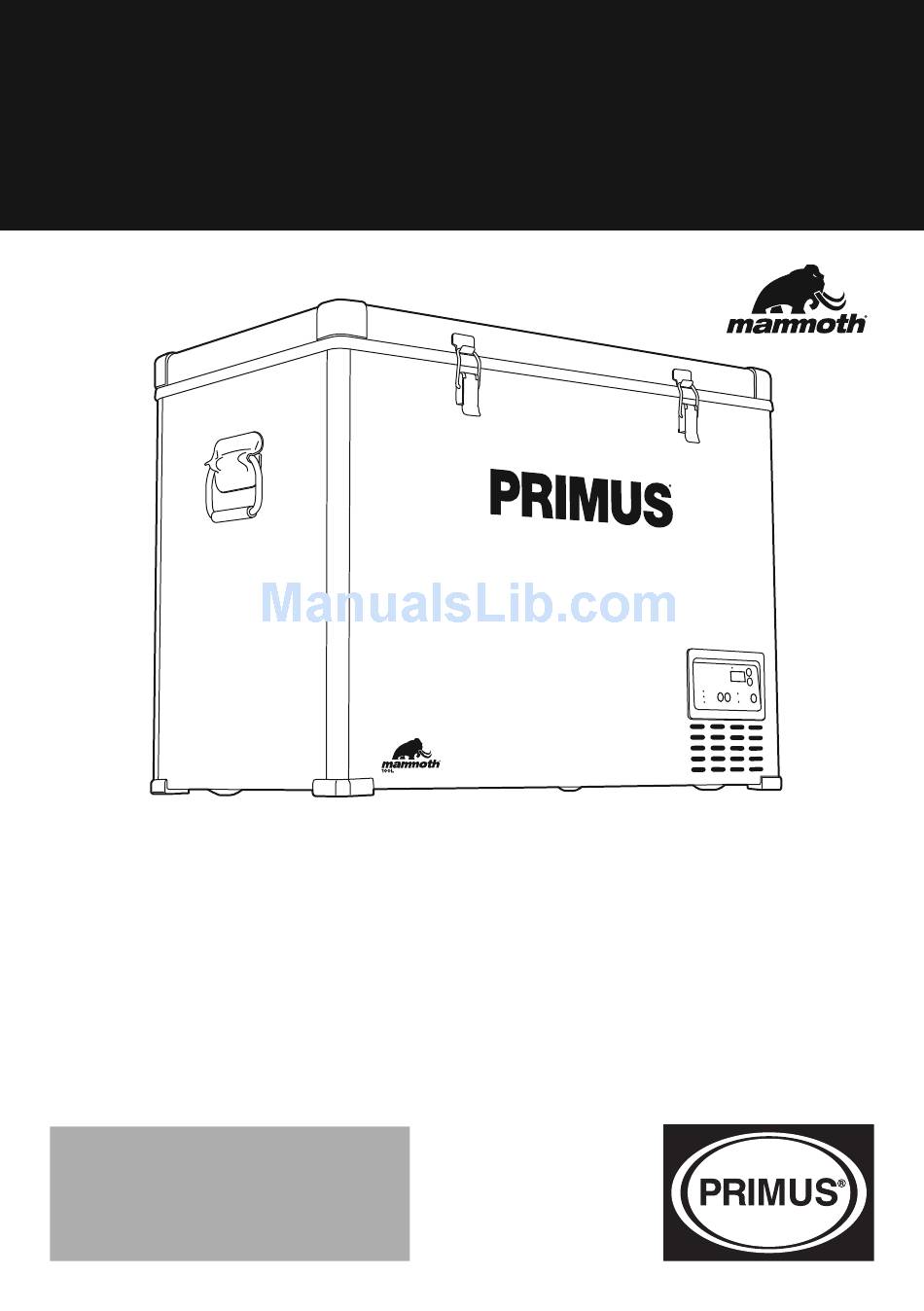

- Page 1 ® PRIMUS Portable Fridge/Freezer User Manual and Product Specifi cations Part No. PRI45LM - 45L PRI60LM - 60L PRI74LM - 74L PRI100LM - 100L PRI130LM - 130L IMPORTANT Read instructions before operation.
- Page 2 Getting to know your Portable Fridge/Freezer IDENTIFICATION 1. Lid Latches Control Panel Carry Handle Power Input Panel 12V/24V DC Power Cable 240V AC Power Cable...
- Page 3 Installation and operation of your Fridge/Freezer It is important that your appliance is installed and operated in accordance with the manufacturer’s instructions to guarantee the performance, effi ciency and operation. • Position the appliance in a safe and secure location. Limit exposure to heat sources or direct sunlight which can affect the unit’s performance and effi ciency.
-
Page 4: Power Management
Power management POWER REQUIREMENTS The Fridge/Freezer is designed to operate on AC and DC voltage inputs. AC input 220-240V AC at 50Hz DC input 12V or 24V DC For optimum performance and effi ciency, it is important that the appliance has a reliable 15A fuse protected DC supply in good condition. -
Page 5: Starting And Operating
100–240V AC mains, even if the 12/24V connection cable is still Power Inlet Panel PRI45LM & PRI60LM attached. The power inlet socket is fi tted with a 15A fuse for protection. -
Page 6: Temperature Controller
Temperature Controller The Temperature Controller provides the ability to set the desired temperature level and displays information on the cabinet and set temperature The electronic controller has been programmed to maintain an average of the set temperature. The compressor will start up when the internal cabinet temperature increases 0.5 to 1.5 degrees above that selected and will run until the temperature is 0.5 to 1.5 degrees below the set temperature. -
Page 7: Using Solar Panels
Fridge/Freezer cannot be connected directly to the solar panels. The appliance must be connected to a suitable DC battery and then the solar panels connected to the battery. We recommend the use of the Primus range of Portable Solar Panel Kits from 60 to 120 watts for use with your Fridge/Freezer. -
Page 8: Tips And Suggestions
Tips and suggestions • Fresh and frozen foods should not be stored together. The coldness from the frozen goods can be transferred to the other produce causing the goods to spoil. It is best to put an insulating layer between these goods. •... -
Page 9: Warranty
It is at the discretion of Primus Australia if a warranty or replacement will be issued once the product has been inspected by a representative and deemed to be a genuine warranty. -
Page 10: Specifications
Specifi cations PRI45LM PRI60LM Gross Capacity Net Weight 22kg 24kg Product Dimensions 691L x 374W x 447Hmm 691L x 374W x 552Hmm Connections AC 220V - 240V : DC 12V/24V Current Draw (average) 4.6A/12V : 2.3A/24V Cooling Range +4 to -18°C... -
Page 11: Troubleshooting
Troubleshooting Problem Remedy Device does not There is no voltage present in The ignition must be switched on in function, LED does the 12/24V socket (cigarette most vehicles to apply current to the not glow lighter) in your vehicle. cigarette lighter. No voltage present in the AC Try using another plug socket. - Page 12 Distributed by CUSTOMER SERVICE 1300 555 197 PRIMUS AUSTRALIA PTY LTD Bundoora Victoria 3083 enquiries@primusaustralia.com.au www.primusaustralia.com.au...
