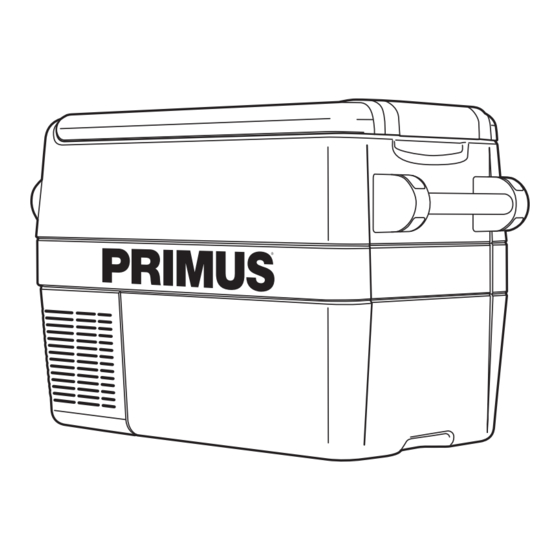

Portable fridge/freezer

Advertisement

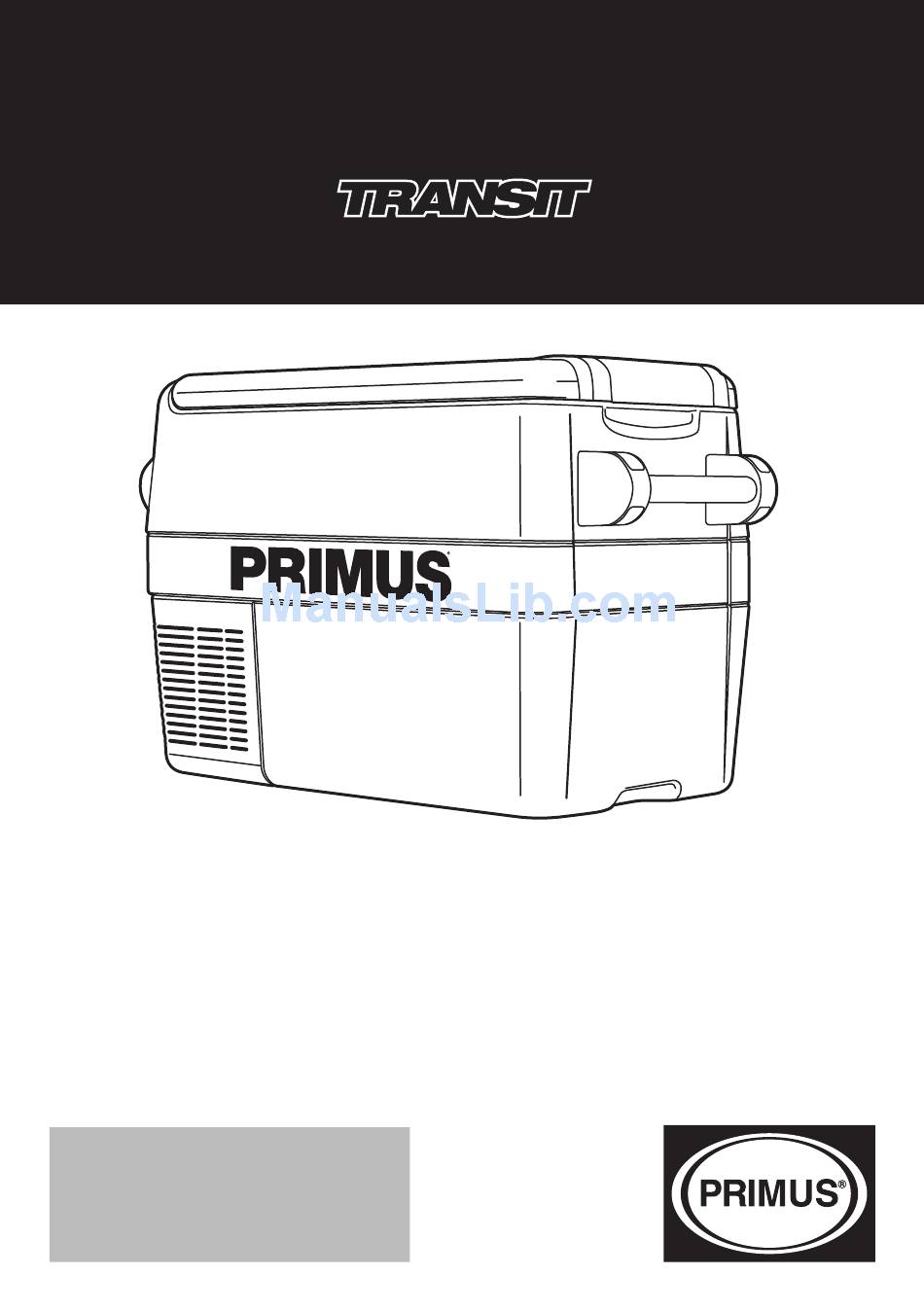

PRIMUS
®
Portable Fridge/Freezer
User Manual and

Product Specifications

Part No.
PRI31LP - 31 Litre
PRI40LP - 40 Litre
PRI50LP - 50 Litre
IMPORTANT
Read instructions before operation.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PRI31LP - 31 Litre and is the answer not in the manual?

Questions and answers

Summary of Contents for Primus PRI31LP - 31 Litre

  • Page 1: Product Specifications

    PRIMUS ® Portable Fridge/Freezer User Manual and Product Specifications Part No. PRI31LP - 31 Litre PRI40LP - 40 Litre PRI50LP - 50 Litre IMPORTANT Read instructions before operation.
  • Page 2 Getting to know your Portable Fridge/Freezer IdeNTIFIcATION 1. Lid Handle Control Panel Carry Handle Power Input Panel 12V/24V DC Power Cable 240V AC Power Cable...
  • Page 3 Installation and operation of your Fridge/Freezer It is important that your appliance is installed and operated in accordance with the manufacturer’s instructions to guarantee the performance, efficiency and operation. • Position the appliance in a safe and secure location. Limit exposure to heat sources or direct sunlight which can affect the unit’s performance and efficiency.
  • Page 4: Power Management

    Power management POWeR ReQUIRemenTs The Fridge/Freezer is designed to operate on AC and DC voltage inputs. AC input 220-240V AC at 50Hz DC input 12V or 24V DC For optimum performance and efficiency, it is important that the appliance has a reliable 15A fuse protected DC supply in good condition.
  • Page 5: Starting And Operating

    Starting and operating dc cOnnecTIOn The unit is equipped with an electronic control system that will prevent polarity reversal. In the event that the battery connection is reversed the DC Power Cable unit will not start or operate. The power inlet socket is fitted with a 15A fuse for protection.
  • Page 6: Temperature Controller

    Temperature controller The Temperature Controller provides the ability to set the desired temperature level and displays information on the cabinet and set temperature The electronic controller has been programmed to maintain an average of the set temperature. The compressor will start up when the internal cabinet temperature increases 0.5 to 1.5 degrees above that selected and will run until the temperature is 0.5 to 1.5 degrees below the set temperature.
  • Page 7: Using Portable Generators

    Fridge/Freezer cannot be connected directly to the solar panels. The appliance must be connected to a suitable DC battery and then the solar panels connected to the battery. We recommend the use of the Primus range of Portable Solar Panel Kits from 60 to 120 watts for use with your Fridge/Freezer.
  • Page 8: Tips And Suggestions

    Tips and suggestions • Fresh and frozen foods should not be stored together. The coldness from the frozen goods can be transferred to the other produce causing the goods to spoil. It is best to put an insulating layer between these goods. •...
  • Page 9: Warranty

    It is at the discretion of Primus Australia if a warranty or replacement will be issued once the product has been inspected by a representative and deemed to be a genuine warranty.
  • Page 10: Specifications

    Specifications PRI31LP PRI40LP PRI50LP Gross Capacity Net Weight 15kg 16kg 17.5kg Product Dimension 585L x 350W x 380Hmm 585L x 350W x 430Hmm 585L x 350W x 515Hmm Connections AC 220V - 240V : DC 12V/24V Current Draw (average) 3.75A/12V : 1.9A/24V Cooling Range +4 to -18°C Power Input...
  • Page 11: Troubleshooting

    Troubleshooting Problem Possible cause Solution Device does not There is no voltage present in The ignition must be switched on in function, Power LED the 12/24V socket (cigarette most vehicles to apply current to the does not glow lighter) in your vehicle. cigarette lighter.
  • Page 12: Customer Service

    Distributed by cUSTOMeR SeRVIce 1300 555 197 PRIMUS AUSTRALIA PTY LTD Bundoora Victoria 3083 enquiries@primusaustralia.com.au www.primusaustralia.com.au...
