Description
Safety and Warning information :
1
3
Warning : This indicates that a potential
5
hazard or injury to you or other persons &
7
to the vehicle can happen, if advice
8
provided is not followed.
9
11
13
Caution : This indicates that a potential
15
hazard which could result in vehicle
16
damage, if advice provided is not
17
followed.
18
19
23
Notice:
24
The description and illustration in this booklet
25
are not to be taken as binding on the
26
manufacturers. The essential features of the
27
29
type described and illustrated herein remaining
30
unaltered. Bajaj Auto Limited reserves the
right to carry out at any moment without
being obliged to bring this booklet upto-date
& to do modifications on the vehicle, parts or
accessories as may be convenient and
necessary.
Advertisement
Table of Contents
Related Manuals for Pulsar NS 150
Summary of Contents for Pulsar NS 150
-
Page 1: Table Of Contents
Table of Contents Description Safety and Warning information : 1. Technical Specifications 2. Identification Data Warning : This indicates that a potential 3. Location of Parts hazard or injury to you or other persons & 4. Steering cum Ignition lock to the vehicle can happen, if advice 5. -
Page 2: Technical Specifications
: 0.2 liters Unusable Reserve : 9.8 + 0.5 : 1 Compression Ratio : 1400 + 100 RPM Idling Speed Dimensions : NS 150 AS 150 : 17 PS at 9500 RPM Length : 2017 mm 2070 mm Max. Net Power : 803.5 mm 803.5 mm... - Page 3 : High Beam - 12V 55W Head Lamp 143 Kg.(For AS 150) Low Beam - 12V 55W Gross Vehicle Weight : 270 kg. (For NS 150) Position Lamp : 3W (2 nos.) 273 kg. (For AS 150) : LED type...
-
Page 4: Identification Data
Engine Number Location On LH Side Crankcase Near Gear Change Lever (Alpha-Numeric - 11 Digits) Frame Number Location (For NS 150) On RH Side of Steering Tube (Alpha-Numeric - 17 Digits) On LH Side of Steering Tube... - Page 5 Identification Data The Frame and Engine serial numbers are used to register the motorcycle. They are the unique alpha-numeric codes to identify your particular vehicle from others of the same model and type. Engine Number Location On LH Side Crankcase Near Gear Change Lever (Alpha-Numeric - 11 Digits) Frame Number Location ( For AS 150) Below Pillion Seat...
-
Page 6: Location Of Parts
Location of Parts (Pulsar NS 150) Grab Handle Pillion Seat Rider Seat Front Brake Lever Rear Number Plate Front Nitrox Disc Rear Brake Shock Absorber Paper oil Rear Brake Filter Pedal... - Page 7 Location of Parts (Pulsar AS 150) Grab Handle Pillion Seat Rider Seat Front Brake Lever Rear Number Plate Front Nitrox Disc Rear Brake Shock Absorber Paper oil Rear Brake Filter Pedal...
-
Page 8: Steering Cum Ignition Lock
Steering cum Ignition Lock Steering cum Ignition Lock : To Lock the Steering : To lock the steering, turn the handle bar to the left side. Push & It has three positions. release the key. Turn the key to “LOCK” position and remove the key. -
Page 9: Fuel Tank Cap / Fuel Tap
Fuel Tank Cap / Fuel Tap Fuel Tap Fuel Tank Cap Fuel Tank Cap Fuel Tap • To open the fuel tank cap, open the flap. Fuel tap has following positions. Insert the key in the lock and turn it clockwise and lift fuel tank cap. -
Page 10: Speedometer Details
Speedometer Details Speedometer display will work when, only both Low Battery Indicator : It indicates battery needs Ignition switch & kill switch are in ‘ON’ position. charging. 1. Fuel Level Indicator: It shows fuel level in fuel tank. 7. Low Oil Pressure Indicator ( ) : It blinks when engine oil pressure is low. - Page 11 Speedometer Details Speedometer Details Engine Over Rev Indicator : It glows when engine 13. Digital Clock : It indicates time in HR : M (AM/PM) 14. Speedometer: Vehicle speed will be displayed in RPM crosses 9500 RPM. digital form in Km / Hr. 11.
-
Page 12: Speedometer Setting
Speedometer Setting Service Reminder TRIP1/2 Mode 1. Trip Meter Reset : 2. Service Reminder Reset ( • Mode & Set push button is provided for selecting & • ‘Wrench’ symbol glows when ODO meter reading resetting ‘ODO/TRIP1/TRIP2’. LHS part of speedo reached to set Kms. - Page 13 Speedometer Setting 1. Press 'Mode' push button TRIP1 Mode selected for less than 2 sec. 2. Press 'Mode' & 'Set' ‘:’ stops blinking push button together Digits start blinking for more than 2 sec. Press 'Mode' button for Hour digits will TRIP1/2 less than 1 sec.
-
Page 14: Control Switches
Control Switches Left Handle Bar Switches C. Horn Button : ( ) Press button for sounding horn. A. High/Low Switch : When headlight is ON, D. Pass Switch : Press the switch to flash High or Low beam can be selected with the head light. - Page 15 Control Switches F. Starter Button : Starter button operates the electric starter when clutch lever is depressed with transmission in any gear. It is recommended to start the engine with the transmission in neutral. G. Engine Kill Switch : The engine kill switch is for emergency use.
-
Page 16: Rear Seat / Tool Kit
Rear Seat / Tool Kit Tool Kit Removal of Rear Seat Tool Kit Location • Insert Key into lock (A) • It is located below the ‘Rear seat’. • Turn the key clock wise. • 2 rubber straps are provided to hold the •... -
Page 17: Front Seat / Battery
Front Seat / Battery Removal of Front Seat Battery • First remove ‘Rear seat’. • It is located below ‘Front seat’. • Remove ‘Front seat’ mounting bolts (B). Battery details are given in ‘Battery • Pull back rear end of ‘Front seat’. Maintenance’... -
Page 18: Fitment Of Front & Rear Seat
Fitment of Front & Rear Seat Front seat lug & bracket Fitment of ‘Front Seat’ Fitment of ‘Rear Seat’ • Match the lugs of ‘Front seat’ (A) with • First make sure ‘Front seat’ is fitted chassis bracket (B). properly. •... -
Page 19: Daily Safety Checks
Daily Safety Checks Before riding motorcycle be sure to check • Brake Fluid level above MIN mark following items. Please give proper importance provided on reservior, applicable to disc to these checks and perform all of them brake vehicle. before riding motorcycle. •... -
Page 20: How To Ride Your Bike
How to Ride Your Bike 1. Starting The Engine : Wait 15 sec. between each operation of the starter which will facilitate battery to recover. • Turn the fuel tap knob to ‘ ’ or ‘ ’ position. Note : The motorcycle is equipped with a starter •... - Page 21 How to Ride Your Bike 4. Braking : • Close the throttle completely, leaving the clutch engaged (except where shifting gears) so that the engine braking will help slow down the motorcycle. • Shift down one gear at a time so that you are in Neutral when you come to a complete Gear shifting stop.
- Page 22 How to Ride Your Bike 6. Parking the Vehicle : 7. Running IN Proper running-in is important for better life & 6.1 Parking using center stand. trouble free performance of the vehicle. • Support the motorcycle on a firm level •...
- Page 23 How to Ride Your Bike Fuel Saving Tips : Ensure following maintenance points to get optimum performance from your bike. A well maintained vehicle and good driving can contribute a lot to the saving of feul. Fuel Check fuel lines & connections Following are a few simple fuel saving tips.
-
Page 24: Safe Riding Tips
Safe Riding Tips Safe Riding Tips • Drive cautiously. Start early & reach your destination safely. • Always wear Helmet while riding. Your helmet should conform to appropriate Safety standards. • Always carry vehicle registration & insurance papers, and a valid driving licence with you. •... -
Page 25: Engine Oil
Engine Oil Recommended Engine Oil: Model Recommended Engine oil Grade Pulsar SAE 20W50 API ‘SL’, or JASO ‘MA’ NS/AS A : Oil Filler • Engine oil replacement frequency : 1 service & then every 5,000 Km. B : Oil Level •... -
Page 26: Wheels - Tube Less Tyre

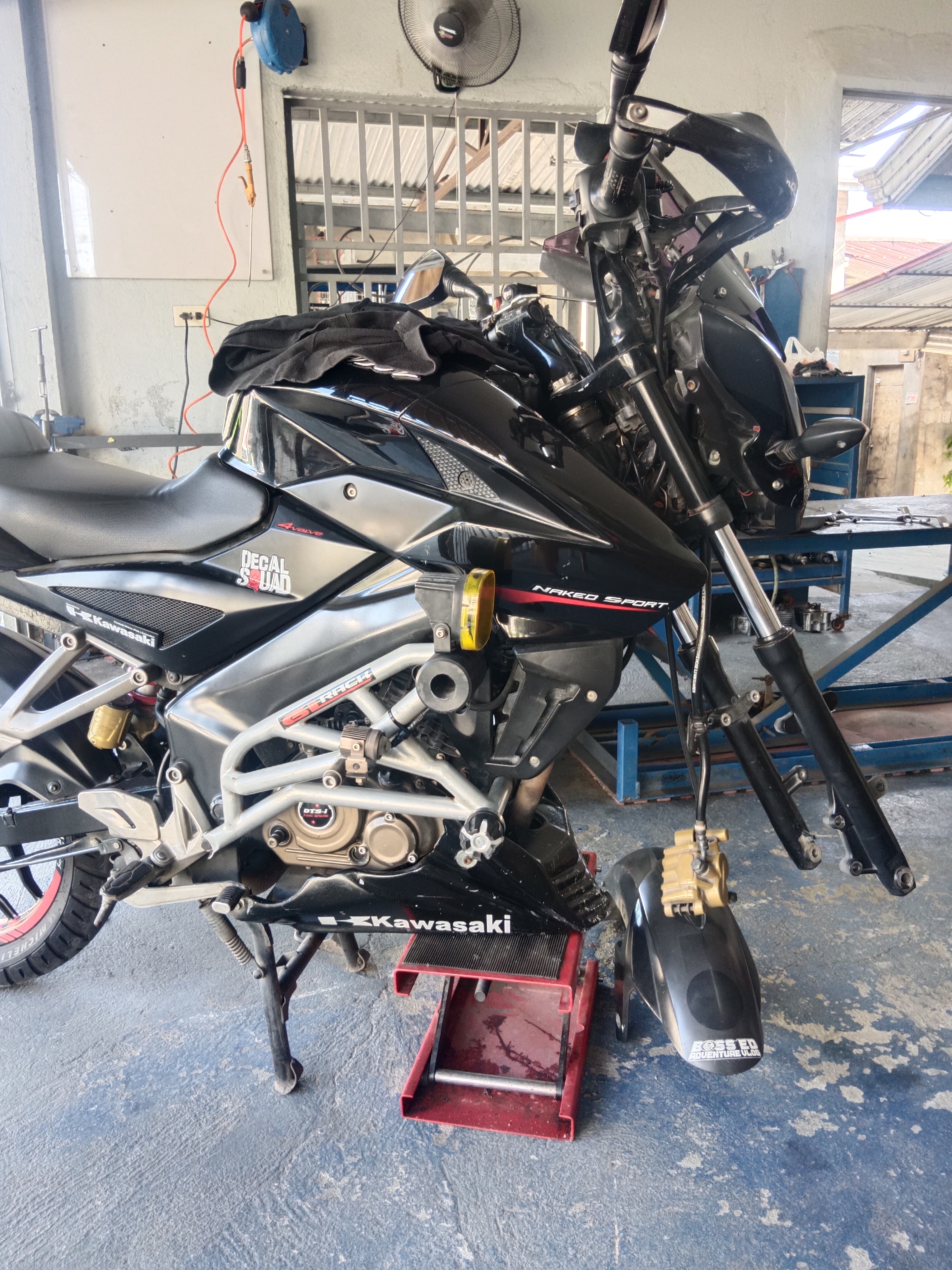

25 PSI removal of tyre. The tyre side walls in contact with wheel rim seals air. Rear (Solo) 28 PSI Pulsar 150 NS/AS Removing Front Wheel : Rear (with Pillion) 32 PSI • Park vehicle perpendicular to the ground on level surface •... -
Page 27: Battery
Battery • It is always recommended to hand over the same to an Authorised battery / Bajaj dealer for proper disposal. • When low battery icon pops-up on speedometer display, it is advised to get in touch with Bajaj dealer & get it charged immediately. -
Page 28: Periodic Maintenance Information
Periodic Maintenance Information Spark Plug Drive Chain Slackness • Chain slackness will have to be adjusted • Remove spark plugs by using plug whenever required. spanner. • Std. Chain slackness 20 ~ 25 mm. • Clean the spark plugs. • Marking on chain adjusters should be •... - Page 29 Periodic Maintenance Information Drive Drive Chain Chain Cleaning Lubrication Drive chain must be cleaned & lubricated as Method of O-ring Chain Lubrication : per periodic maintenance schedule. • Park vehicle perpendicular to the ground on level surface as mentioned in page no. 21 (6.1). Clean Drive Chain (O-ring type ) the chain by using lint free cloth (If excessive •...
-
Page 30: Brake Fluid
Brake Fluid Front Brake Fluid Reservior Front & Rear Brake Fluid Level Brake Fluid Replacement • Front brake fluid reservior is located on RH • Check & Adjust brake fluid level in every side of Handle bar. service. • Rear brake fluid reservior is located behind •... -
Page 31: Periodic Maintenance & Lubrication Chart
Periodic Maintenance & Lubrication Chart RECOMMENDED FREQUENCY Remarks Operation Servicing 4500 9500 14500 19500 24500 29500 5000 10000 15000 20000 25000 30000 Ensure to prevent water entry in Clean the vehicle with water wash & dry Petrol tank, Silencer & electrical completely parts.Use caustic free detergent for washing. - Page 32 Periodic Maintenance & Lubrication Chart RECOMMENDED FREQUENCY Remarks Operation Servicing 4500 9500 14500 19500 24500 29500 5000 10000 15000 20000 25000 30000 CL,L,A CL,L CL,L CL,L CL,L CL,L CL,L CL,L Customer to apply OKS chain Sealed Drive chain cleaning & lubrication lube spray @ every 500 kms Check &...
- Page 33 Periodic Maintenance & Lubrication Chart RECOMMENDED FREQUENCY Remarks Operation Servicing 9500 14500 19500 24500 29500 4500 5000 10000 15000 20000 25000 30000 C,A C,A Steering play Use recommended WD40 Ignition switch barrel cleaning & handle bar C,CL C,CL C,CL C,CL C,CL C,CL C,CL C,CL spray control switches contacts cleaning,...
- Page 34 Periodic Maintenance & Lubrication Chart RECOMMENDED FREQUENCY Subsequent Operation Servicing 4500 19500 24500 29500 9500 14500 5000 10000 15000 20000 25000 30000 Ideal Speed / CO % C,A C,A * It is strongly recommended to use specified grade only , In case of any other engine oil of same specifications is used the frequency would be every 5000 kms ** As applicable to model .
-
Page 35: Non Use Maintenance
Non-Use Maintenance Non-use maintenance is necessary if a vehicle • Fill 10% excess air pressure in both wheels. • Do not apply oil on front brake disc, to remains off road for a longer duration (more prevent rusting. If the front brake disc rusts than 15 days**).
